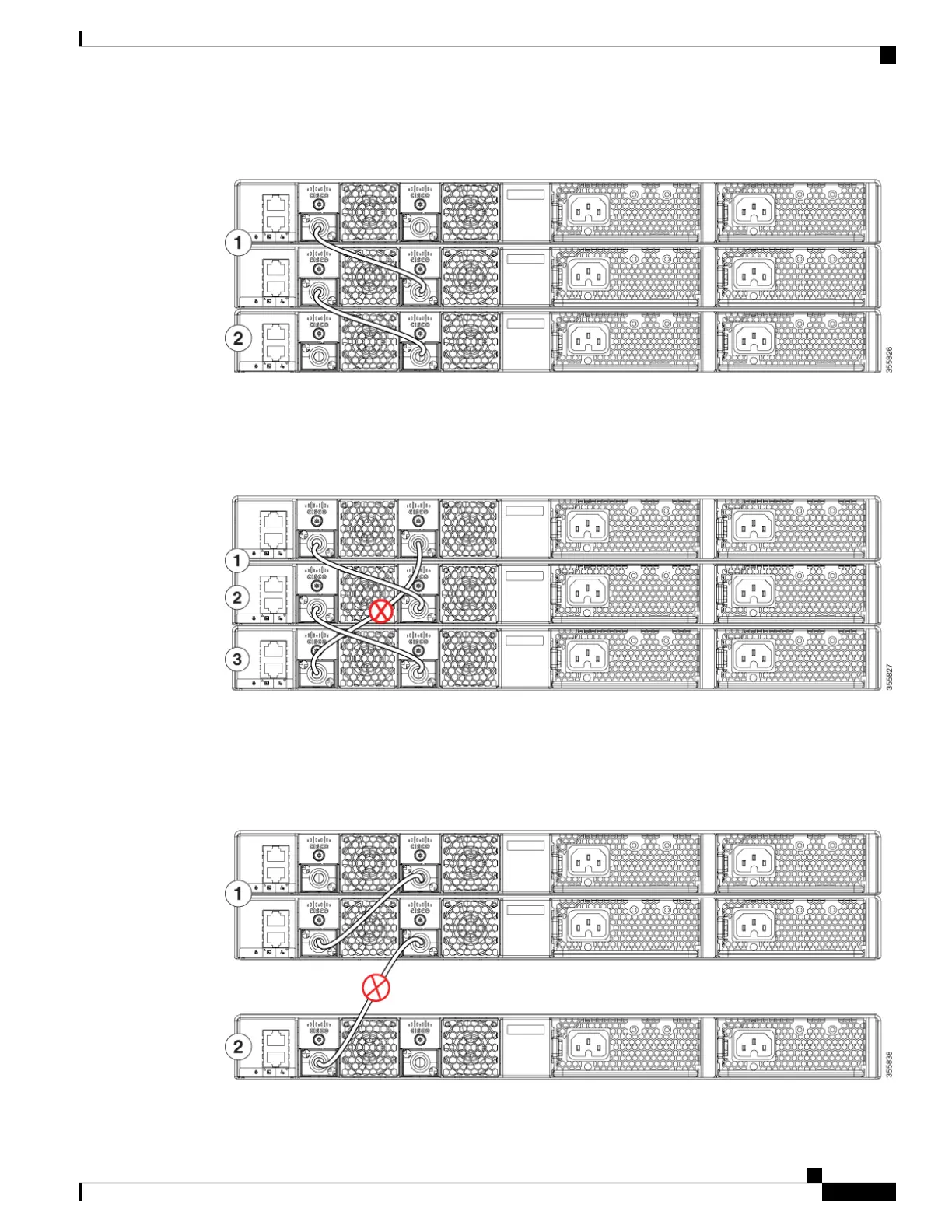

Figure 12: Example of a Data Stack with Half Bandwidth Connections
The figures below show data stacks of switches with failover conditions. In this figure, the StackWise cable
is bad in link 2. Therefore, this stack provides only half bandwidth and does not have redundant connections.
Figure 13: Example of a Data Stack with a Failover Condition
In this figure, link 2 is bad. Therefore, this stack partitions into two stacks, and the top and bottom switches
become the active switch in the stack. If the bottom switch is a member (not active or standby switch), it
reloads.
Figure 14: Example of a Partitioned Data Stack with a Failover Condition
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
19
Installing the Switch
Data Stack Bandwidth and Partitioning Examples

Cisco C9200L-48P-4G Specifications

General

Model	C9200L-48P-4G
Category	Switch
Uplink Interfaces	4 x 1G SFP
Switching Capacity	176 Gbps
PoE Budget	740W
Stacking Bandwidth	80 Gbps
Enclosure Type	Rack-mountable - 1U
Power Over Ethernet (PoE)	Yes
RAM	2 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Ports	48 x 10/100/1000 PoE+
MAC Address Table Size	16K
Jumbo Frame Support	Yes
Routing Protocol	RIP
Remote Management Protocol	SNMP
Features	Quality of Service (QoS), VLAN support, Access Control List (ACL) support, DHCP snooping, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
Operating Temperature	0 to 40 °C
Operating Humidity	10 to 90% non-condensing
