Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Step 2 Remove the module from the protective packaging.
Step 3 Remove the blank module from the switch and save it. To remove the blank module, loosen the captive screw
on the module using a screwdriver until it completely disengages from the chassis.
Verify the correct orientation of your module before installing it. Incorrect installation can damage
the module.
Caution
Do not install the network module with connected cables or installed SFP/SFP+ modules. Always
remove any cables and modules before you install the network module.
Caution
A module interface might become error-disabled when a network module with connected fiber-optic
cables is installed or removed. If an interface is error-disabled, you can reenable the interface by
using the shutdown and no shutdown interface configuration commands.
Caution
Step 4 Position the module face up to install it in the module slot. Slide the module into the slot until the screw makes
contact with the chassis. Fasten the captive screws to secure the network module in place.

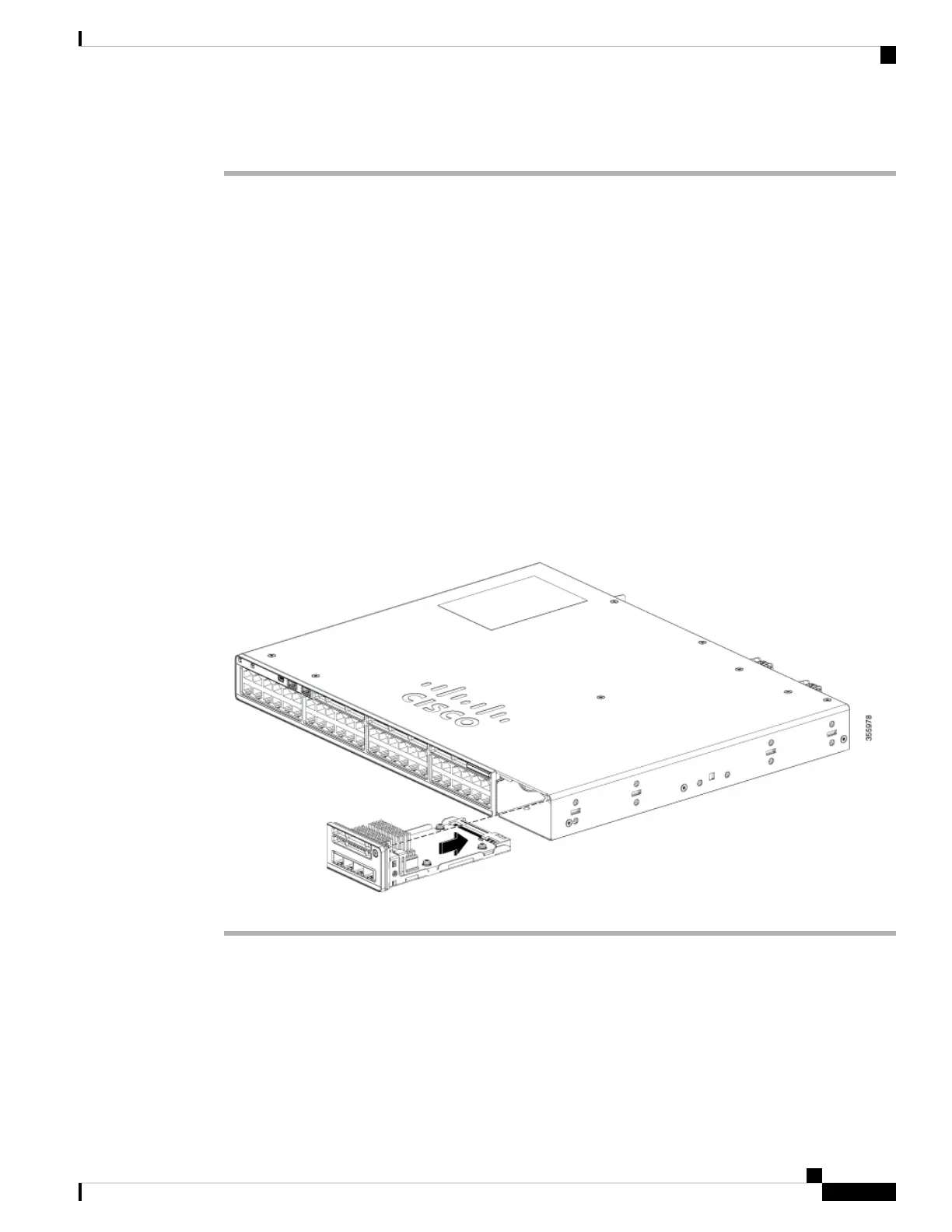

Figure 21: Installing the Network Module in the Switch
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
33
Installing a Network Module
Installing a Network Module

Cisco C9200L-48P-4G Specifications

General

Model	C9200L-48P-4G
Category	Switch
Uplink Interfaces	4 x 1G SFP
Switching Capacity	176 Gbps
PoE Budget	740W
Stacking Bandwidth	80 Gbps
Enclosure Type	Rack-mountable - 1U
Power Over Ethernet (PoE)	Yes
RAM	2 GB
Flash Memory	4 GB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Ports	48 x 10/100/1000 PoE+
MAC Address Table Size	16K
Jumbo Frame Support	Yes
Routing Protocol	RIP
Remote Management Protocol	SNMP
Features	Quality of Service (QoS), VLAN support, Access Control List (ACL) support, DHCP snooping, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
Operating Temperature	0 to 40 °C
Operating Humidity	10 to 90% non-condensing
