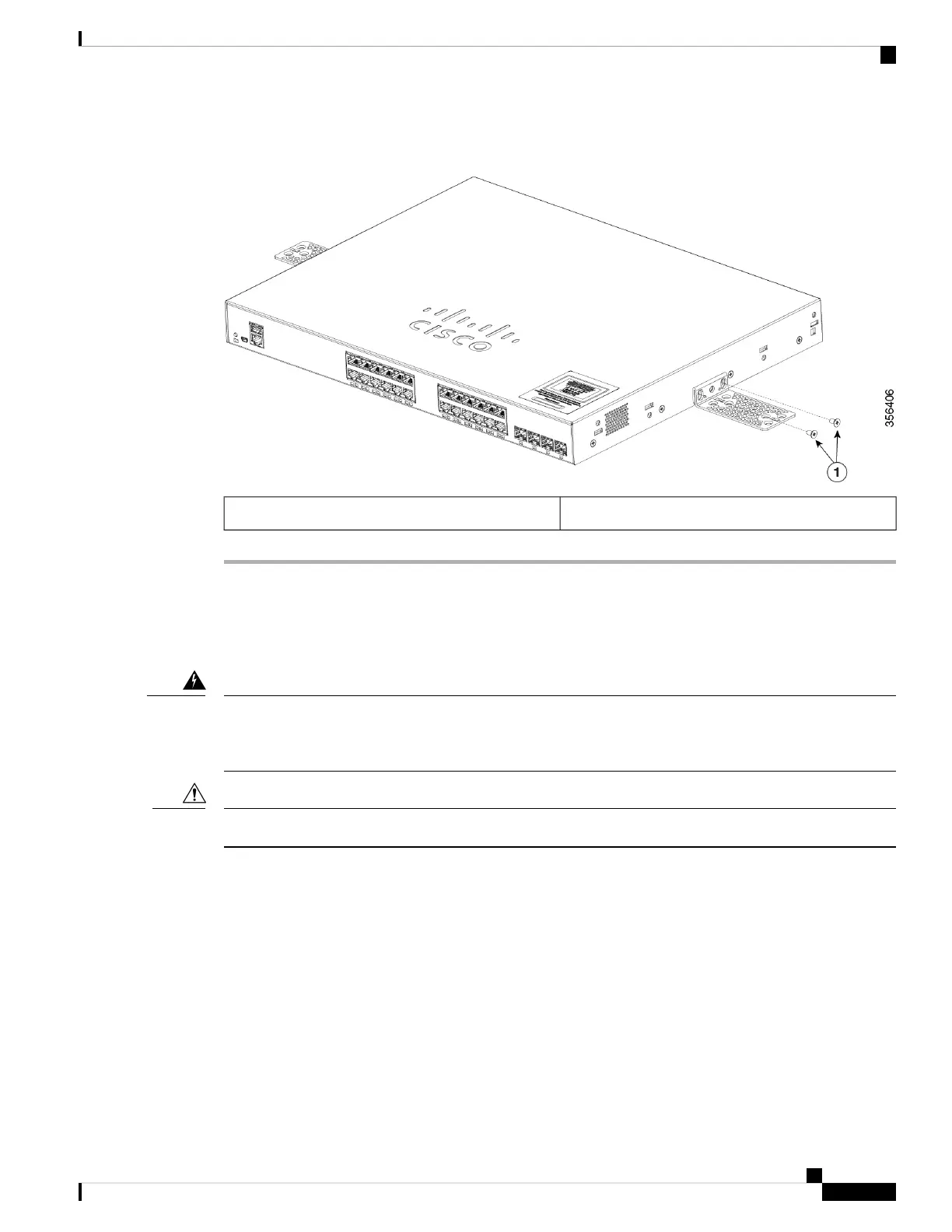

Figure 12: Attaching the 19-inch Brackets for Wall-Mounting
Number-8 phillips flat-head screws (48-2927-01)1
Mounting on a Wall
For the best support of the switch and cables, make sure that the switch is attached securely to wall studs or
to a firmly attached plywood-mounting backboard. Mount the switch with the front panel facing down.
Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware
or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
Statement 378
Warning
Following safety regulations, wall-mount the switch with its front panel facing down.
Caution
Cisco Catalyst 1000 Series 24-Port and 48-Port Switch Hardware Installation Guide
23
Switch Installation
Mounting on a Wall
