APPENDIX B
Connector and Cable Specifications
This appendix contains these topics:
• Connector Specifications, on page 45
• Cables and Adapters, on page 46
Connector Specifications
10/100/1000 Ports (Including PoE)
All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

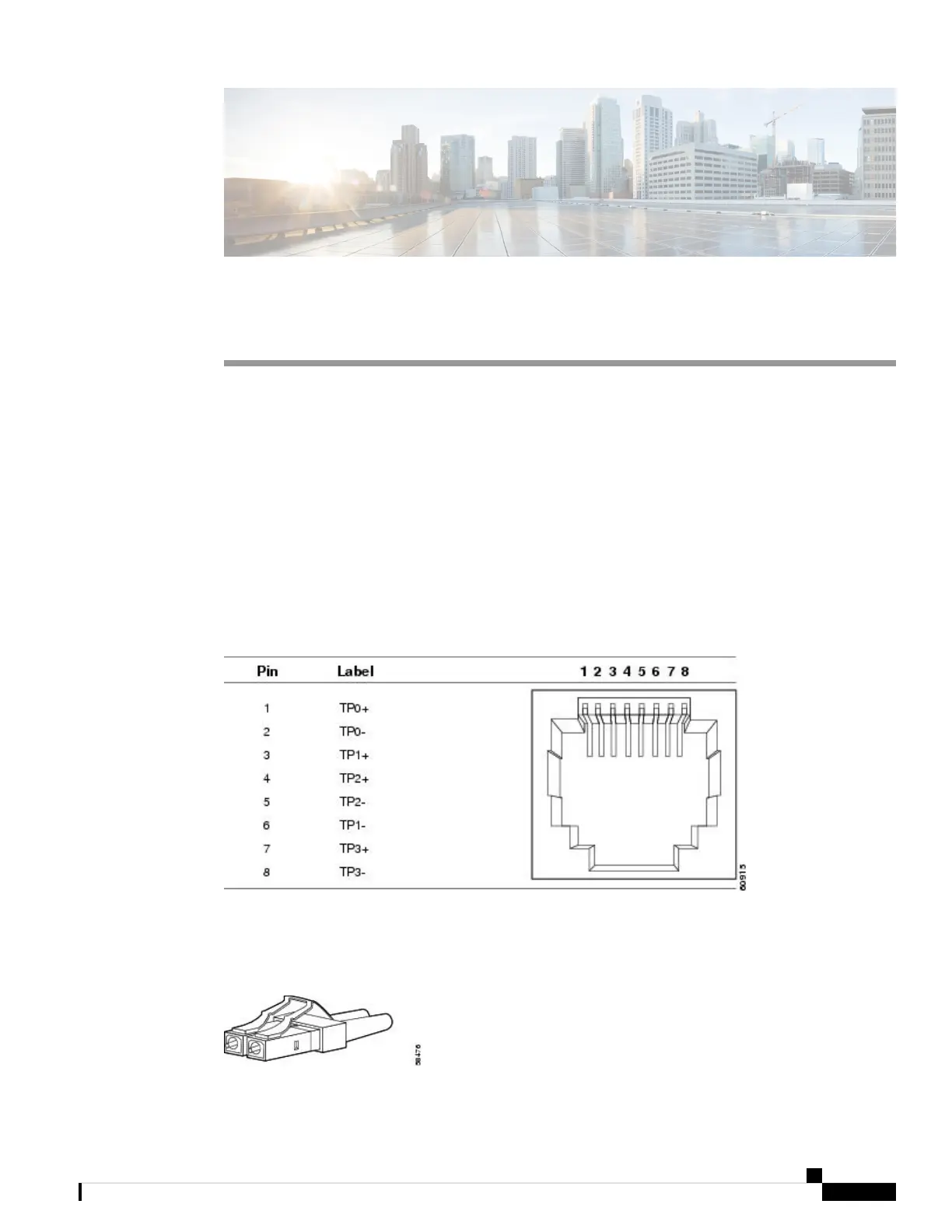

Figure 24: 10/100/1000 Port Pinouts
SFP Module Connectors
Figure 25: Duplex LC Cable Connector
Cisco Catalyst 1000 Series 24-Port and 48-Port Switch Hardware Installation Guide
45

Cisco Catalyst 1000 Series Specifications

General

Series	Catalyst 1000
Category	Switch
Switching Capacity	Up to 104 Gbps
Operating Temperature	-5°C to 45°C
Storage Temperature	-25°C to 70°C
Ports	8, 16, 24, or 48 Gigabit Ethernet ports
Layer	Layer 2
Power over Ethernet	PoE+
Management	Web UI, CLI
MAC Address Table Size	8000 entries
Jumbo Frames	Up to 9216 bytes
Mounting	Rack-mountable, desktop
Stacking	No
Security Features	802.1x, DHCP Snooping
Relative Humidity	10% to 90% non-condensing
Power Supply	Internal
