Stack Cabling
These figures show the switches stacked in a vertical rack or on a table. The connections are redundant. A
Catalyst 2960-X switch is shown in the examples, the Catalyst 2960-XR switch can be stacked in the same
way.

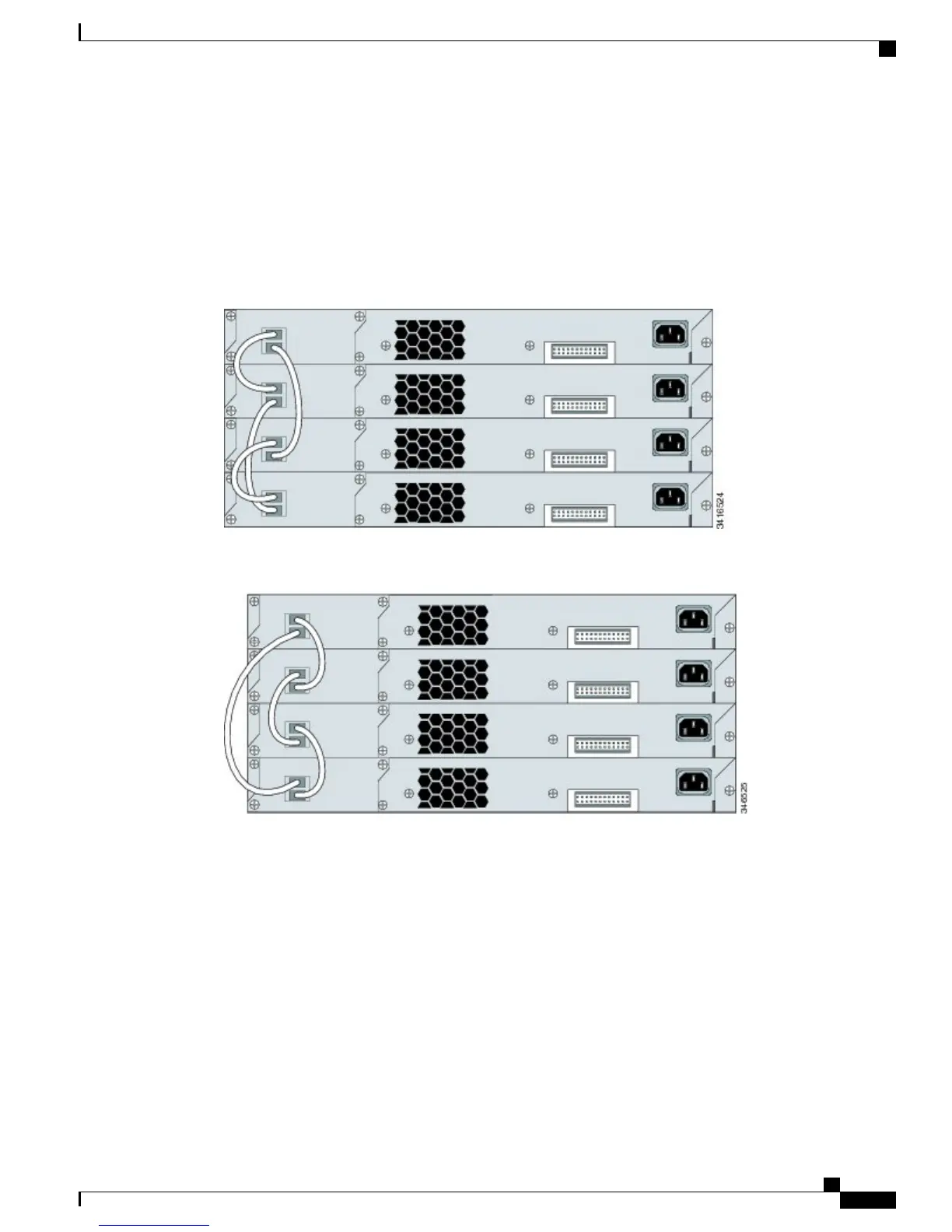

Figure 10: Stacking Switches with the 0.5-meter FlexStack Cable
Figure 11: Stacking Switches with 0.5-meter and 3-meter FlexStack Cables
