Rear-mounting position6Front-mounting position3
Wall-Mounting
Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct
hardware or to follow the correct procedures could result in a hazardous situation to people and damage
to the system. Statement 378
Warning
Attaching the Brackets for Wall-Mounting
Procedure
Step 1
Attach a 19-inch bracket to one side of the switch.
Step 2
Follow the same steps to attach the second bracket to the opposite side.

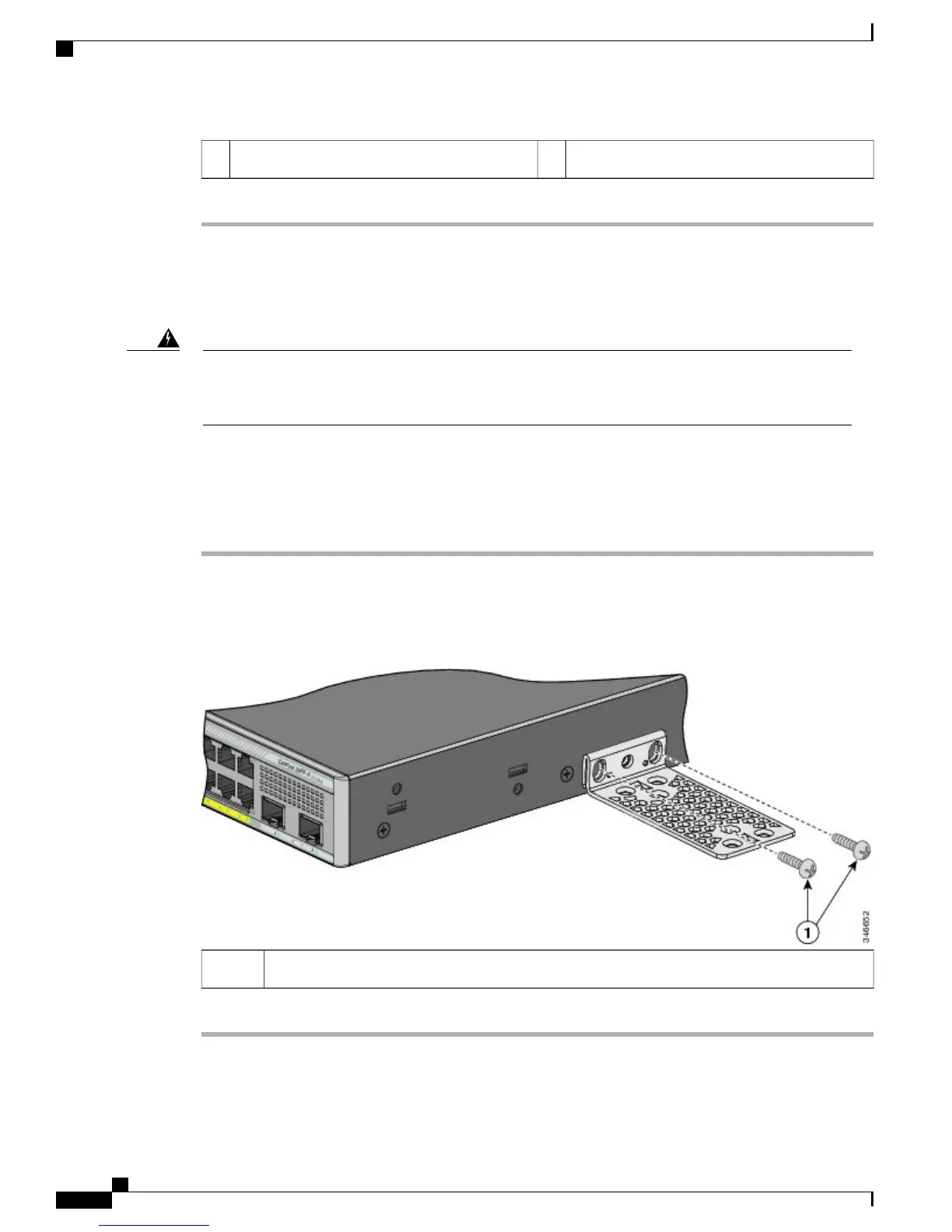

Figure 19: Attaching the 19-inch Brackets for Wall-Mounting
Number-8 phillips flat-head screws (48-2927-01)1
Catalyst 2960-X and 2960-XR Switch Hardware Installation Guide
38 OL-28309-02
Switch Installation
Wall-Mounting
