Cisco Catalyst 3650 Guide

Access Control on the Wired Network
LAN Access Switch Topology with IEEE 802.1x Secure Access Control
67
Best Practice User Guide for the Catalyst 3850 and Catalyst 3650 Switch Series
LAN Access Switch Topology with IEEE 802.1x Secure Access
Control

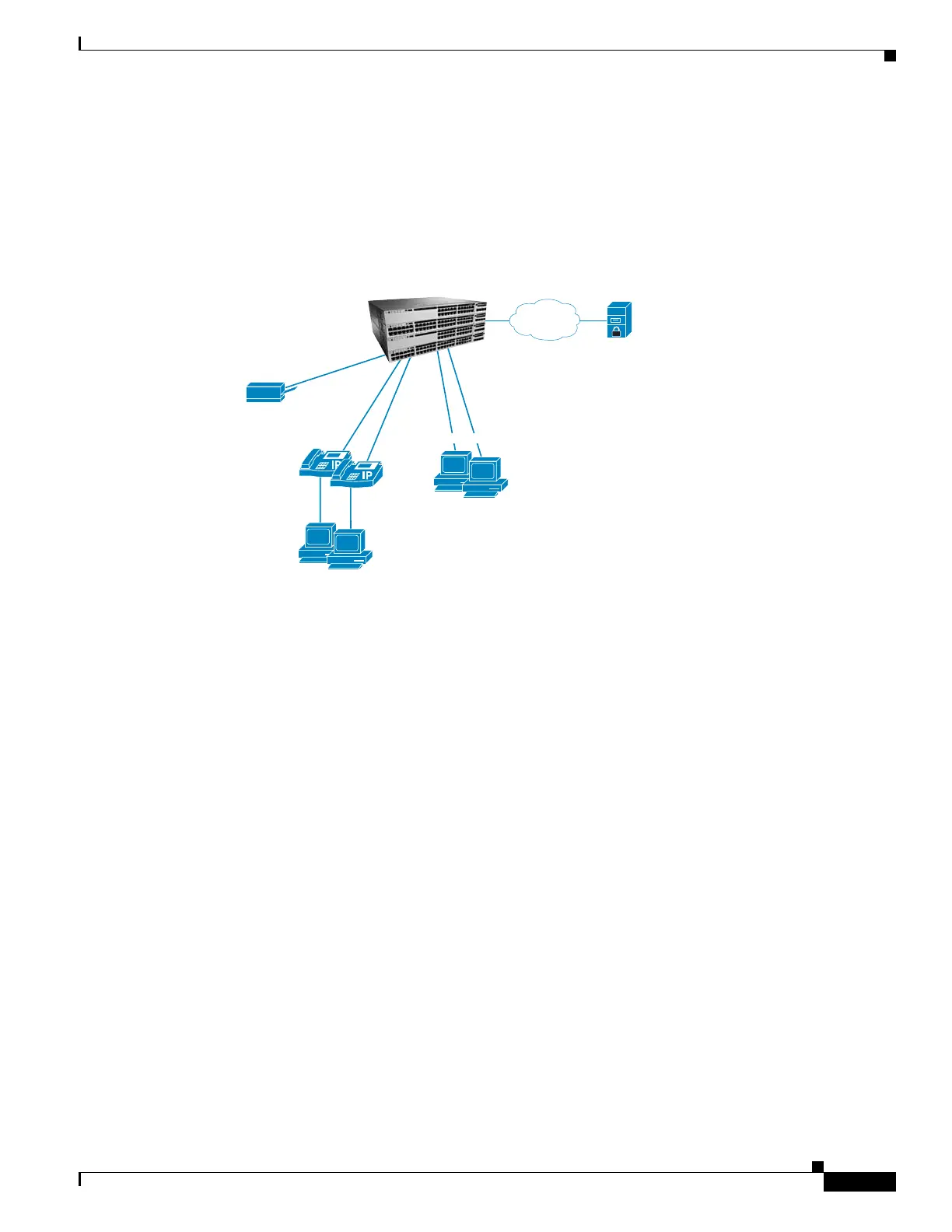

Figure 9 LAN Access Switch Topology with IEEE 802.1x Secure Access Control
Securing Access Using 802.1x on a wired LAN
The following tasks are to be performed in the same order that is listed here.
• Recommendations for Configuring Security on a Wired LAN
• Provision Common Wired Security Access
• Provision in Monitor Mode
• Provision in Low-Impact Mode
• Provision in High-Impact Mode
•
Recommendations for Configuring Security on a Wired LAN
IEEE 802.1x permits or denies network connectivity based on the identity of users and devices. It
provides a link between the user name and IP address, MAC address, and a port on a switch. It also
provides customized network access based on the identity of the end device or user.
The main components of IEEE 802.1x are:
• Supplicant (end device)
• Authenticator (switch)
• Authentication server (RADIUS or ISE)
Desktop user
direct connect
Desktop user
Printer
Catalyst 3850 stack in access
Voice VLAN 11
Data VLAN 10
Data VLAN 10
Switch management
VLAN 100
391703
Data VLAN 10
Authentication
Server

Cisco Catalyst 3650 Specifications

General

Switching Capacity	160 Gbps
Uplink Interfaces	4 x 1G SFP or 2 x 10G SFP+
Device Type	Switch
Form Factor	Rack-mountable
Layer	Layer 3
DRAM	4 GB
Flash Memory	4 GB
Operating System	Cisco IOS XE
Model	Catalyst 3650
Ports	24 or 48 10/100/1000 Ethernet ports
Stacking	Yes
Power over Ethernet (PoE)	Yes
Power Supply Options	350W AC
VLANs	4094
