Access Interface Connectivity
LAN Access Switch Topology with Connections to End Devices
53
Best Practice User Guide for the Catalyst 3850 and Catalyst 3650 Switch Series
LAN Access Switch Topology with Connections to End Devices
The following illustration shows the topology of LAN Access Switch to end devices:

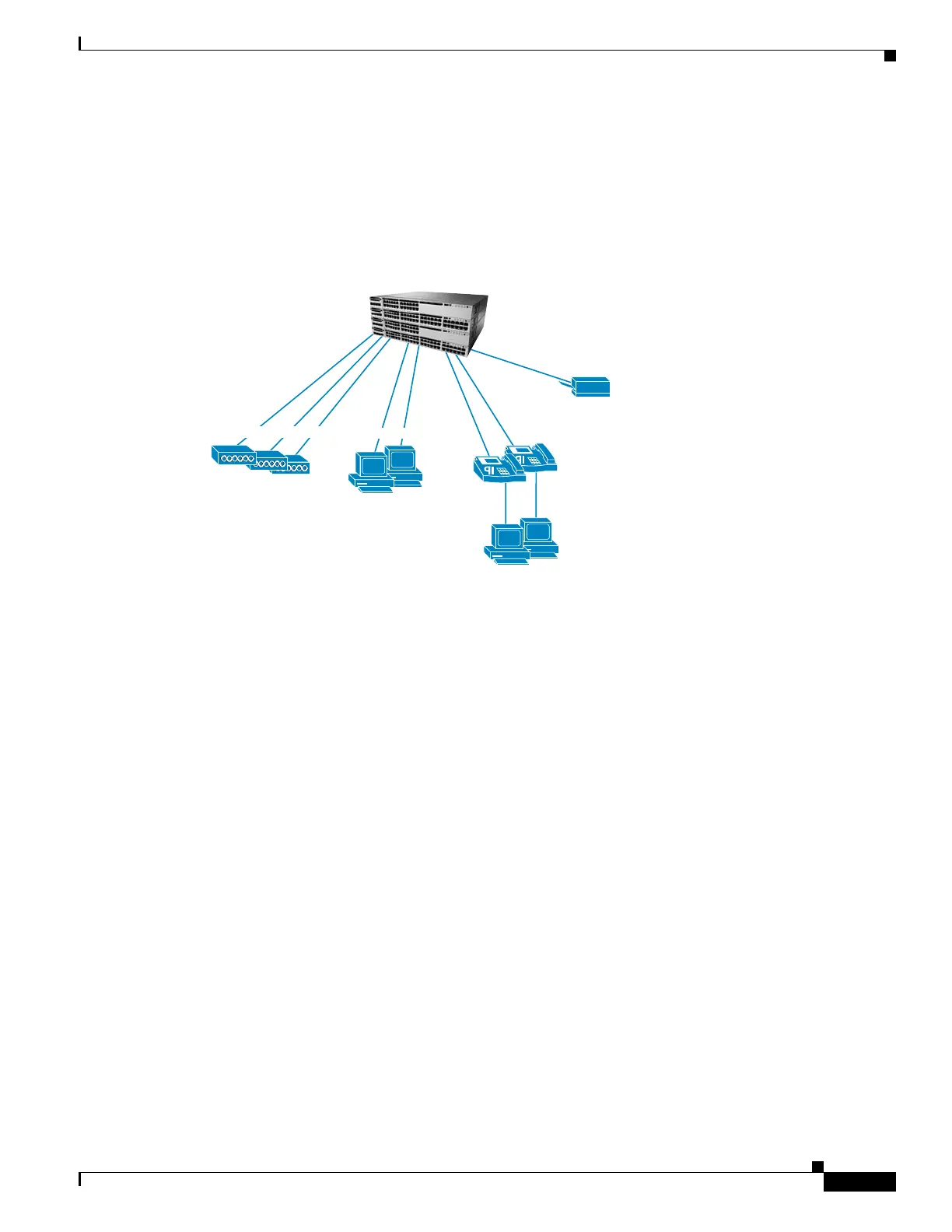

Figure 8 LAN Access Switch Topology with Connections to End Devices
Configure Access Interface Connectivity
• Recommendations for Configuring an Access Interface
• Configure an Interface for Access Mode
• Configure VLAN Membership
• Create an Interface Description
• Configure Security Features on an Access Interfaces
• Configure QoS on an Access Interface
• Verify Access Interface Configurations
Recommendations for Configuring an Access Interface
Although some end devices do not require the following access interface configurations, we recommend
that you perform them to ensure consistency. The configurations do not interfere with the operation of
the network or the attached end device, and is considered safe to use.
When configuring your access interface, you should complete the following tasks:
• Configure an Interface for Access Mode
• Configure VLAN Membership
• Create an Interface Description
Desktop user
direct connect
Desktop user
Printer
Wireless access point
Catalyst 3850 stack in access
Voice VLAN 11
Data VLAN 10
Data VLAN 10
Switch management
VLAN 100
391689
Access point VLAN 12
Data VLAN 10

Cisco Catalyst 3650 Specifications

General

Switching Capacity	160 Gbps
Uplink Interfaces	4 x 1G SFP or 2 x 10G SFP+
Device Type	Switch
Form Factor	Rack-mountable
Layer	Layer 3
DRAM	4 GB
Flash Memory	4 GB
Operating System	Cisco IOS XE
Model	Catalyst 3650
Ports	24 or 48 10/100/1000 Ethernet ports
Stacking	Yes
Power over Ethernet (PoE)	Yes
Power Supply Options	350W AC
VLANs	4094
