Converged Wired and Wireless Access
Enable the Switch as a Wireless Controller
84
Best Practice User Guide for the Catalyst 3850 and Catalyst 3650 Switch Series

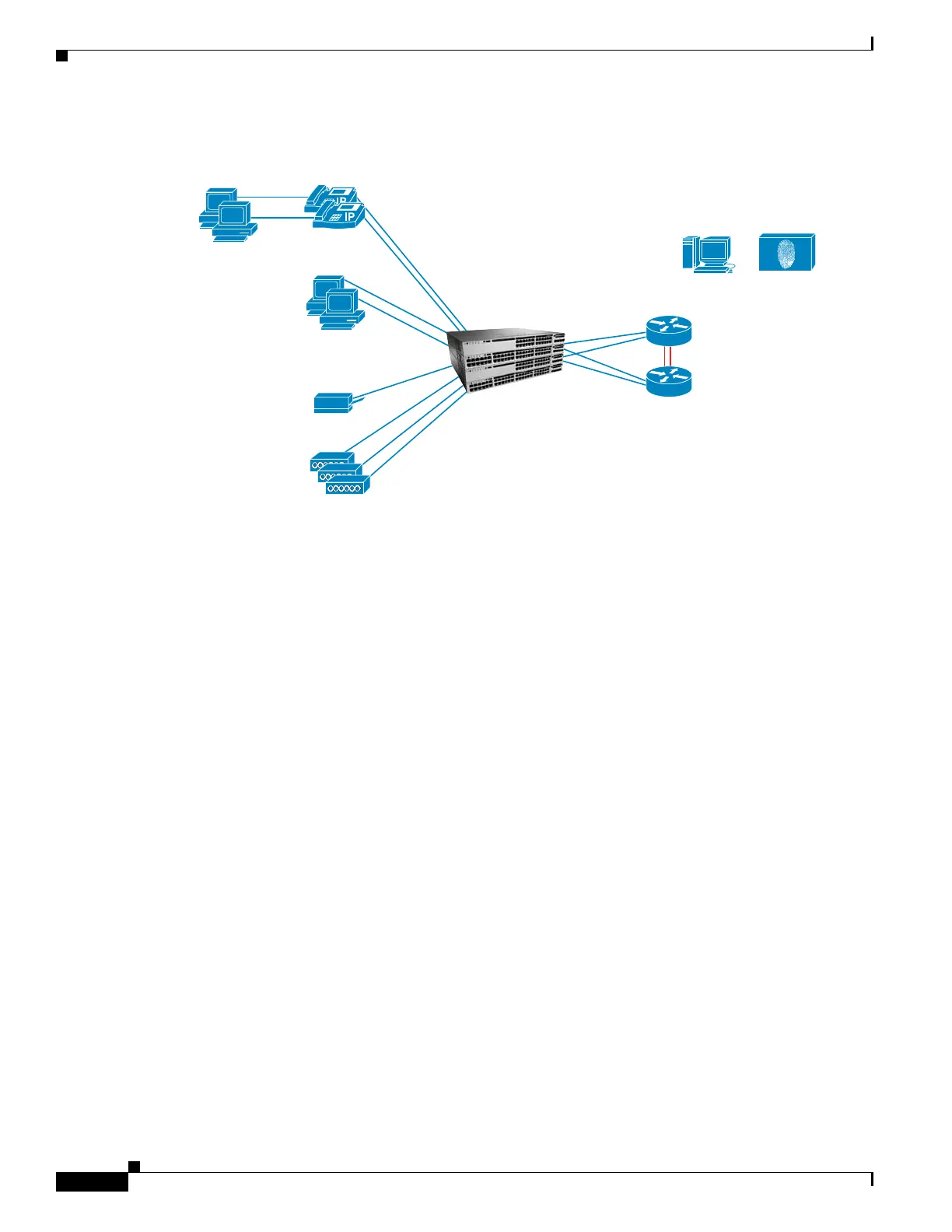

Figure 13 LAN Access Switch Topology with Wireless Connectivity
Enable the Switch as a Wireless Controller
• Install Access Point Licenses on the Switch
• Configure a Wireless Management VLAN
• Configure Service Connectivity
• Enable Wireless Controller Functionality
• Change a Switch to Run in Mobility Controller Mode
• Enable the Access Point Connections
Install Access Point Licenses on the Switch
For ease of use, an evaluation license is preinstalled on your switch, but you are required to accept the
End-User-License Agreement (EULA) before the 90-day period expires.
The IP Base and IP Services image-based licenses support wireless functionality. The minimum license
level for wireless functionality is IP Base.
The total AP-count license of a switch stack is equal to the sum of all the individual member AP-count
licenses, up to a maximum of 50 AP-count licenses.
The total AP-count license of the stack is affected when stack members are added or removed:
• When a new member is added to the stack that has an existing AP-count license, then the total
available AP-count license for the switch stack is automatically recalculated.
• When members are removed from the stack, the total AP-count license is decremented from the total
available AP-count license in the stack.
