Cisco Catalyst 6807-XL - Rear Panel; Backplane Bandwidth

Related Topics
Removing and Installing the Power Supply Converter, on page 57
Power Supply Converter, on page 7
Rear Panel
These rear panel components are located behind the back plate of the chassis:
•
Backplane
•
Clock module
•
Voltage Termination-Enhanced (VTT-E) module

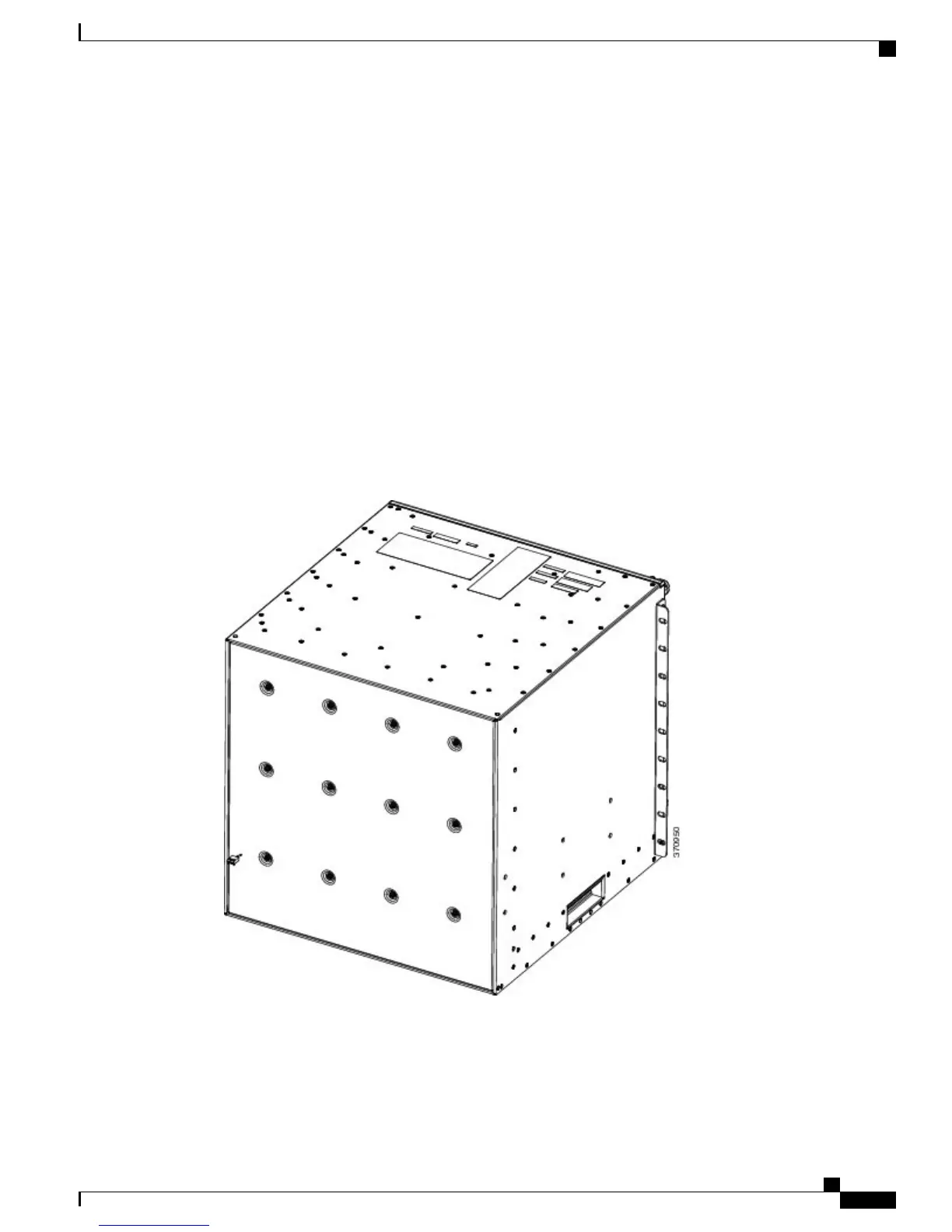

Figure 5: Cisco Catalyst 6807-XL Rear Panel
Backplane Bandwidth
The backplane supports:
