Cisco Catalyst 6807-XL User Manual

Procedure
Step 1
Position the support flange of the left shelf bracket on the rear of the left rail. Align and secure the bracket to
the rack by using five EA screws.
Step 2
Position the support flange of the right shelf bracket on the rear of the right rail (make sure that it is level with
the left shelf bracket). Align and secure the bracket to the rack by using five EA screws.
Step 3
Position the crossbar bracket to the rear of the shelf brackets. Align and secure the cross bar bracket to the
shelf bracket with one M3 screw on each side.

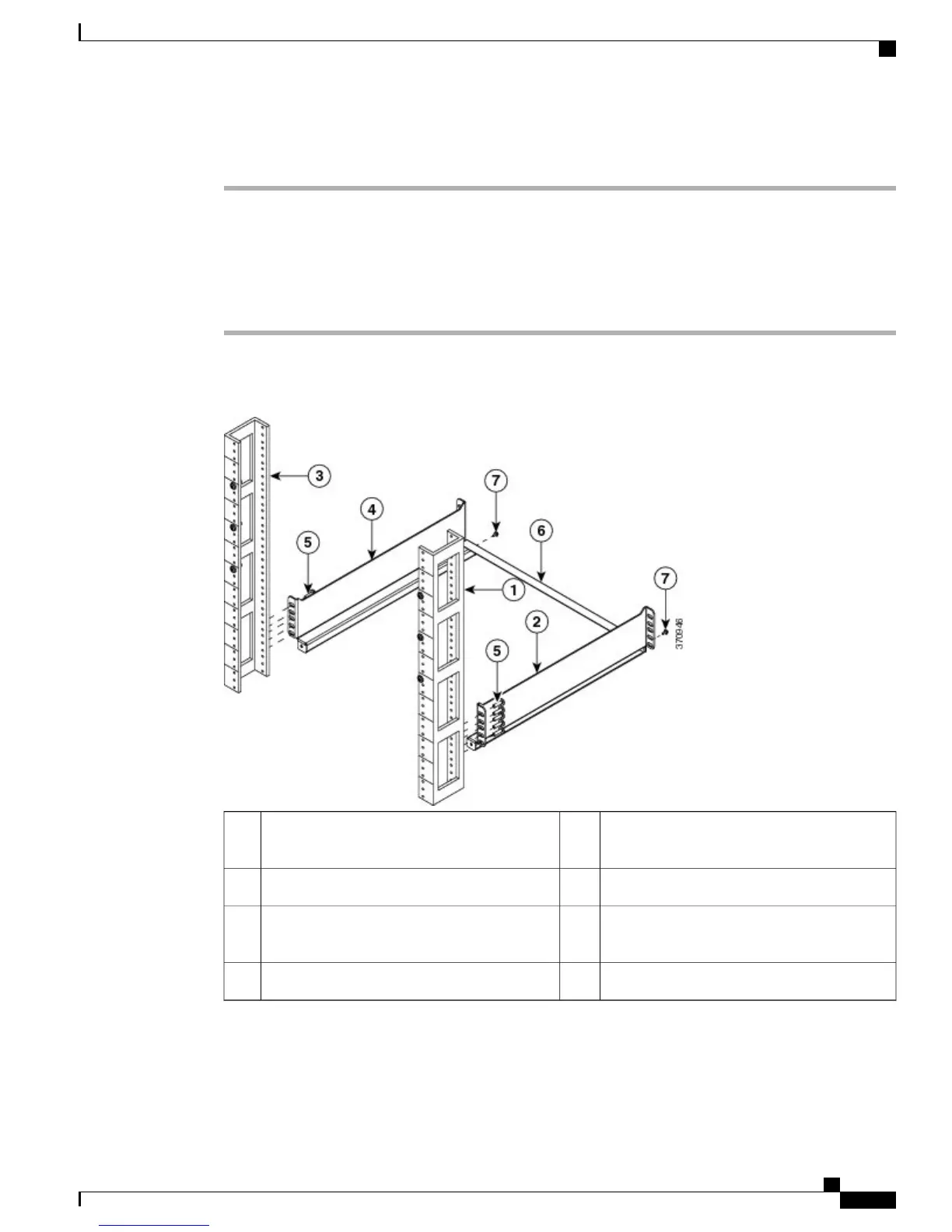

Figure 8: Installing Shelf and Crossbar Brackets in a 17.5-inch Opening
Five EA screws on each side, to secure the
shelf bracket to the rack
5Left rail1
Cross bar bracket6Left shelf bracket2
One M3 screw on each side to secure the cross
bar bracket to the shelf
7Right rail3
Right shelf bracket4
Cisco Catalyst 6807-XL Switch Hardware Installation Guide
OL-30656-01 35
Installing the Switch
Installing the Shelf and Crossbar Brackets in a 17.5-inch (44.45 cm) Opening
