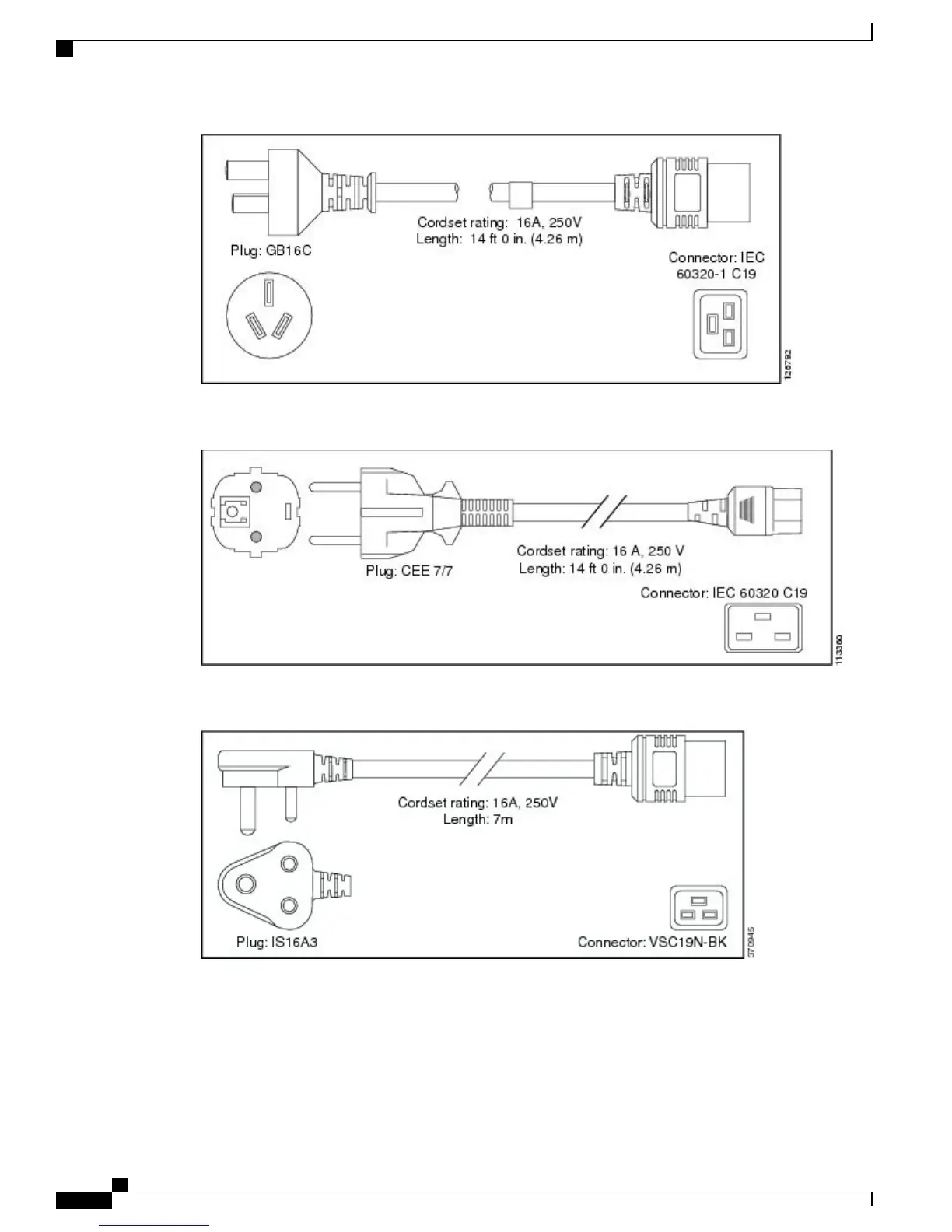

Figure 23: CAB-AC-2500W-EU= (Continental Europe)
Figure 24: CAB-SABS-C19-IND= (India)
Figure 25: CAB-AC-2500W-INT= (International)
Cisco Catalyst 6807-XL Switch Hardware Installation Guide
70
OL-30656-01
Power Supply Specifications
3000 W Power Supply AC Power Cords
79
81
Table of Contents
Default Chapter
3
Table of Contents
3
Preface
7
Document Conventions
7
Related Documentation
9
Obtaining Documentation and Submitting a Service Request
9
Product Overview
11
Switch Models
11
Front Panel
11
Chassis
12
Supervisor Engine
13
Modules
13
Fan Tray
14
Power Supply Module
15
Power Entry Module
17
Power Supply Converter
17
Leds
18
Fan Tray LED
18
Power Supply Module Leds
19
Power Supply Converter Leds
20
Rear Panel
21
Backplane Bandwidth
21
Clock and VTT Module
22
Preparing for Installation
23
Safety Warnings
23
Site Requirements
24
Temperature
24
Air Flow
25
Selecting Rack Enclosure Cabinets
26
Chassis Fan Tray
26
Humidity
27
Altitude
28
Dust and Particles
28
Corrosion
28
EMI and Radio Frequency Interference
28
Power Source Interruptions
29
System Grounding
30
Maintaining Safety with Electricity
32
Preventing Electrostatic Discharge Damage
33
Power Requirements
33
Cabling Requirements
34
Rack-Mounting Guidelines
34
Site Preparation Checklist
35
Installing the Switch
39
Installation Tasks
39
Accessory Kit
41
Unpacking the Switch
42
L Brackets on the Chassis
43
Installing the Rack-Mount Shelf Kit
43
Installing the Shelf and Crossbar Brackets in a 17.5-Inch (44.45 CM) Opening
44
Installing the Shelf and Crossbar Brackets in a 17.75 Inch (45.09 CM) Opening
46
Rack-Mounting the Chassis
47
Establishing System Ground
51
Attaching an ESD Strap
53
Verifying the Switch Chassis Installation
55
Online Diagnostics
56
Connecting the Supervisor Engine Console Port
56
Installing Transceivers and Module Connectors
57
Removing and Replacing Frus
59
Online Insertion and Removal
59
Removing and Installing Power Supplies
60
Installing AC Power Supplies
60
Removing AC Power Supplies
63
Removing and Installing the Fan Tray
64
Installing the Fan Tray
64
Checking Fan Tray Installation
65
Removing the Fan Tray
65
Removing and Installing the Power Supply Converter
67
Installing the Power Supply Converter
67
Removing the Power Supply Converter
68
Appendix A Technical Specifications
71
Physical Specifications
71
Environmental Specifications
72
Appendix B Power Supply Specifications
75
3000 W AC-Input Power Supply Specifications
75
3000 W Power Supply AC Power Cords
77
Chassis and Module Power and Heat Values
84
Appendix C Transceivers, Module Connectors, and Cable Specifications
89
Pluggable Transceivers
89
1-GB Transceivers
90
40-GB Transceivers
91
WDM Transceivers
92
Module Connectors
94
RJ-45 Connector
94
SC Connector
95
LC Connector
96
MTP-12 Connector
96
Cleaning the Fiber-Optic Connectors
97
Guidelines
97
How to Clean the Fiber-Optic Connectors
98
Cable Specifications
98
SFP Module Cables
98
Console Cables
99
Adapter (to Connect to a PC)
100
Adapter (to Connect to a Terminal)
100
Modem Adapter
101
Identifying a Rollover Cable
102
Cable Pinouts
102
Mode-Conditioning Patch Cord
105
Example: Patch Cord Configuration
105
Installing the Patch Cord
105
Differential Mode Delay
106
Appendix D Repacking the Switch
109
Appendix E Troubleshooting
113
Getting Started
113
Solving Problems at the System Component Level
113
Identifying Startup Problems
114
Troubleshooting the Power Supply Module
114
Troubleshooting the Fan Tray
115
Contacting Cisco Customer Service
116
Finding Serial Numbers
116
