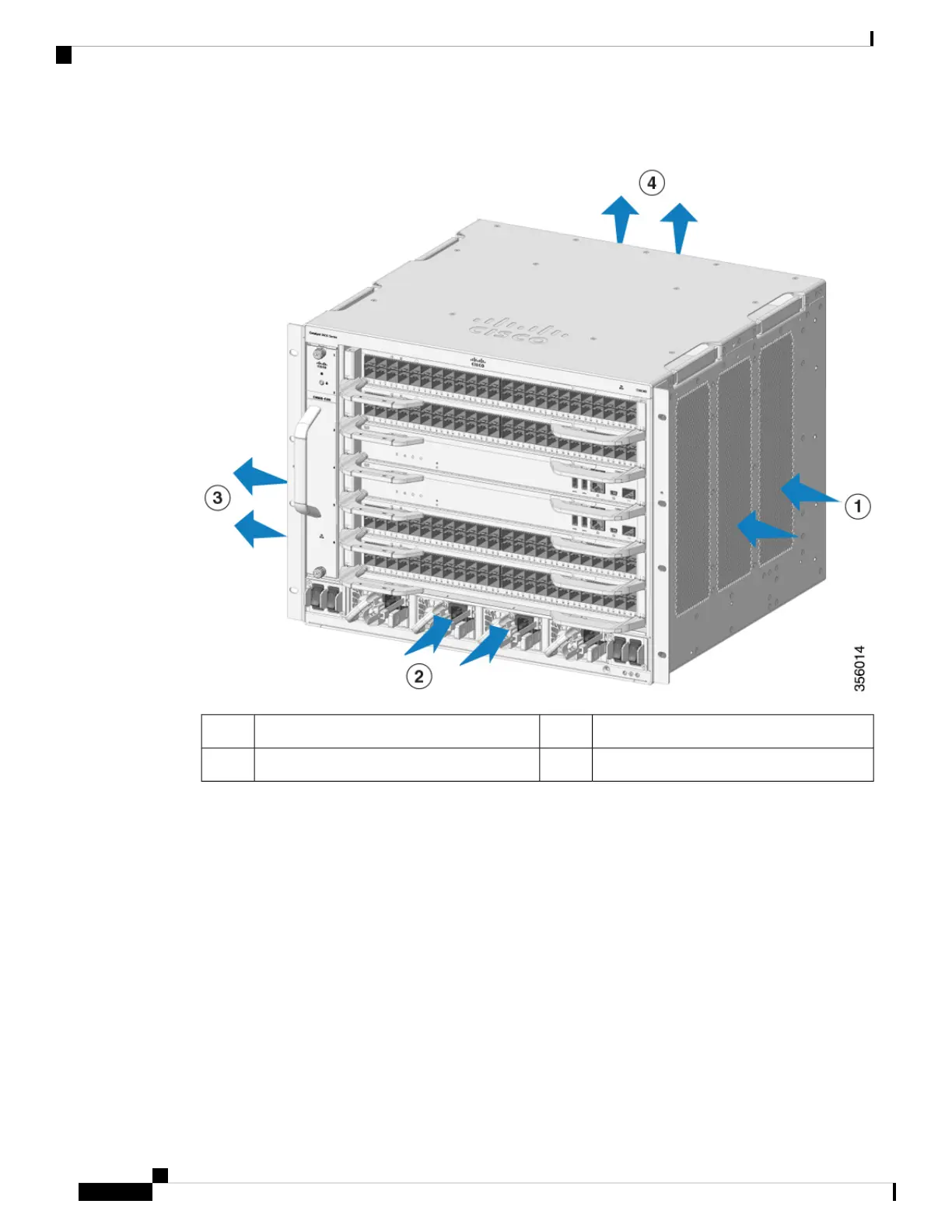

Figure 6: Air Flow Direction - Cisco Catalyst 9600 Series Switches
Chassis air exhaust3Chassis air intake1
Power supply air exhaust4Power supply air intake2
If you are installing your switch in an enclosed or partially enclosed rack, we strongly recommend that you
verify that your site meets the following guidelines:
• Verify that there is a minimum of 6 inches (15 cm) of clearance between the sides, front, and back of
any enclosure, and both the chassis air intake grill and the chassis air exhaust grill along with the power
supply unit intakes and exhausts. The upright columns of a relay rack may be located less than the
recommended side spacing provided there are substantial cutouts, holes, or vents in the structure to allow
adequate air flow through the chassis.
• Verify that the ambient air temperature within the enclosed or partially enclosed rack is within the chassis
operating temperature limits. After installing the chassis in the rack, power up the chassis and allow the
chassis temperature to stabilize (approximately 2 hours).
Measure the ambient air temperature at the chassis air intake grill by positioning an external temperature
probe 1 inch (2.5 cm) away from the chassis left side, and centered on the chassis both horizontally and
vertically.
Cisco Catalyst 9600 Series Switches Hardware Installation Guide
16
Preparing for Installation
Air Flow

Cisco Catalyst 9600 Series Specifications

General

Series	Catalyst 9600 Series
Category	Switch
Switching Capacity	Up to 25.6 Tbps
Software	Cisco IOS XE
Form Factor	Modular chassis
Purpose	Enterprise campus core and distribution
Ports	10G, 25G, 40G, 100G, 400G
Redundancy	Yes, supports redundant power supplies and fans
Stacking	Virtual Stacking supported
Security	Advanced security features including MACsec encryption
Management	Cisco DNA Center, CLI, SNMP
Uplink Ports	40G, 100G
Power Supply	Redundant, hot-swappable
Operating Temperature	0°C to 45°C (32°F to 113°F)
Port Density	Up to 384 ports
Weight	Starting at 75 lbs (34 kg)
Modular Slots	Up to 6 line card slots
