Mounting the DIN Rail Bracket on the Router (Horizontal)
Procedure

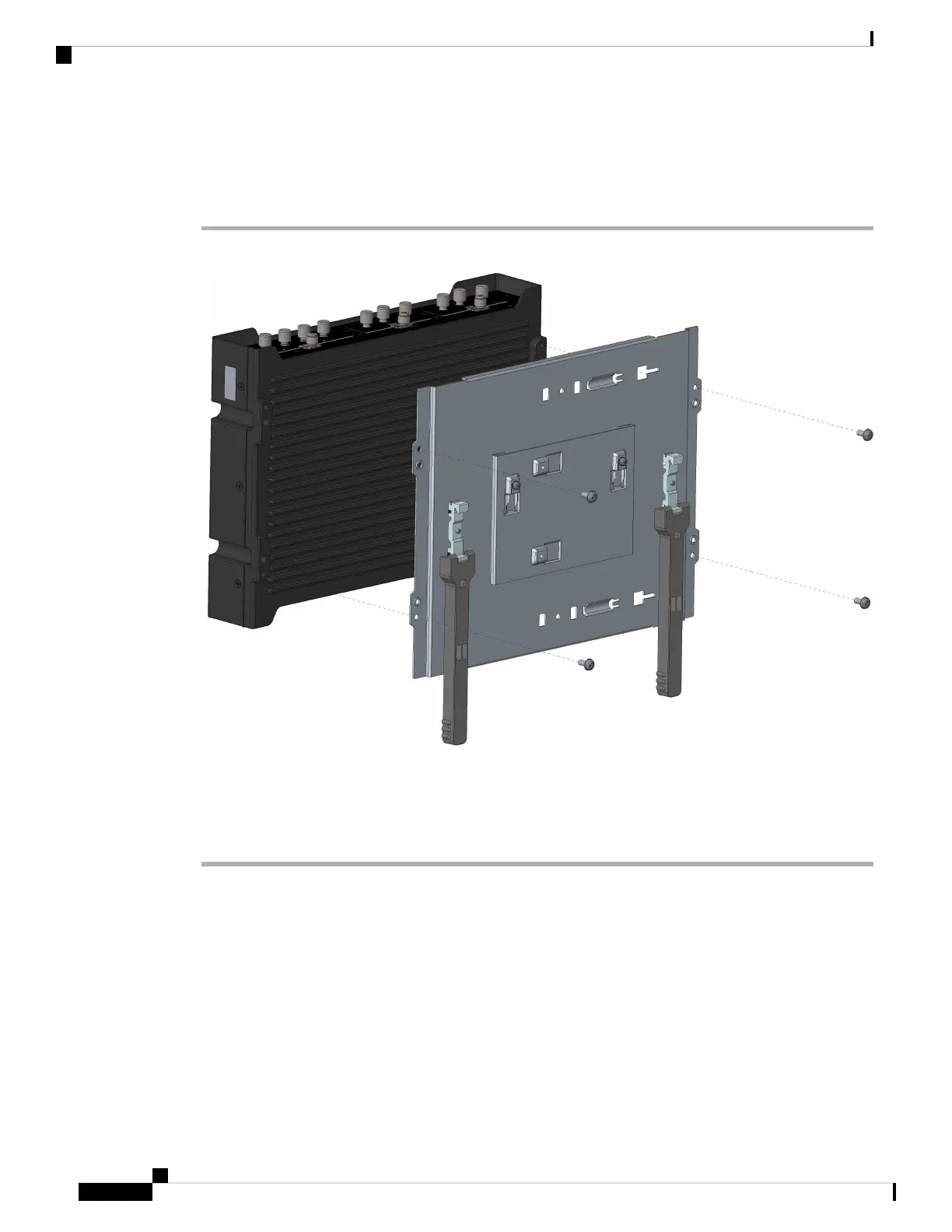

Step 1 First, attach the DIN rail bracket to the back of the router. Refer to the following graphic for guidence.
Step 2 Attach the DIN mounting bracket to the router using the four 8-32 screws provided in the kit. Position the
bracket over the four mounting holes and then place the screws through the bracket into the chassis. Then use
14 in. lbs. of torque to screw the bracket onto the router.
Step 3 Once the bracket is attached to the router, it can be mounted onto the DIN Rail.
Attaching the Bracket onto the DIN Rail
To attach the Cisco IR1800 with the bracket to a DIN rail, refer to the following graphic and follow these
steps.
