Changing the Bracket Orientation
The DIN Rail bracket arrives already oriented in the Horizontal mounting position. In order to mount your
device in the Vertical orientation, you will need to disassemble the bracket hardware and reassemble it in the
new orientation.
The Horizontal orientation is shown in the following graphic:

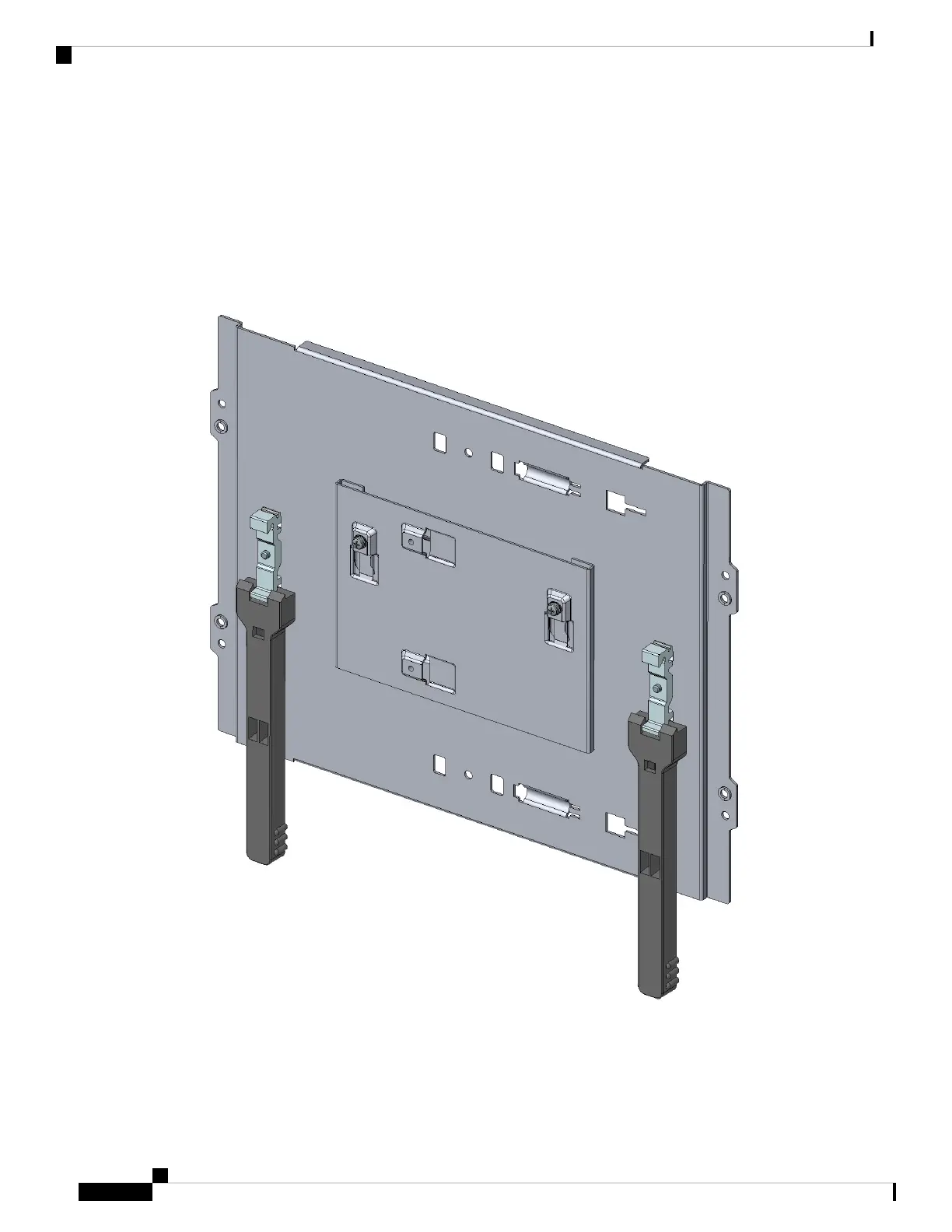

Figure 8: Horizontal Orientation
The Vertical orientation is shown in the following graphic:
