Step 2 Attach the back cover to the back of the chassis over the pluggable modules using 8 of the provided screws.

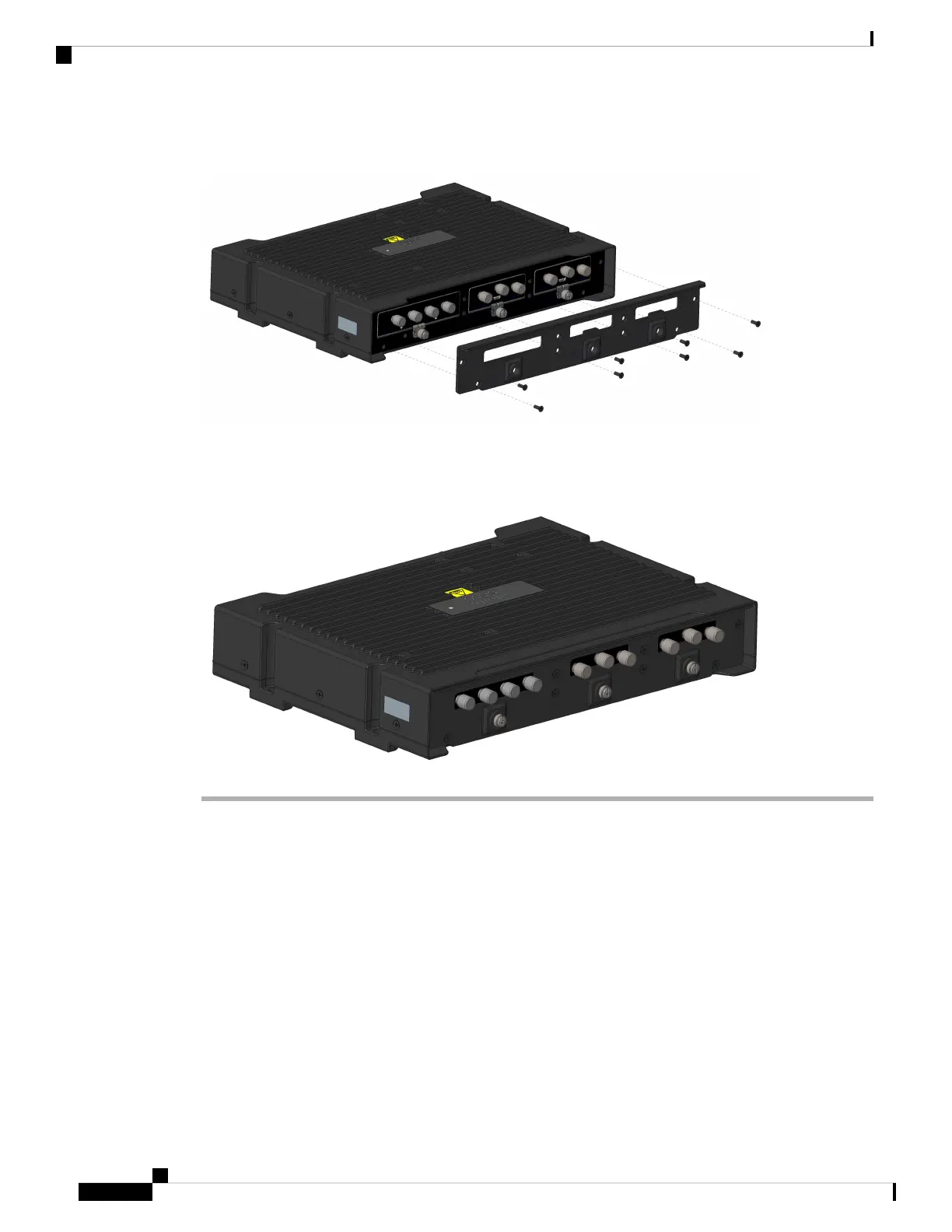

See the following graphic:
Step 3 Tighten the screws to a torque of 5 to 6 in-lbs.
Step 4 Once the cover is in place, antennae can be attached to the pluggable modules as needed.
Step 5 The final assembly appears as in the following graphic:
What to do next
The IP54 Kit is now properly assembled.
