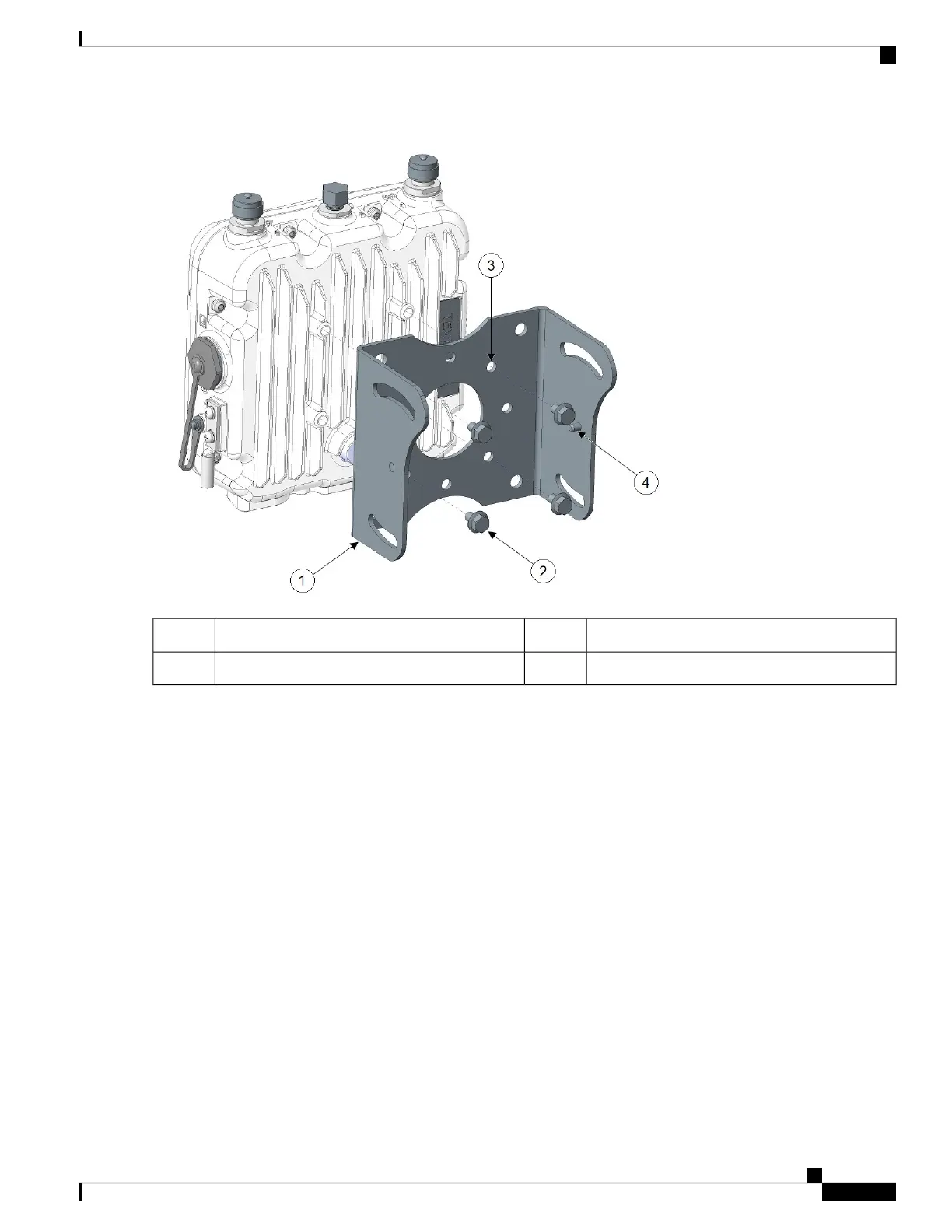

Mounting Holes2M6 Bolts (x4)1
Pins4Mounting Bracket (for AP)3
Step 2 Use the mounting holes (8) to attach the mounting bracket (1) to a wall, or use the radial strap slots (9) to attach the
mounting bracket (1) to a pole. Slide the assembled chassis onto the bracket and rest the pins (4) on the two mounting
slots (2). Use the included M8 bolts (5), split washers (6), and flat washers (7) to secure the assembled chassis to the
mounting bracket (1). Ensure that the split washer (6) is between the flat washer (7) and the bolt (5), as shown in the
following figure. Torque the bolts to 50-60 in-lbs to secure the chassis to the bracket.
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
23
Installation Overview
Pole Mounting the Access Point with the Tiltable Mounting Kit
