Installation Considerations
Cisco recommends that you bulkhead mount the lightning arrestor so it can be installed as a wall-feed through
on the wall of the protected space.
The importance of obtaining a good ground and bonding connection cannot be overstressed. Consider these
points when grounding the lightning arrestor:
• Connect the lightning arrestor components directly to the grounding point.
• The contact points of the ground connection must be clean and free of dust and moisture.
• Tighten threaded contacts to the torque specified by the manufacturer.
Lightning Arrestor Installation Notes
This lightning arrestor is designed to be installed between the antenna cable that is attached to an outdoor
antenna and the Cisco wireless device. You can install the lightning arrestor either indoors or outdoors. It can
be connected directly to a wireless device having an external N connector. It can also be mounted inline or
as a feed-through. Feed-through installations require 5/8 in. (16 mm) hole to accommodate the lightning
arrestor.
• This lightning arrestor is part of a lightning arrestor kit. The kit contains a lightning arrestor and a
grounding lug.
• When you install the lightning arrestor, follow the regulations or best practices applicable to lightning
protection installation in your local area.
Note
Installing the Lightning Arrestor Outdoors
If you install the lightning arrestor outdoors, use the supplied ground lug and a heavy wire (#6 solid copper)
to connect it to a good earth ground, such as a ground rod. The connection should be as short as possible.

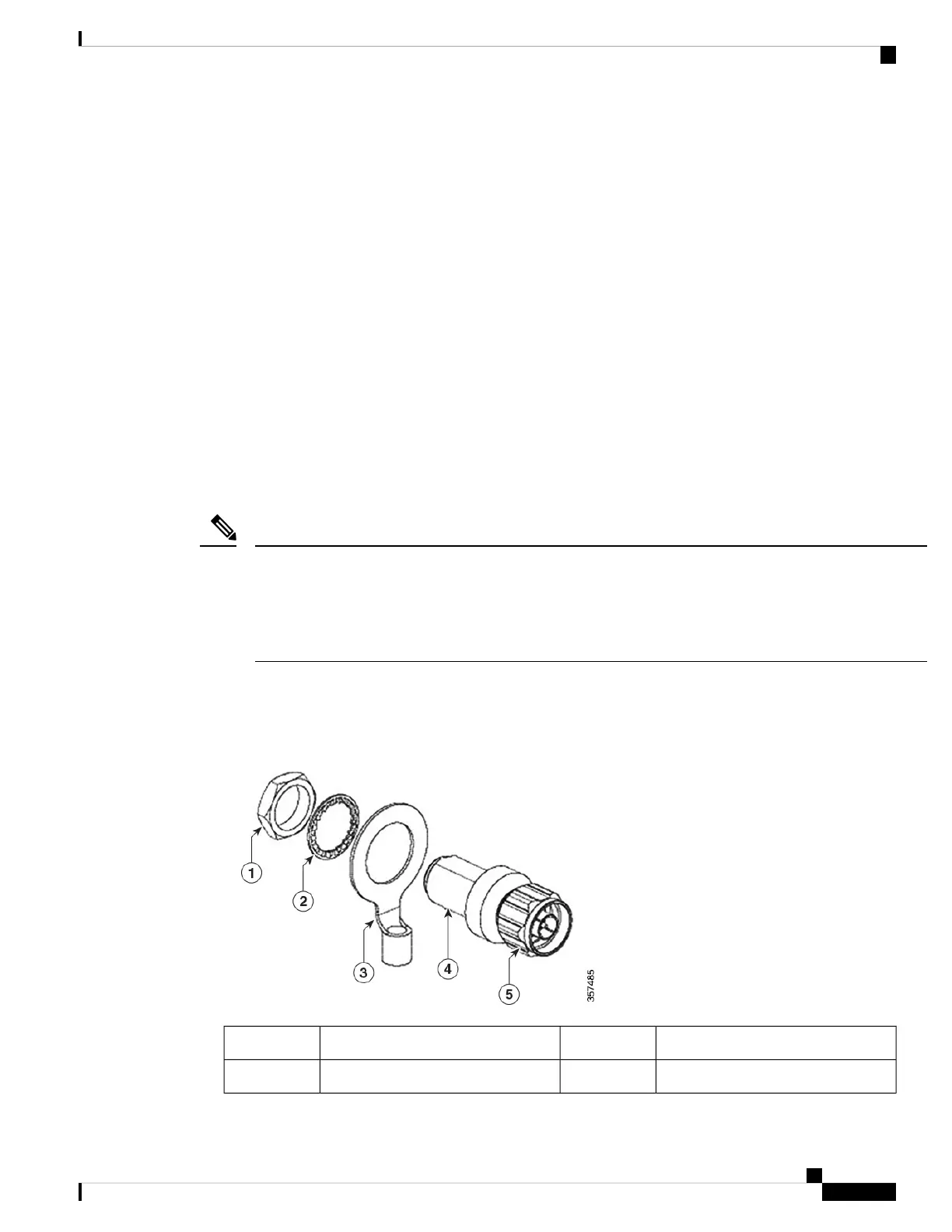

Unprotected Side (to antenna)4Nut1
Protected side (to wireless device)5Lockwasher2
