Step 2 Plug 4P connector cable into the DC connector in the chassis.
Step 3 Thread the PG13 body (with gasket) into the chassis.
Step 4 Insert the grommet into the ferrule, and press it into the PG13 body.

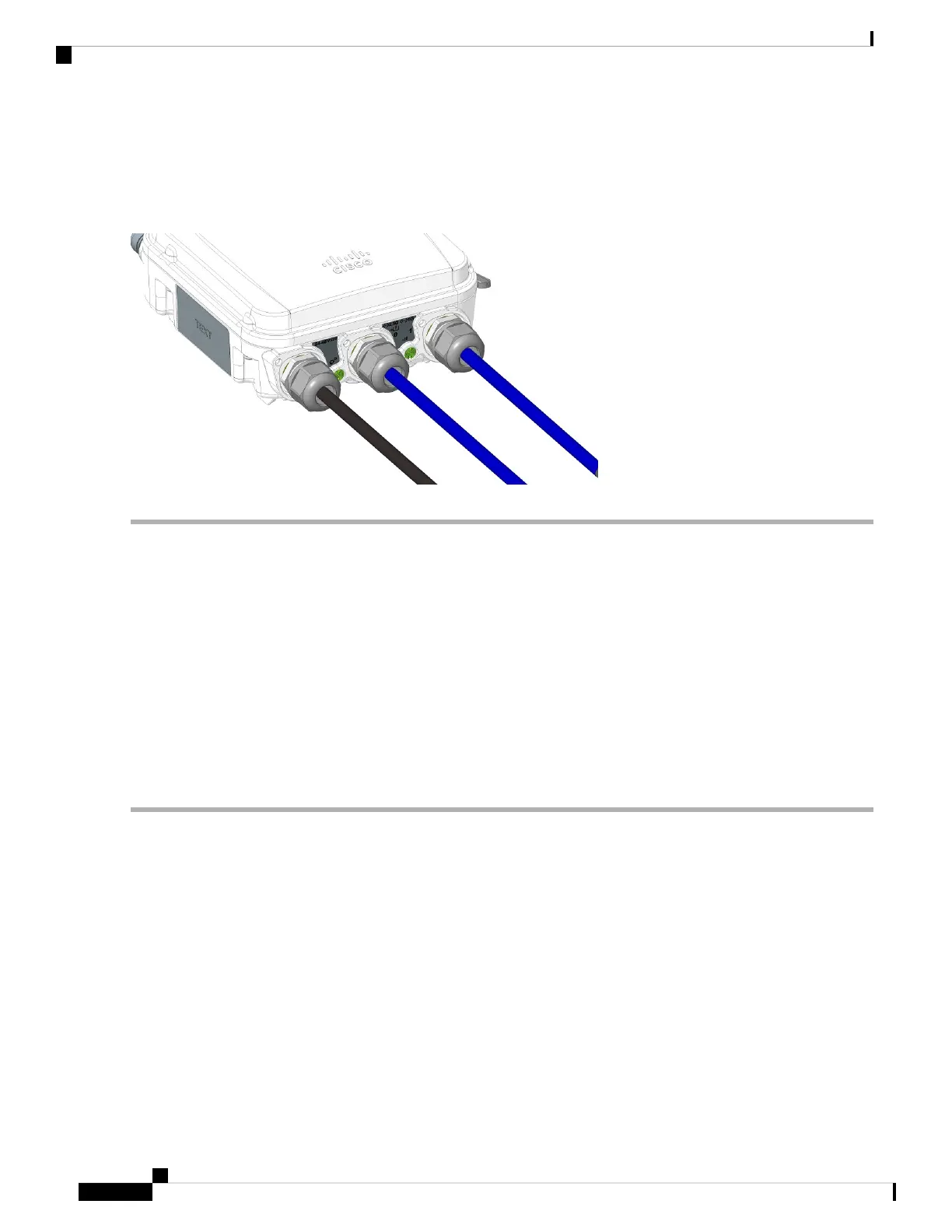

Step 5 Tighten the clamp nut onto the PG13 body until the grommet compresses onto the DC cable.
Connecting DC Power Port Using M12 Adapter
Follow these steps to connect to the DC power port using M12 adapter:
SUMMARY STEPS
1. Ensure the O-ring is installed on the M12 adapter before attaching the M12 adapter to the AP.
2. Align and plug the 4-pin Micro-Fit connector into the power port of the chassis. Press M12-PWR adapter
onto the chassis, and ensure that the wires are not pinched.
3. Torque to 15-20 in-lbs to tighten the M12 adapter captive screws into the chassis.
DETAILED STEPS
Step 1 Ensure the O-ring is installed on the M12 adapter before attaching the M12 adapter to the AP.
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
30
Installation Overview
Connecting DC Power Port Using M12 Adapter
