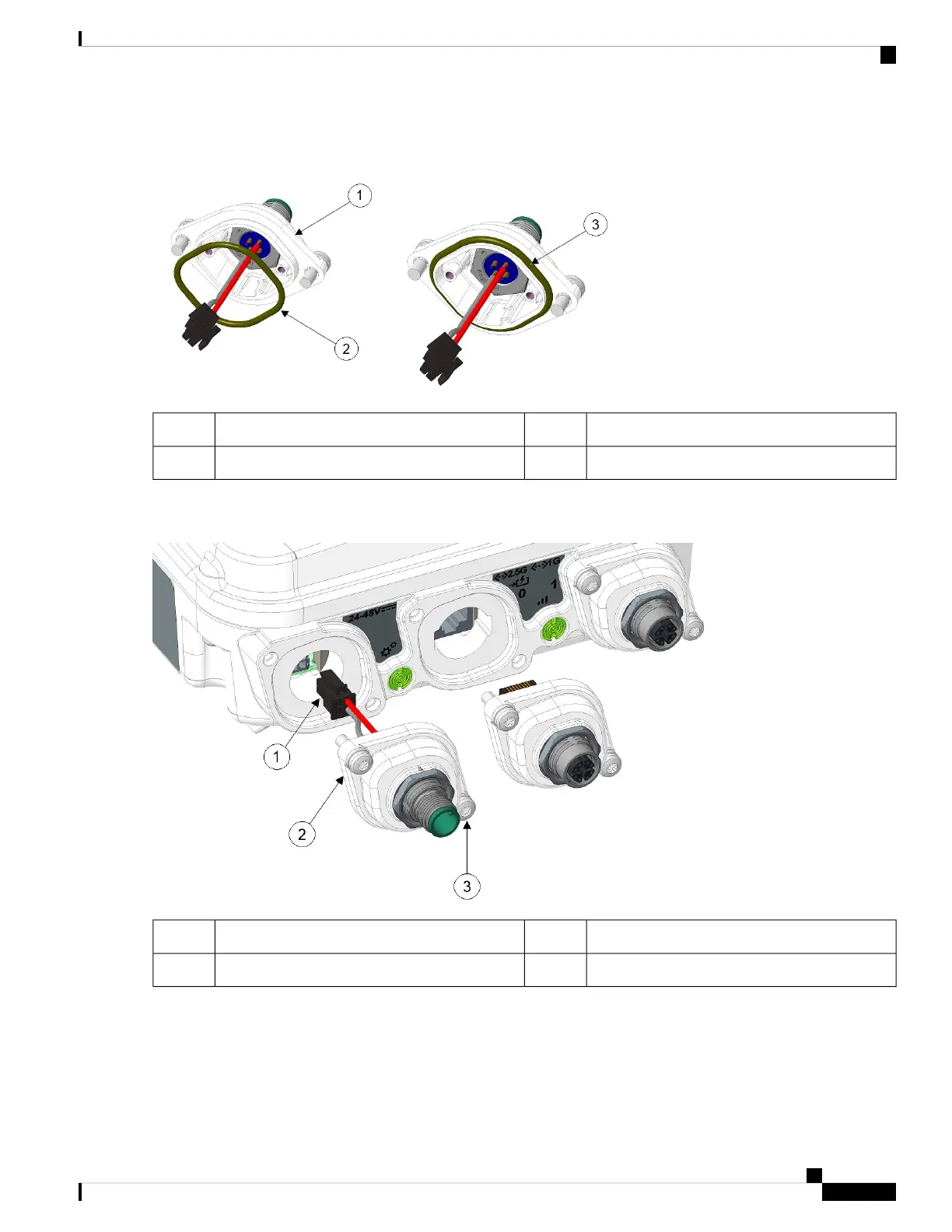

Figure 18: Installing O-ring on the M12 Adapter
O-ring2M12 adapter1
O-ring installed on M12 adapter3
Step 2 Align and plug the 4-pin Micro-Fit connector into the power port of the chassis. Press M12-PWR adapter onto the chassis,
and ensure that the wires are not pinched.
Captive screws34-pin Micro-Fit DC connector1
M12-PWR adapter2
Step 3 Torque to 15-20 in-lbs to tighten the M12 adapter captive screws into the chassis.
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
31
Installation Overview
Connecting DC Power Port Using M12 Adapter
