Connecting to the RJ-45 Port Using M12 Adapter
Follow these steps to connect to the RJ-45 port using M12 adapter:
SUMMARY STEPS
1. Ensure the O-ring is installed on the M12 adapter before attaching the M12 adapter to the AP.
2. Align the RJ-45 tab (3) with the RJ-45 connector in the chassis, and plug the M12 adapter into the chassis.
Note the orientation of RJ45 plug and connector.
3. Torque to 15-20 in-lbs to tighten the M12 adapter captive screws into the chassis.
DETAILED STEPS

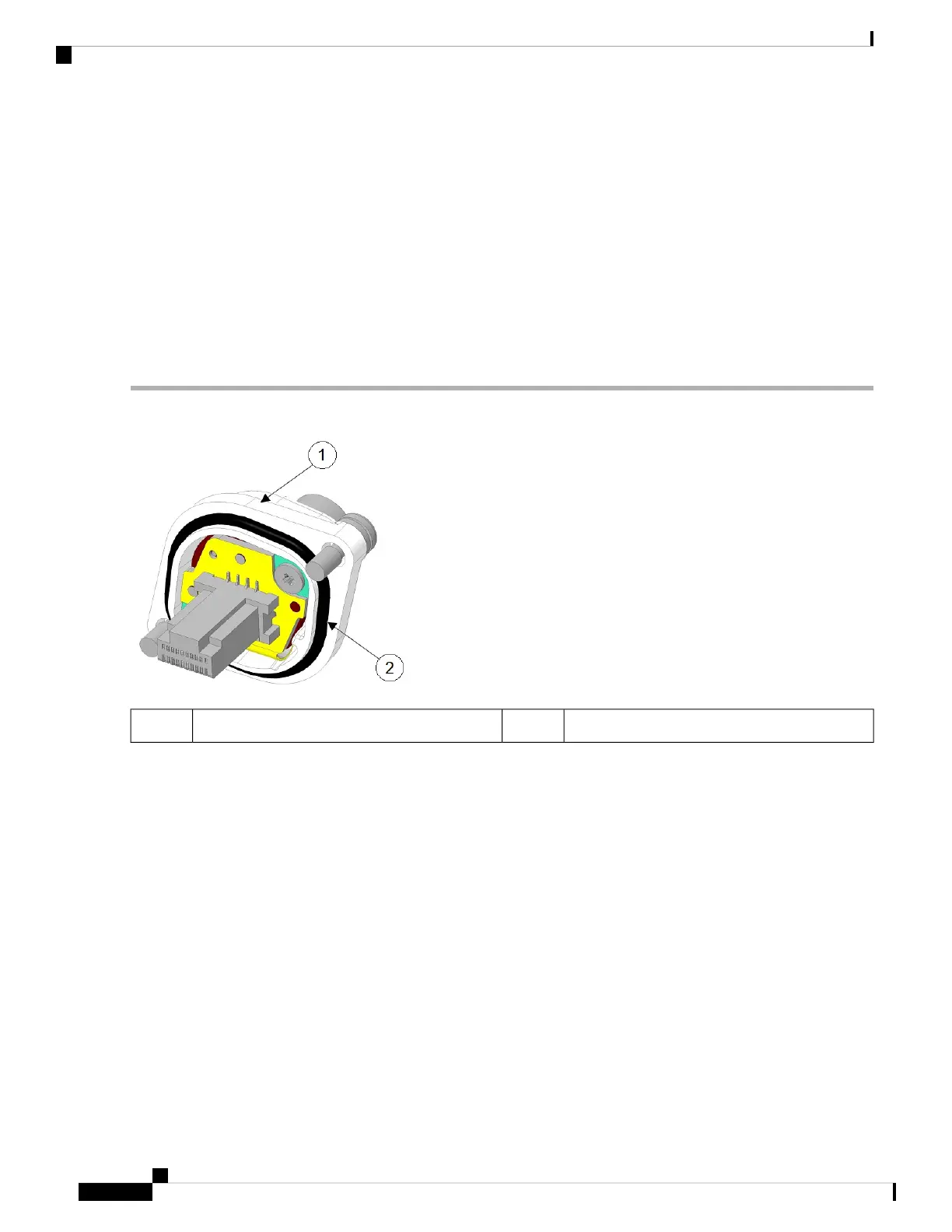

Step 1 Ensure the O-ring is installed on the M12 adapter before attaching the M12 adapter to the AP.
O-ring2M12 adapter1
Step 2 Align the RJ-45 tab (3) with the RJ-45 connector in the chassis, and plug the M12 adapter into the chassis. Note the
orientation of RJ45 plug and connector.
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
34
Installation Overview
Connecting to the RJ-45 Port Using M12 Adapter
