Connections for an SDTV
When using the set-top with an SDTV, you must make one of the following connections
to view content. Some SDTVs may not have all these connections. Refer to your TV user
guides and the cabling diagrams in this guide for more detailed information.
Notes:
• The labeling on your set-top or SDTV may vary slightly.
• Some cables shown in the connection diagrams may not be included with this set-top.
YPbPrS-VideoVideo Out
To TV (Video Out)
Video
Video
Video
Audio
AudioAudio
HDTV
Connections
Required Connections to an SDTV (use one)
Set-Top
Connections

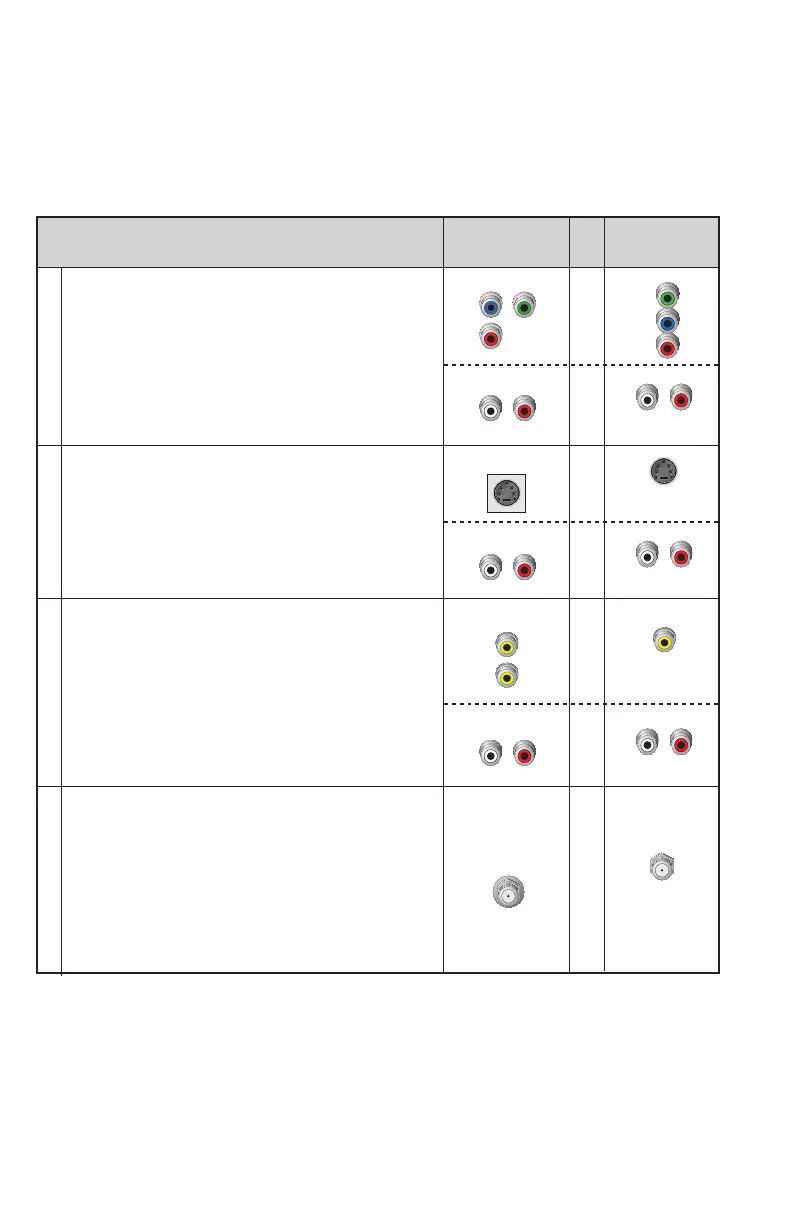

The YPbPr connectors provide standard-defi nition
component video signals to an SDTV.
Note: To connect YPbPr to an SDTV, you must set
the set-top to an output video format that matches
the capabilities of your HDTV (typically only 480i).
See the connection diagram on page 19 for an
example.
The S-Video Out connection provides an optimal
video connection to SDTVs. A separate audio
connection is also needed.
The Video Out connector provides a video connection
to an SDTV. A separate audio connection is also
needed.
The To TV (Video Out) connector provides a video
and audio connection to an SDTV. You must set
the channel on your TV to either channel 3 or
channel 4.
Audio/Video
