Cisco CIS430 User Manual

15
Note: Image may vary from actual product.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top.

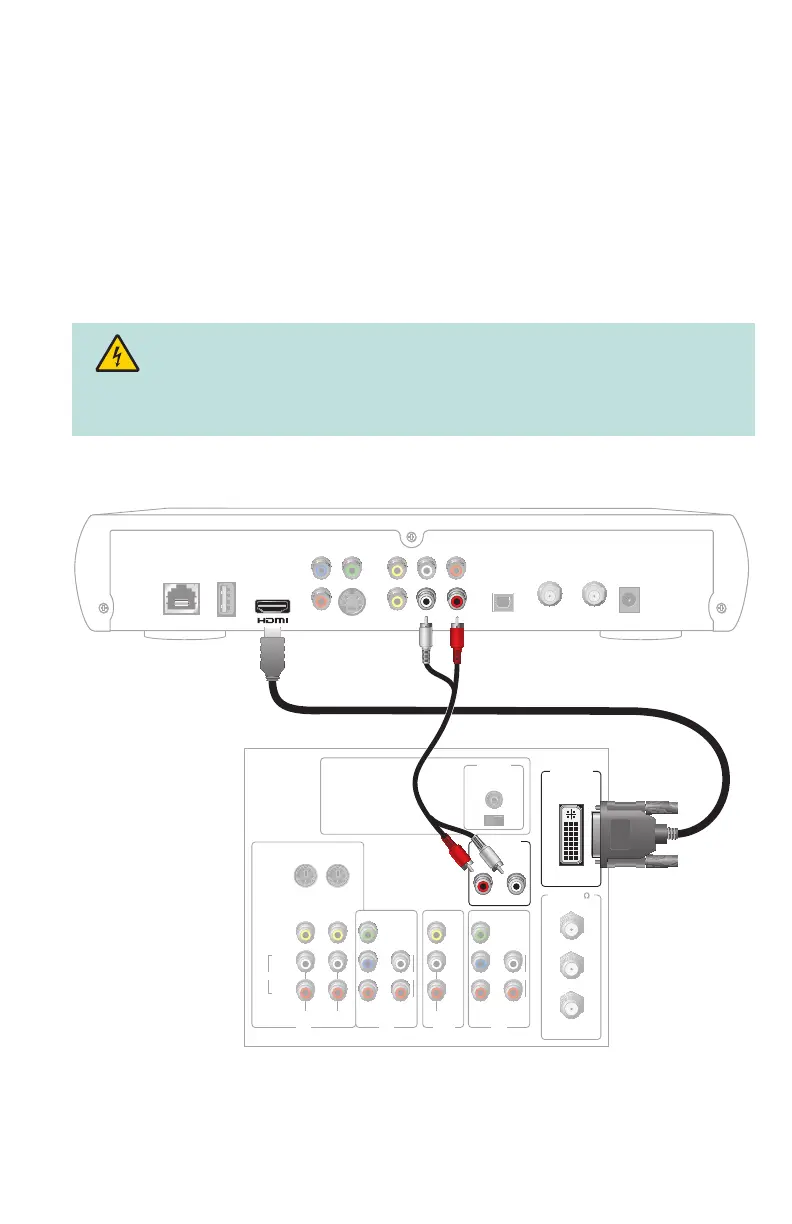

Connecting to an HDTV with a DVI Connector
Cables Used in this Confi guration
• 1 HDMI-to-DVI Cable or 1 HDMI-to-HDMI Cable and 1 HDMI-to-DVI Adapter
• 1 Set Audio Left/Right Cables
Tips:
• The DVI port on the TV must support high-bandwidth digital content protection
(HDCP).
• When you connect the HDMI connector to the DVI connector on your HDTV, you
need an HDMI-to-DVI adapter, and you need a separate audio connection.
CIS430 DVR
T13223
Pb Y
Pr
VIDEO
OUT
AUDIO
OUT
TO WALL
(VIDEO IN)
NETWORK USB
OPTICAL
TO TV
(VIDEO OUT)
POWER
S-VIDEO
LR
Back of HDTV
AUDIO
CENTER
CHANNEL IN
ANT (75 )
INOUT
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO
Y
PB
PR
L
R
AUDIOAUDIO
DVI/HDCP
IN
AUDIO IN
DVI/HDCP
LR

Cisco CIS430 Specifications

General

Brand	Cisco
Model	CIS430
Category	Set-top boxes
Language	English
