Connecting to a Stereo VCR or DVD Recorder
(optional)

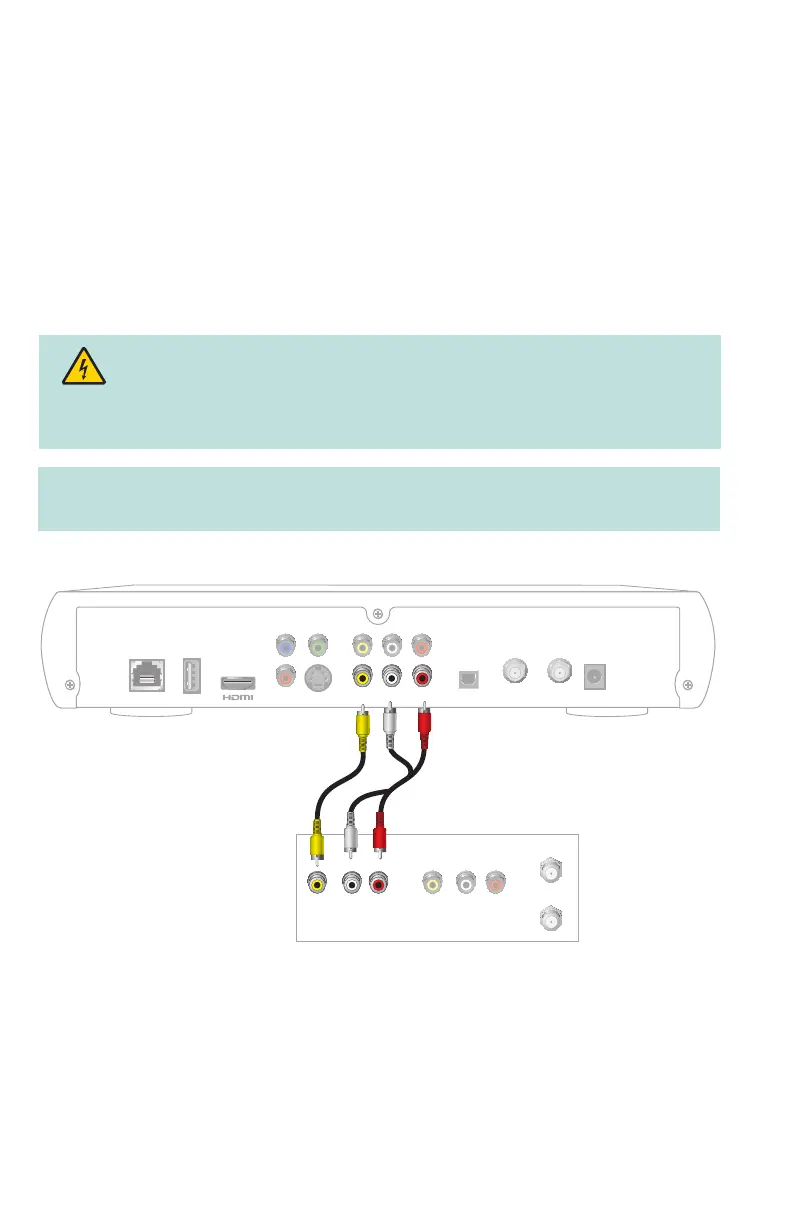

This connection, in addition to some other connections to the TV, allows you to record
and play back programming on your VCR.
Cables Used in this Confi guration
• 1 RCA-type Video Cable
• 1 Set Audio Left/Right Cables
Note: This connection does not provide an HD signal to the TV. You must use one of
the video connections shown on pages 14-16 or page 19 in addition to this connection
to obtain an HD signal to the TV.
Connecting your TV directly to the Audio/Video output of your set-top will
assure a more vivid picture and enhance your viewing enjoyment.
CIS430 DVR
T13226
VIDEO
OUT
AUDIO
OUT
TO WALL
(VIDEO IN)
NETWORK USB
OPTICAL
TO TV
(VIDEO OUT)
POWER
LR
Pr
Pb Y
S-VIDEO
Back of
Stereo VCR or
DVD Recorder
RF OUT
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
RF IN
Note: Image may vary from actual product.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top.
To Next Page
