Cisco ENCS 5400-W Series Quick Start Guide
Unpacking and Installing the ENCS 5400-W Device

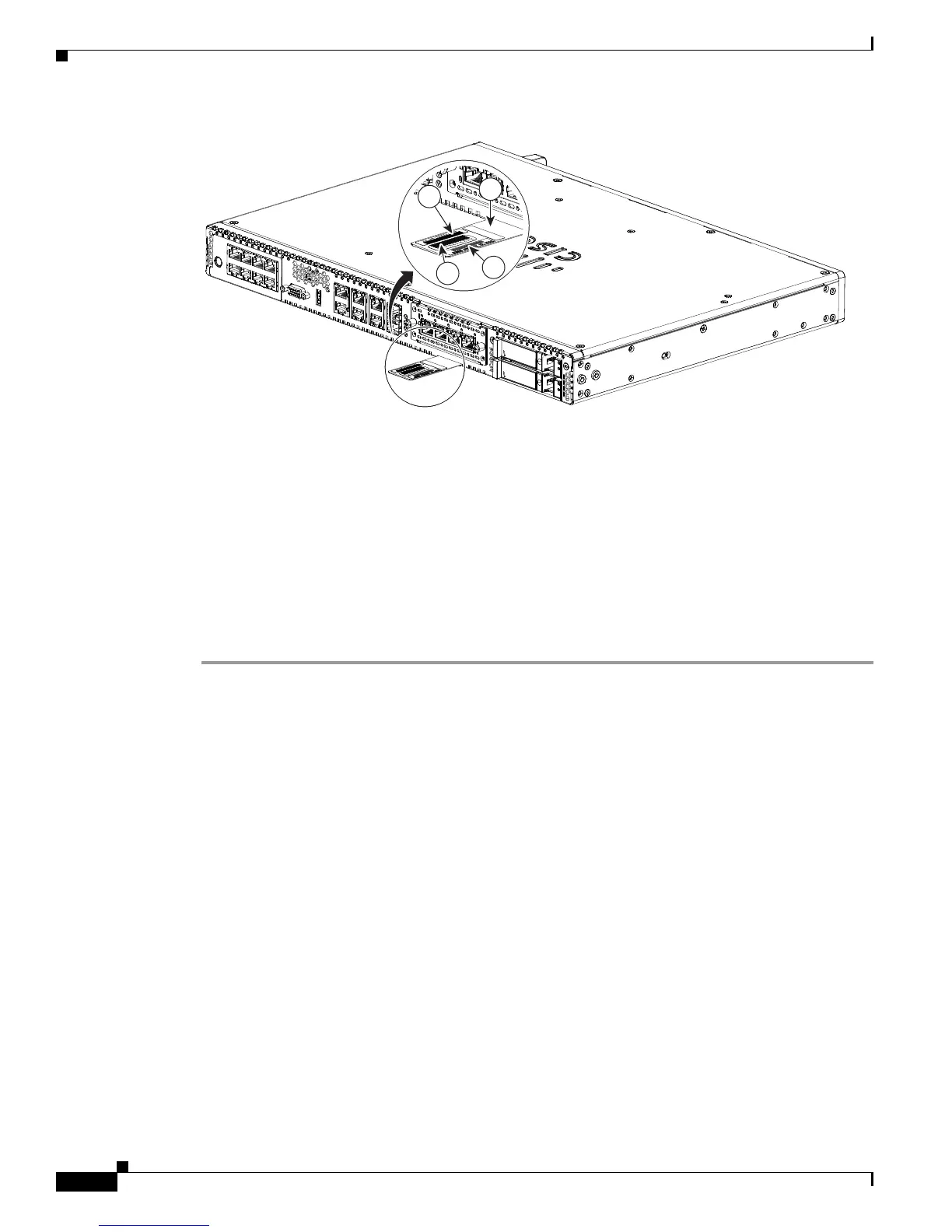

Figure 2 Cisco ENCS 5400-W Series Label Tray
Installing the ENCS 5400-W Device
Before you begin:
• If it is not already installed, the DIMMs, M.2 storage module and RAID card must be installed
before rack-mounting or wall-mounting the chassis.
• We recommend that you install the power supply when you have the best access to the back panel
of the device; this could be before or after you mount the device.
To install the ENCS 5400-W device, follow these steps.
Step 1 You can rack-mount the chassis (Step 2) or wall-mount the chassis (Step 3).
Step 2 To rack-mount the chassis:
a. You can install the ENCS 5400-W in 19-inch (48.26-cm) racks. Use the standard brackets shipped
with the router for mounting the chassis in a 19-inch EIA rack.
You can mount the device in the following ways:
• Front mounting—Brackets attached at the front of the chassis with the front panel facing
forward (Figure 3).
