Cisco Expressway CE1200 Installation Guide

Front Panel Layout
This section details the front panel layout, LEDs and ports.

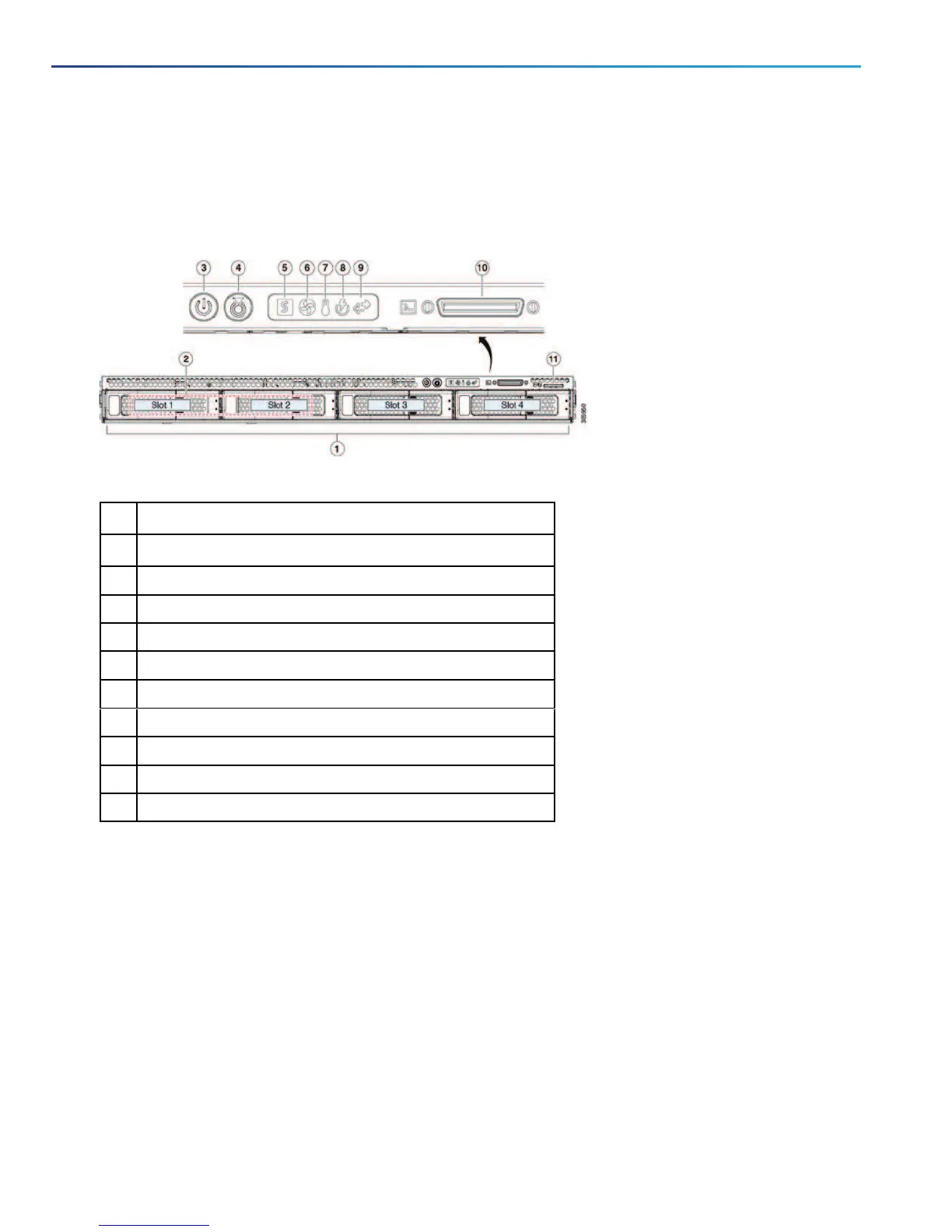

Figure 1 Front view of the Cisco Expressway
1 HD drives (use Slot 1 and Slot 2 only)
2
Activity/fault LED for HD drives
3 Power button/power status LED
4 Identification button LED
5 System status LED
6 Fan status LED
7 Temperature status LED
8 Power supply status LED
9 Network link activity LED
10 KVMconnector (for USB/VGA connection)
11 Pullout tab for UCS serial number, MAC addresses
Table 3 Front panel LEDs and components
8
Cisco Expressway CE1200 Appliance Installation Guide
Front Panel Layout
