Product Documentation and Compliance Information for the Cisco IE 4010 and Cisco IE 5000 Switches—Documentation sur le
produit et informations relatives à la conformité pour les commutateurs Cisco IE 4010 et Cisco IE 5000.
Installing a Power-Supply Module—Installation d'un module d'alimentation

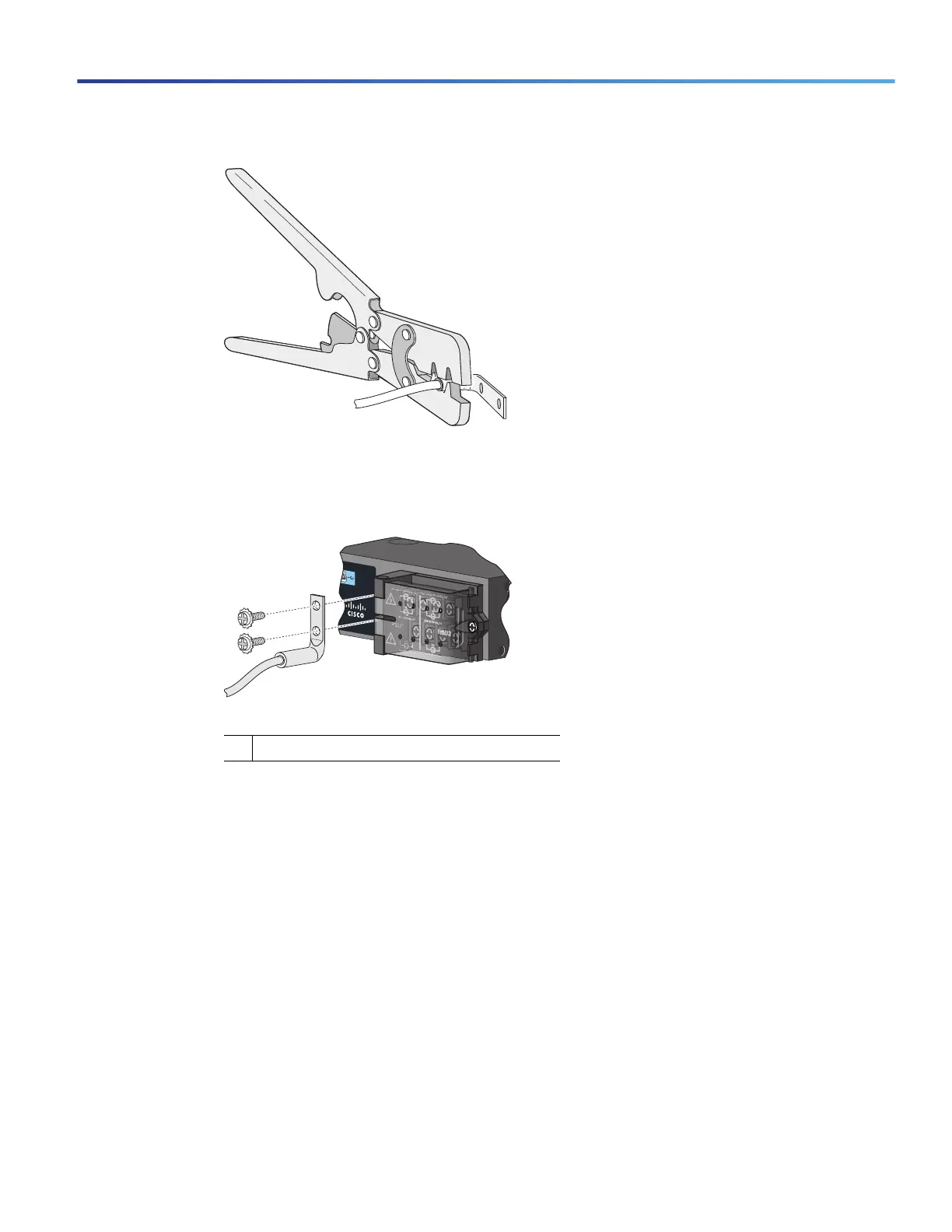

Figure 2 Crimping the Terminal Lug
4. Slide the ground screw from Step 1 through the terminal lug. Insert the ground screws into the opening on the cable
side.
Figure 3 Attaching the Terminal Lug
5. Use a ratcheting torque screwdriver to tighten the ground screws to 30 in-lb (± 2 in-lb) or 3.39 Nm (± 0.23 Nm).
6. Attach the other end of the ground wire to a grounded bare metal surface, such as a ground bus or a grounded bare
rack.
Installing the Power-Supply Module in the Switch
1. We recommend that power be off at the AC or DC circuits. Locate the circuit breakers, turn them OFF, and tape them
in the OFF position.
Note If the power is not off at the AC or DC circuit breaker, do not touch the power-input terminal.
2. Use a Phillips screwdriver to loosen the two captive screws of the blank power-supply module and gently pull it out.
See Figure 4 and Figure 5.
280938
1 Dual-hole terminal lug
Cisco IE 3010
208335
