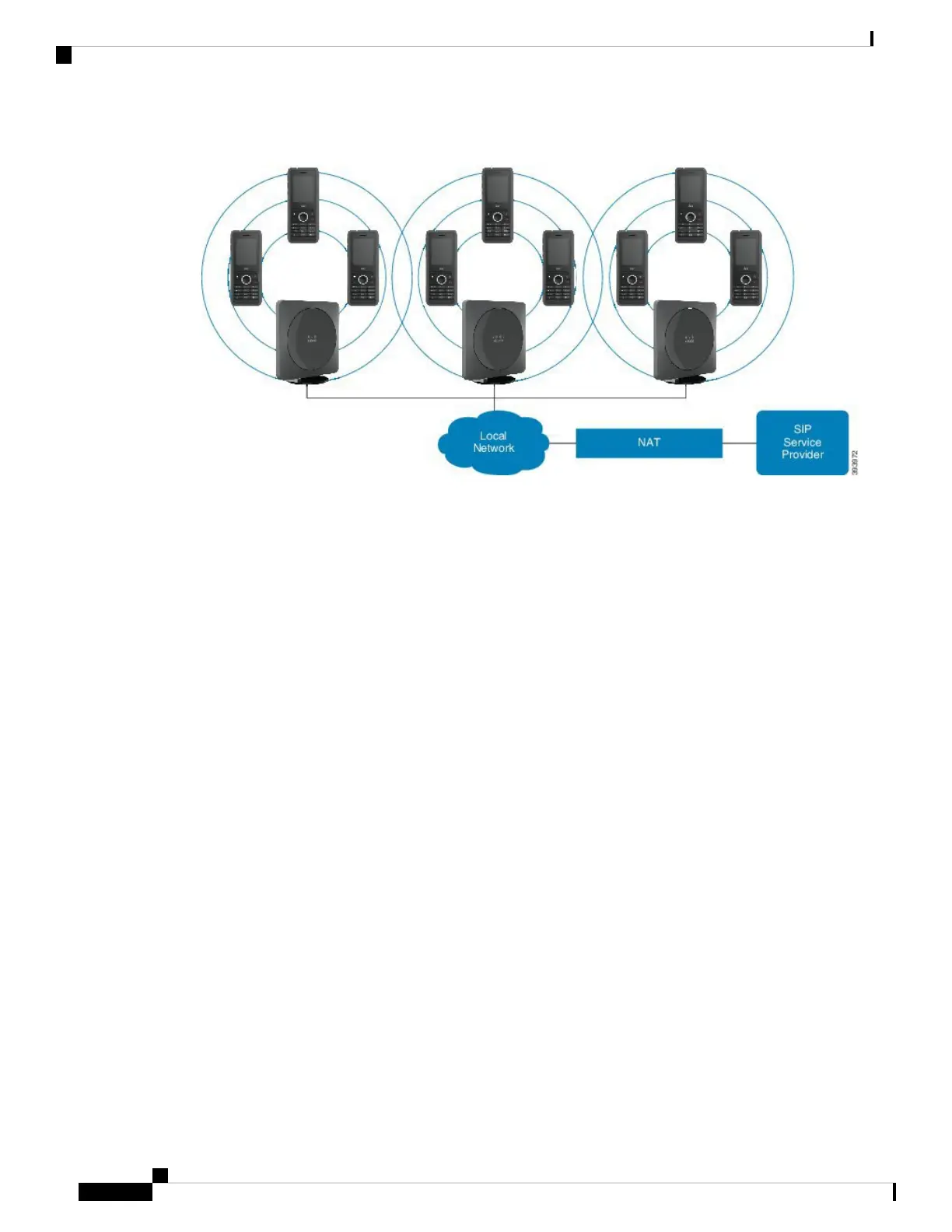

Figure 2: Multicell Network
Base Station Package Contents
Your base station package has the following contents:
• Base station
• Base station stand
• Ethernet cable
• Regional power adapter
• USB-to-power jack cable
• Mounting screws and plugs
• Printed compliance document
If you want to mount the base station on the ceiling, you need to order a separate ceiling mount kit.
Power Requirements
The base station requires one of these power sources:
• Power over Ethernet (PoE) - minimum IEEE 802.3: Power class 2 (3.84 – 6.49W)
• Power adapter specific to your region with a USB-to-power jack cable. The power adapter is plugged
into an electrical outlet.
The handset is powered by a 3.7V, 1000mAh, 4.1Wh, Lithium ion battery.
The handset charger power cable plugs into the regional power adapter, and the power adapter must be plugged
into an electrical outlet.
Hardware Installation
4
Hardware Installation
