Chapter 1 An Overview of the Cisco Unified IP Phones
Understanding the Cisco Unified IP Phone 7962G and 7942G 7962G, 7942G, 7961G, 7961G-GE, 7941G, and 7941G-GE

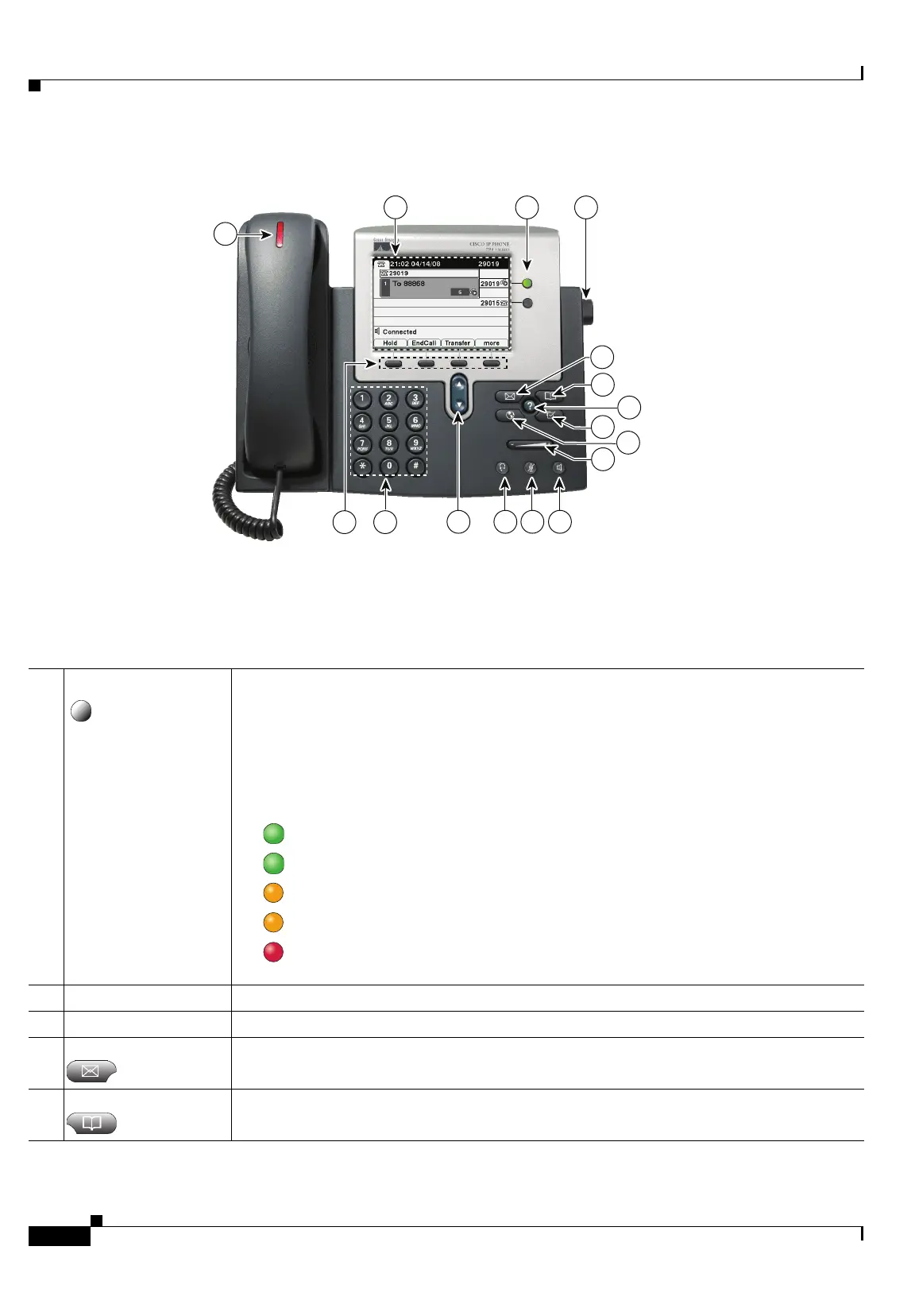

Figure 1-4 Cisco Unified IP Phone 7941G and 7941G-GE
Table 1-1 describes the buttons on the Cisco Unified IP Phone 7962G and 7942G.
Ta b l e 1-1 Features on the Cisco Unified IP Phones 7962G, 7942G, 7961G, 7961G-GE, 7941G, and 7941 G-GE
186846
4
5
6
7
9
101112131415
16
13
8
1
2
1 Programmable buttons Depending on configuration, programmable buttons provide access to:
• Phone lines (line buttons)
• Speed-dial numbers (speed-dial buttons, including the BLF speed-dial feature)
• Web-based services (for example, a Personal Address Book [PAB] button)
• Phone features (for example, a Privacy button)
The buttons illuminate to indicate status:
Green, steady—Active call
Green, flashing—Held call
Amber, steady—Privacy in use
Amber, flashing—Incoming call
Red steady—Remote line in use (shared line, BLF status, or active Mobile Connect
call)
2 Phone screen Shows phone features.
3 Footstand button Allows you to adjust the angle of the phone base.
4 Messages button Dials your voice-message service automatically (varies by service).
5 Directories button Opens/closes the Directories menu. Use the button to access call logs and directories.
