Ethernet management
ports (2)
6
Rear View
The following figure shows the rear view of a Cisco MDS 9396T Switch:.

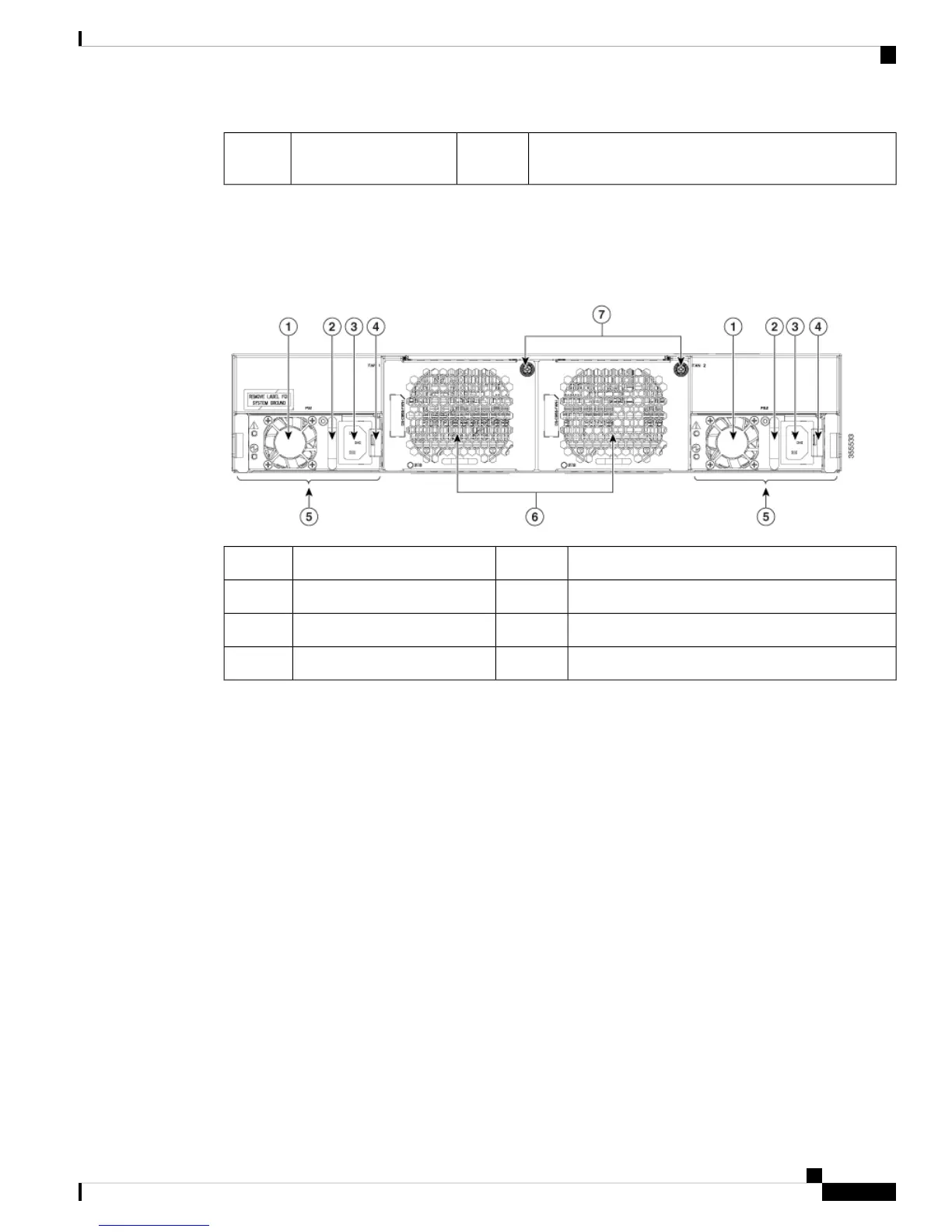

Figure 2: Rear view of the Cisco MDS 9396T Switch
Power supply units (2)5Power supply unit fan1
Chassis fan modules (2)6Power supply unit handle2
Fan module locking screw7Power receptacle3
Power supply unit locking latch4
Grounding Point
The rear of the Cisco MDS 9396T switch also contains the grounding point which is located under a label.
