Installing the Switch
• For 24-inch racks, use part number RCKMNT-24IN-1RU (700-13248-XX), and see Figure 2-7 on
page 2-11.
• For ETSI racks, use part number RCKMNT-ETSI-1RU= (700-19781-XX), and see Figure 2-8 on
page 2-12. The Cisco ME 3400EG-2CS-A does not support the ETSI racks.
Attaching Brackets for 19-Inch Racks
Figure 2-4 shows how to attach brackets for 19-inch racks on all switches except the
Cisco ME 3400EG-2CS-A.

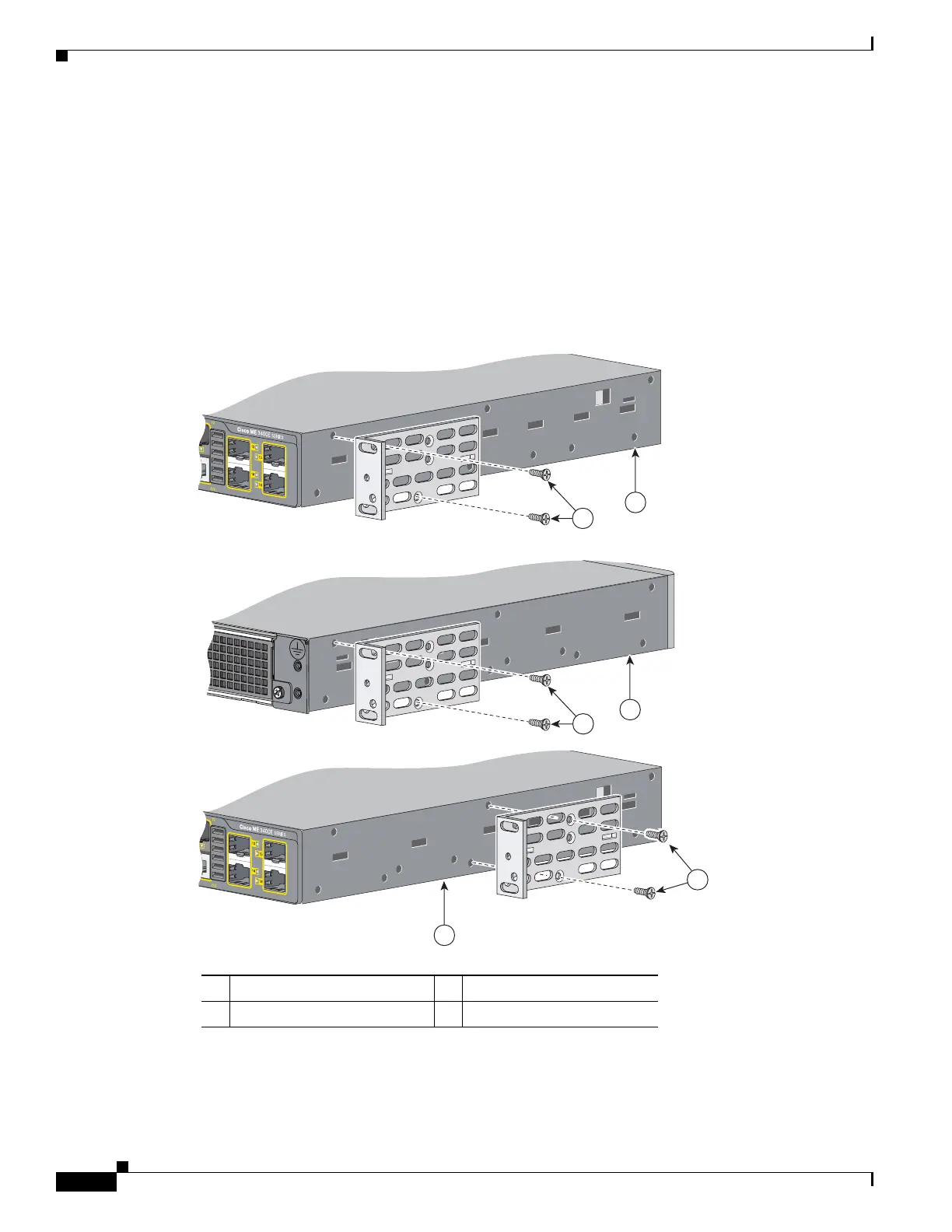

Figure 2-4 Attaching Brackets for 19-Inch Racks
1 Phillips flat-head screws 3 Rear-mounting position
2 Front-mounting position 4 Mid-mounting position
