2-7
Cisco ME 3400E Ethernet Access Switch Hardware Installation Guide
OL-16447-01
Chapter 2 Switch Installation
Installing the Switch
Attaching Brackets to the Switch
The bracket orientation and the brackets that you use depend on whether you are attaching the brackets
for a 19-inch, 23-inch, 24-inch, or an ETSI rack. Figure 2-3 shows the standard types of mounting
brackets.

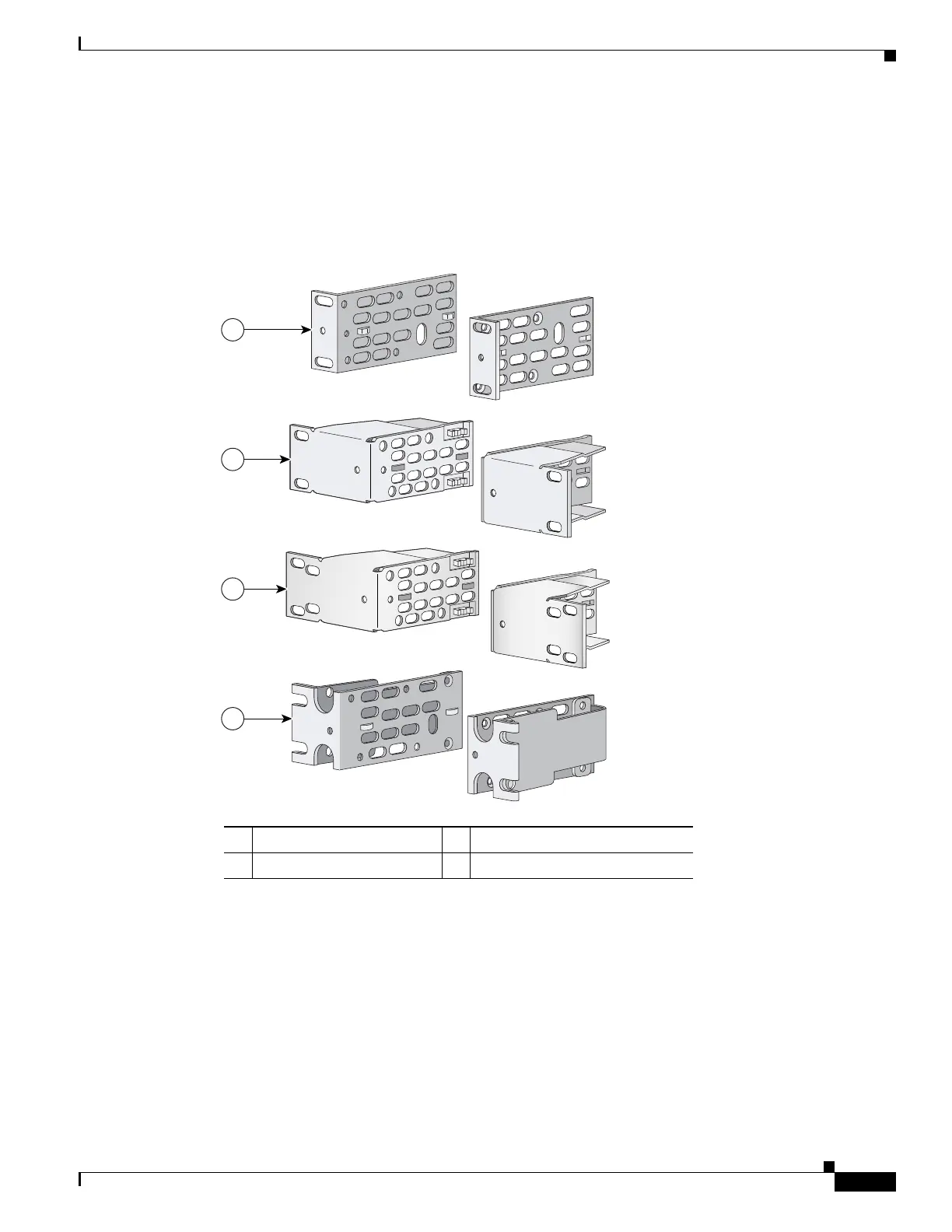

Figure 2-3 Rack-Mounting Brackets
•
For 19-inch racks, use part number RCKMNT-19IN-1RU (700-08209-XX) on all except the
Cisco ME 3400EG-2CS-A, and see Figure 2-4 on page 2-8. For the
Cisco ME 3400EG-2CS-A, use RCKMNT-19-CMPCT= (700-23401-XX), and see Figure 2-5 on
page 2-9.
• For 23-inch racks, use part number RCKMNT-23IN-1RU (700-21646-XX) on all except the
Cisco ME 33400EG-2CS-A, and see Figure 2-6 on page 2-10. For the
Cisco ME 3400EG-2CS-A, use RCKMNT-23-CMPCT= (700-23402-01).
1 19-inch brackets 3 24-inch rack-mounting brackets
2 23-inch mounting brackets 4 ETSI-rack brackets
