Cisco ME 3400E Ethernet Access Switch Hardware Installation Guide
OL-16447-01
Chapter 2 Switch Installation
Installing the Switch
Attaching Brackets on Cisco ME 3400EG-2CS-A for 19-Inch, 23-Inch, and 24-Inch Racks
Figure 2-5 shows how to use the tab on the bracket and the Phillips flat-head screw to attach the short
side of each bracket to the switch.

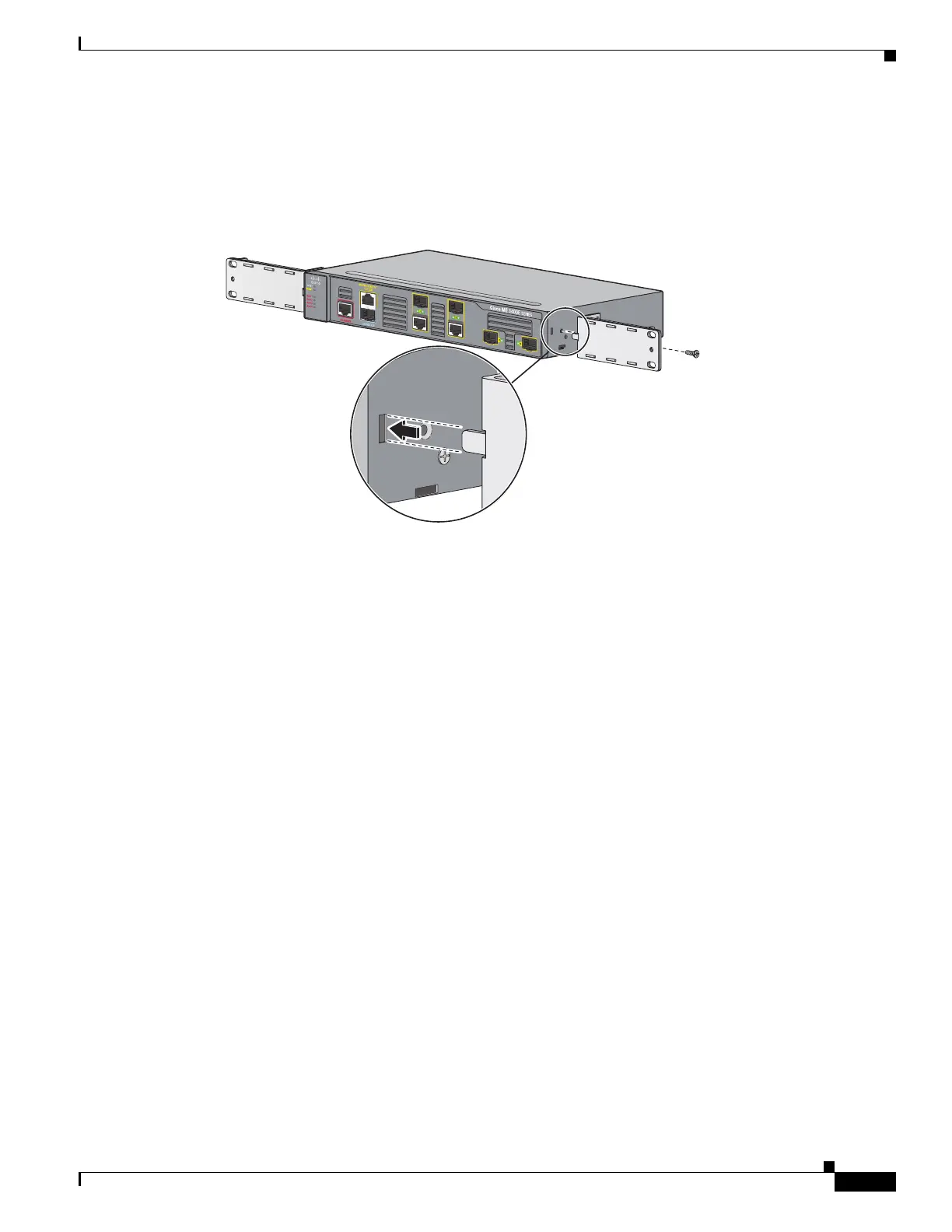

Figure 2-5 Attaching Brackets for 19-Inch, 23-Inch, and 24-Inch Racks
