Chapter 2 Switch Installation
Installing the Switch
Attaching Brackets to the Switch
The bracket orientation and the brackets that you use depend on whether you are attaching the brackets
for a 19-inch, 23-inch, or an ETSI rack. Figure 2-1 shows the types of mounting brackets.

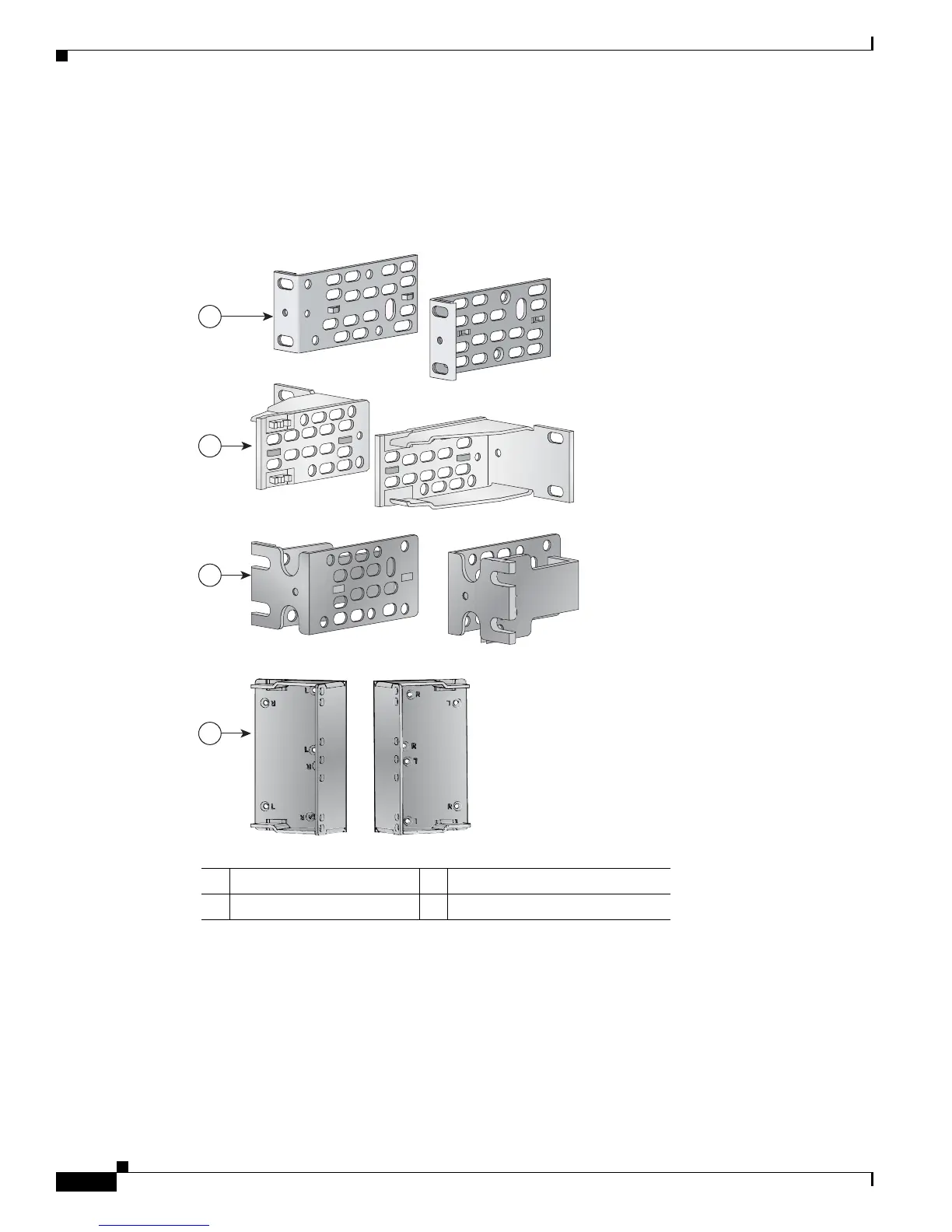

Figure 2-1 Rack-Mounting Brackets
•
For 19-inch racks, use part number RCKMNT-ME3KX-19IN (see Figure 2-2 on page 2-7).
• For 23-inch racks, use part number RCKMNT-ME3KX-23IN (see Figure 2-3 on page 2-8).
• For ETSI racks, use part number RCKMNT-ME3KX-ETSI (see Figure 2-4 on page 2-9).
• For 23-inch racks using the angle bracket, use part number RCKMNT-ME3KX-ANG
(see Figure 2-5 on page 2-10).
1 19-inch brackets 3 ETSI-rack brackets
2 23-inch brackets 4 23-inch angle brackets
207472
1
2
3
4
