1-2
Cisco ME 3800X and ME 3600X Switch Hardware Installation Guide
OL-22168-01
Chapter 1 Product Overview
Front Panel
Front Panel
Note The front panel is the same for the Cisco ME 3800X-24FS-M and Cisco ME 3600X-24FS-M.
Figure 1-1 shows the Cisco ME 3800X-24FS-M front panel.
The SFP downlink ports are grouped in pairs. The first member of the pair (port 1) is above the second
member (port 2). Port 3 is above port 4, and so on.

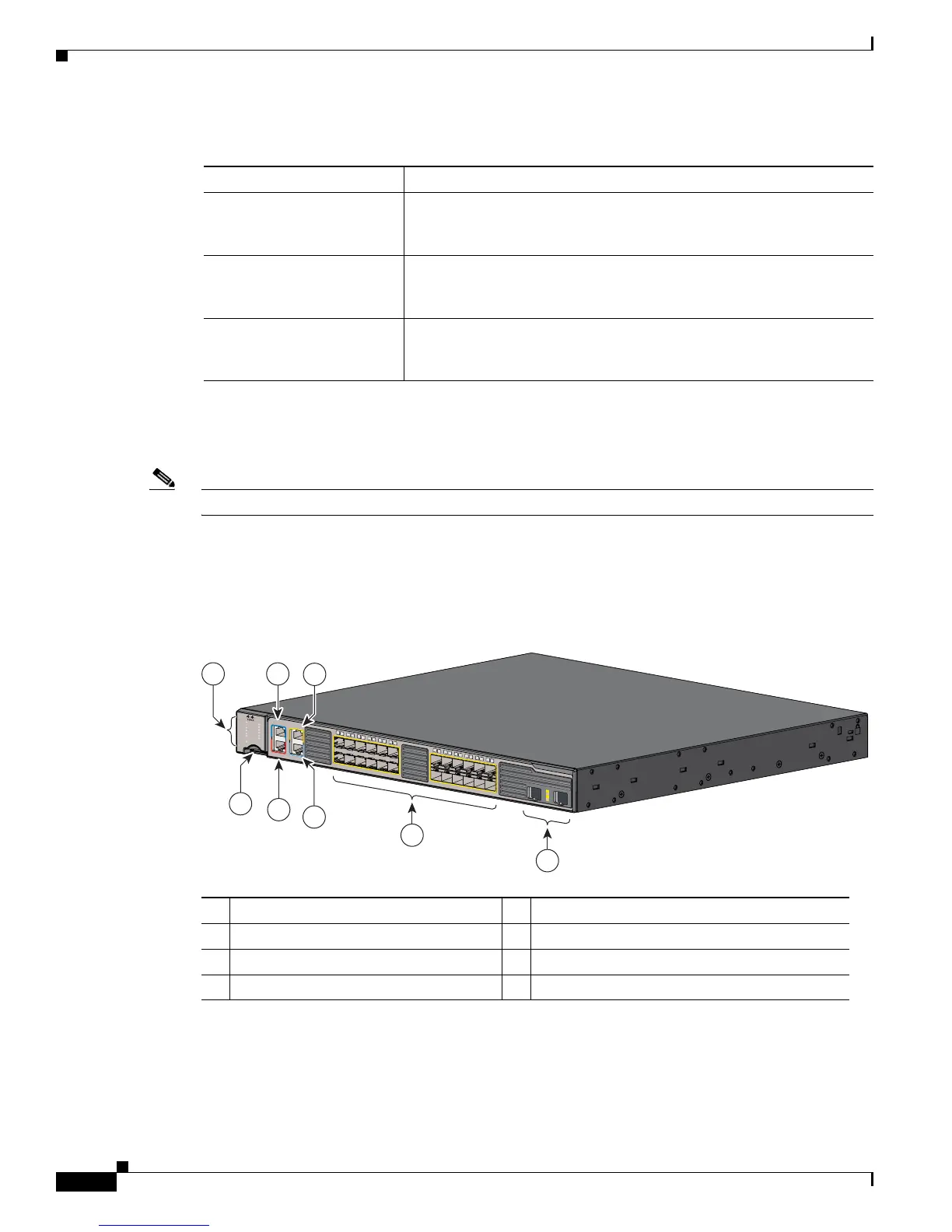

Figure 1-1 Cisco ME 3800X-24FS-M Front Panel
Table 1-1 Cisco ME 3800X and ME 3600X Models and Descriptions
Switch Model Description
Cisco ME-3800X-24FS-M 24 Gigabit Ethernet small form-factor pluggable (SFP) downlink ports
and 2 SFP+ (10 Gigabit) uplink ports; supports removable,
hot-swappable AC and DC input power supply and fan modules.
Cisco ME-3600X-24FS-M 24 Gigabit Ethernet SFP downlink ports and 2 SFP+ (10 Gigabit)
uplink ports; supports removable, hot-swappable AC and DC input
power supply and fan modules.
Cisco ME-3600X-24TS-M 24 10/100/1000BASE-T copper downlink ports and 2 SFP+
(10 Gigabit) uplink ports; supports removable, hot-swappable AC and
DC input power supply and fan modules.
1 LEDs 5 BITS port
2 SD flash card slot 6 Ethernet management port
3 Alarm input port 7 SFP module ports (downlink)
4 Console port 8 SFP+ module slots (uplink)
207443
ALM 4
SYNC
ALM 2
ALM 1
MGMT
ALM 3
PS/FAN 1
PS/FAN 2
SD CARD
PS IN 2
PS IN 1
SYST
2X
12X 24X
14X
CONSOLE
MGMT
ALARM S
BITS
1
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
5
7
3
6
1
4
2
8
