Cisco ME 3800X and ME 3600X Switch Hardware Installation Guide
OL-22168-01
Appendix B Connector and Cable Specifications
Cables and Adapters
Cable Pinouts

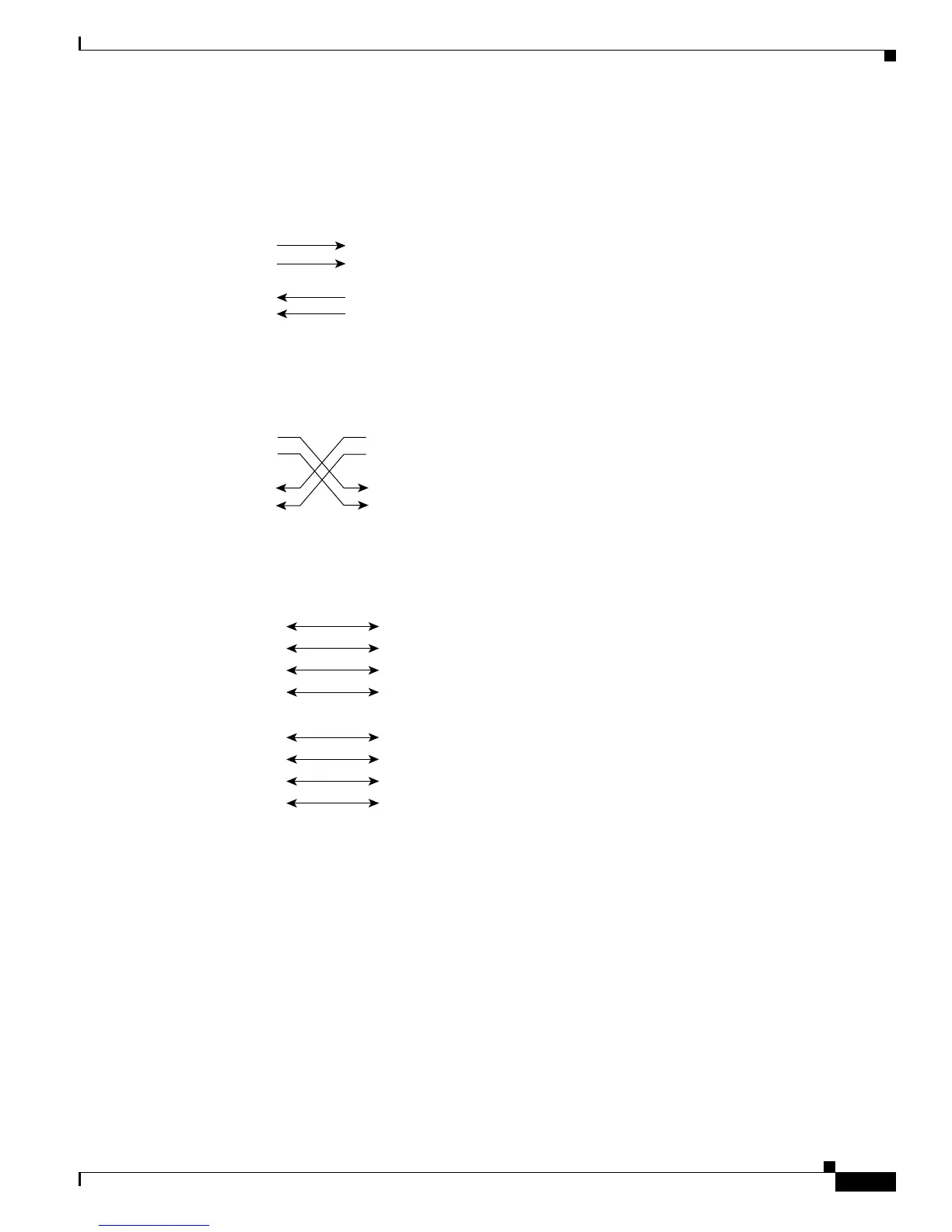

Figure B-8 Two Twisted-Pair Straight-Through Cable Schematic
Figure B-9 Two Twisted-Pair Crossover Cable Schematic
Figure B-10 Four Twisted-Pair Straight-Through Cable Schematic for 1000BASE-T Ports
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+
6 RD–
1 TD+
2 TD–
H5578
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+
6 TD–
1 RD+
2 RD–
H5579
1 TP0+
2 TP0-
3 TP1+
6 TP1-
1 TP0+
2 TP0-
3 TP1+
6 TP1-
Switch Router or PC
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
65271
