Chapter 2 Switch Installation
Installing the Switch
Mounting the Switch Using 23-Inch Angle Brackets
This warning applies to rack-mounted switches that use angle brackets:
Warning Suitable for mounting on and over a concrete or other non-combustible surface only. Statement 345
Note The front of the switch extends approximately 5 inches from the front of the rack (including space for
cables), and the rear of the switch extends approximately 10 inches into the rack.

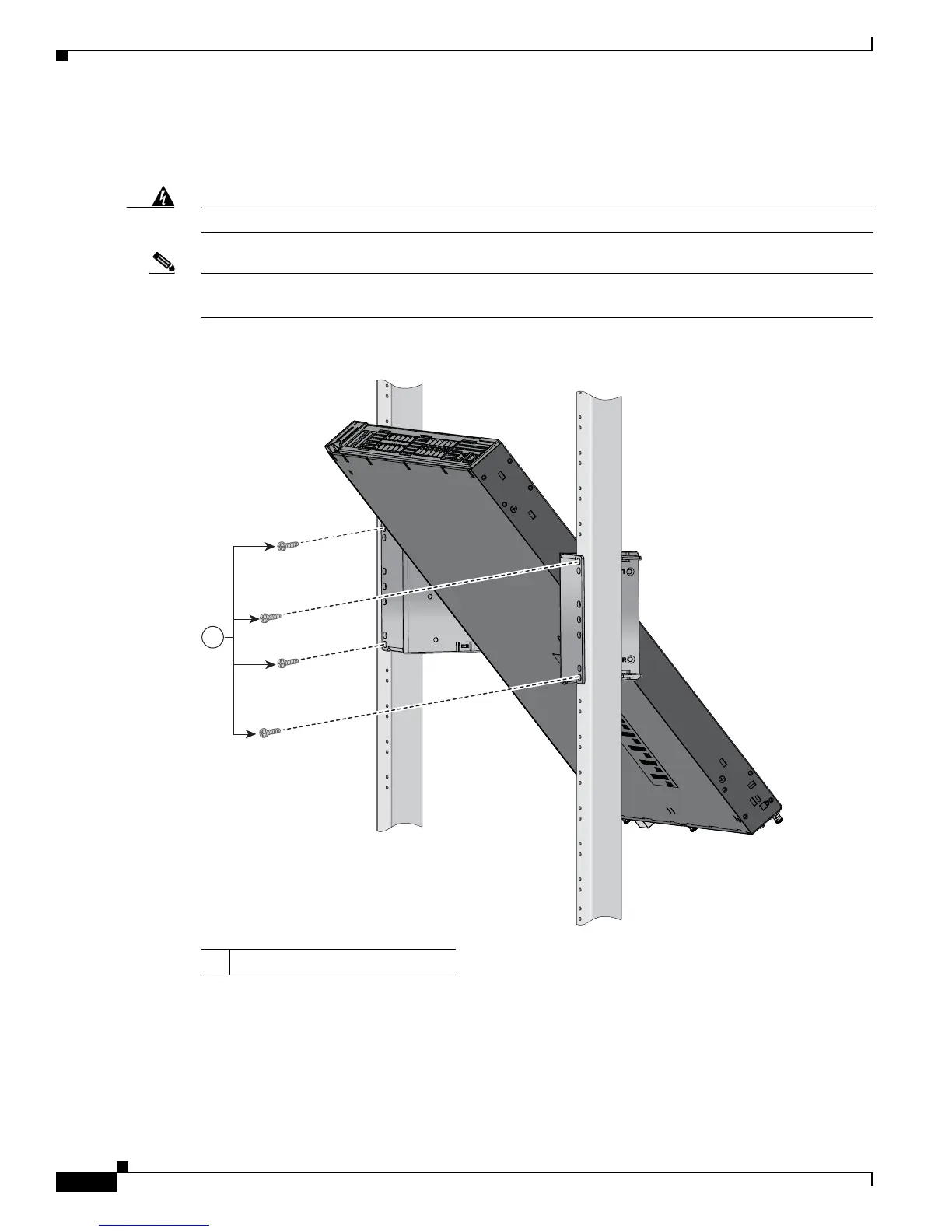

Figure 2-7 Mounting the Switch
1 Phillips machine screws
279253
1
