3-3
Cisco ME 3800X and ME 3600X Switch Hardware Installation Guide
OL-22168-01
Chapter 3 Installing and Removing AC and DC Input Power Supply and Fan Modules
Fan Module Description
Fan Module Description
The fan module provides cooling and proper airflow when only one power supply module is installed.
Caution Both slots must be occupied either by two power supply modules or a power supply and a fan module.
Do not run the switch with an empty slot unless you are replacing a faulty power supply or fan module.
Running the switch with an empty slot triggers an alarm.
Each fan module contains three fans. The switch can operate safely if one fan fails. A fan failure triggers
an alarm. When a fan fails, replace the fan module immediately.

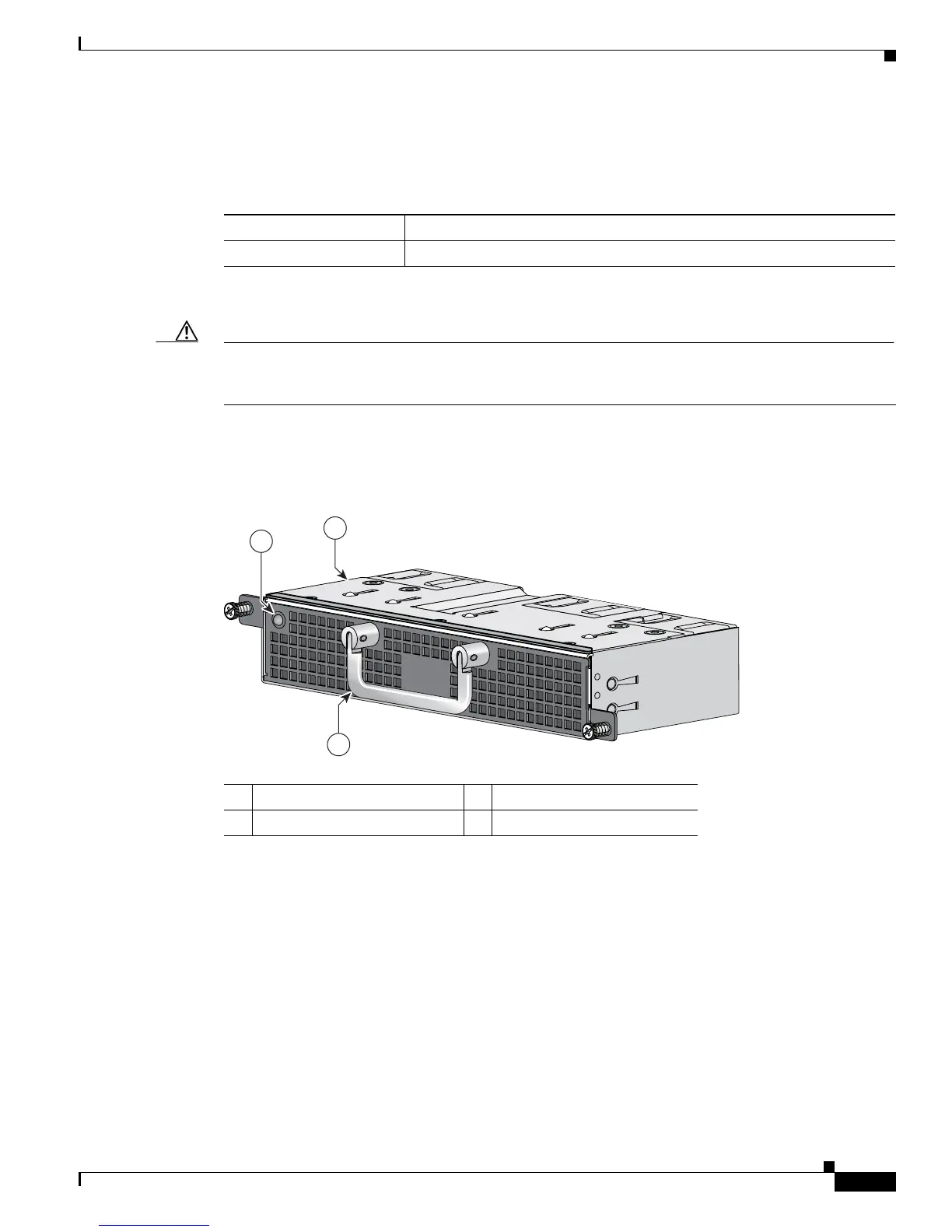

Figure 3-3 Fan Module Handle Side
Connector-Side Description
Figure 3-4 shows the connector side of the power supply and fan module, which connects to the switch
rear panel through its power supply module slot.
Table 3-2 Fan Module Model Number and Description
Model number Description
ME-FANTRAY Fan module
1 Fan module 3 Extraction handle
2 Fan module status LED
FAN
2
1
3
207448
