Cisco Meraki MR18 Installation Guide

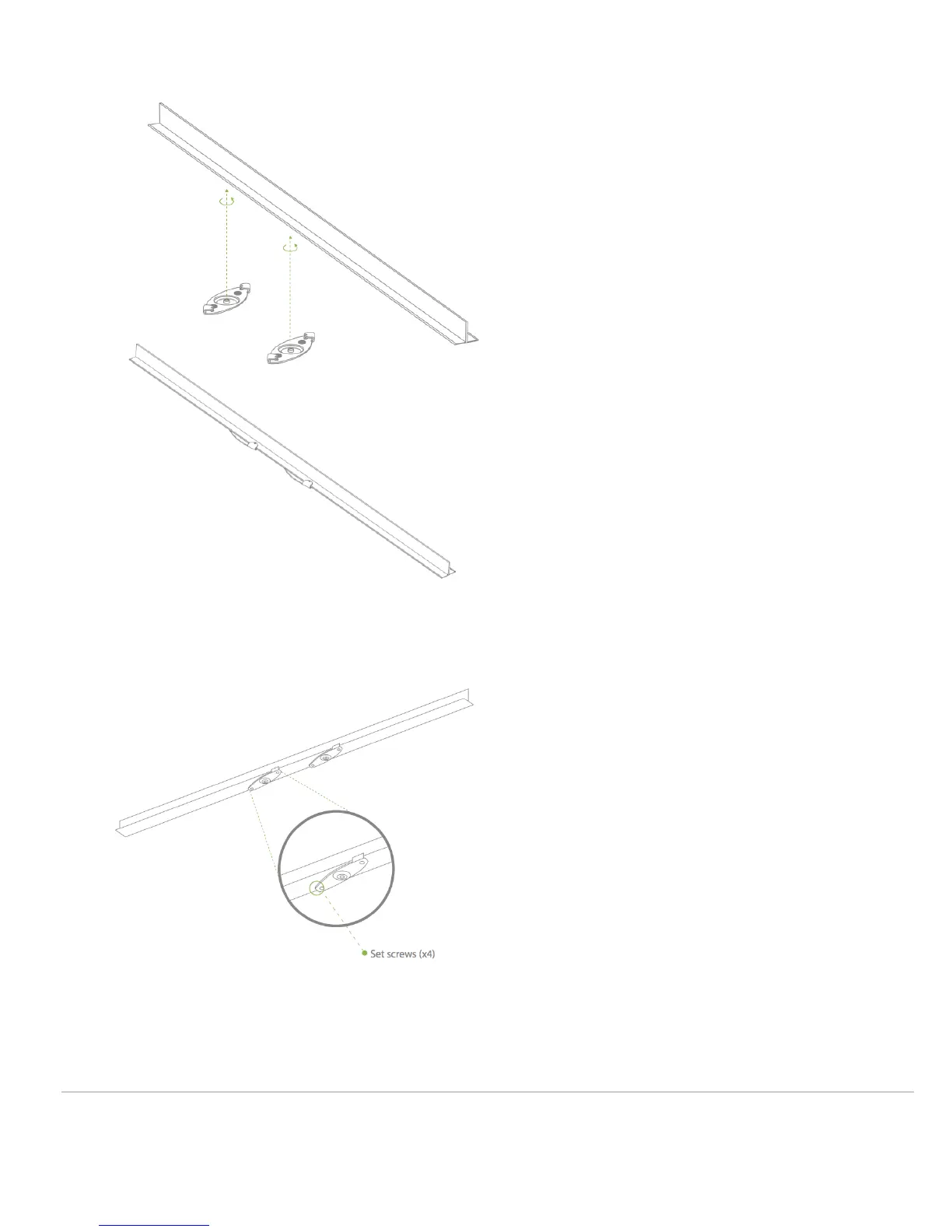

2. Using the dashed lines on the mount cradle template as a guide, set the proper spacing of the T-rail clips on the T-
rail.
3. Tighten the set screws on the T-rail clips to secure the clips using a 5/64”(2 mm) hex key.
4. Attach the mount cradle to the T-rail clips using the mount cradle holes (marked with a “T“).
11

Cisco Meraki MR18 Specifications

General

Wireless Standards	802.11a/b/g/n
Frequency Bands	2.4 GHz and 5 GHz
MIMO	2x2
Power over Ethernet (PoE)	802.3af
Max Data Rate	600 Mbps
Operating Temperature	0°C to 40°C (32°F to 104°F)
Ethernet Ports	1 x 10/100/1000 Mbps
Antenna	Internal
Antenna Gain	2.4 GHz: 3 dBi, 5 GHz: 5 dBi
Power Method	PoE or 12V DC power adapter
Mounting	Wall, ceiling
Security	WPA2-Enterprise
