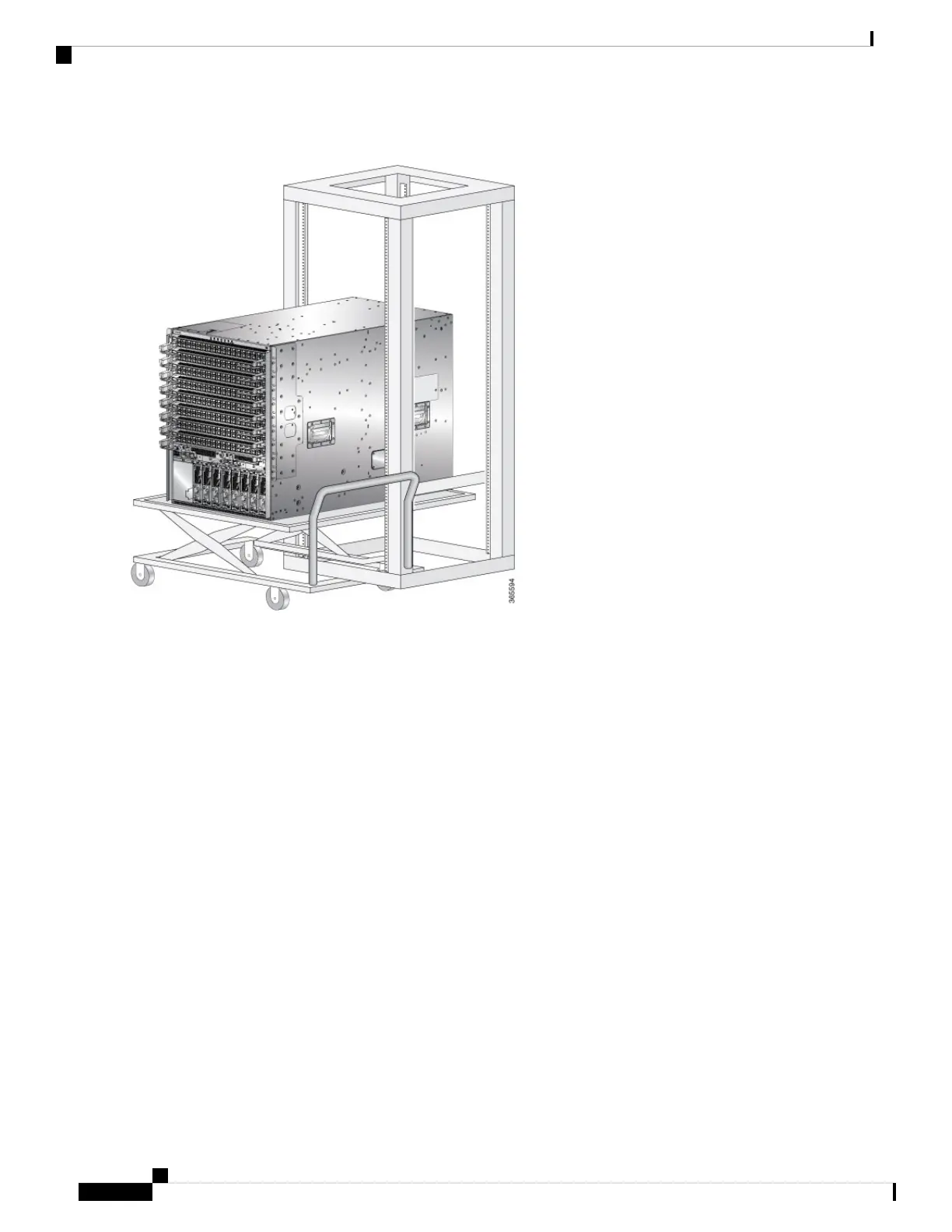

Figure 12: Example - Use Scissor Lift to Position Chassis Rack
Step 3 Push the chassis halfway onto the rack or cabinet.
Use at least two persons to push the chassis onto the bottom-support rails and one person to guide the chassis down the
center of the rails. Push the lower half of the front side of the chassis so that the back side enters the rack first, and push
until the chassis is halfway onto the rack (see the following figure). Ensure that the chassis does not get caught on any
of the expansion edges of the bottom-support rail.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
42
Install the Chassis
Mount Chassis Into the Rack
