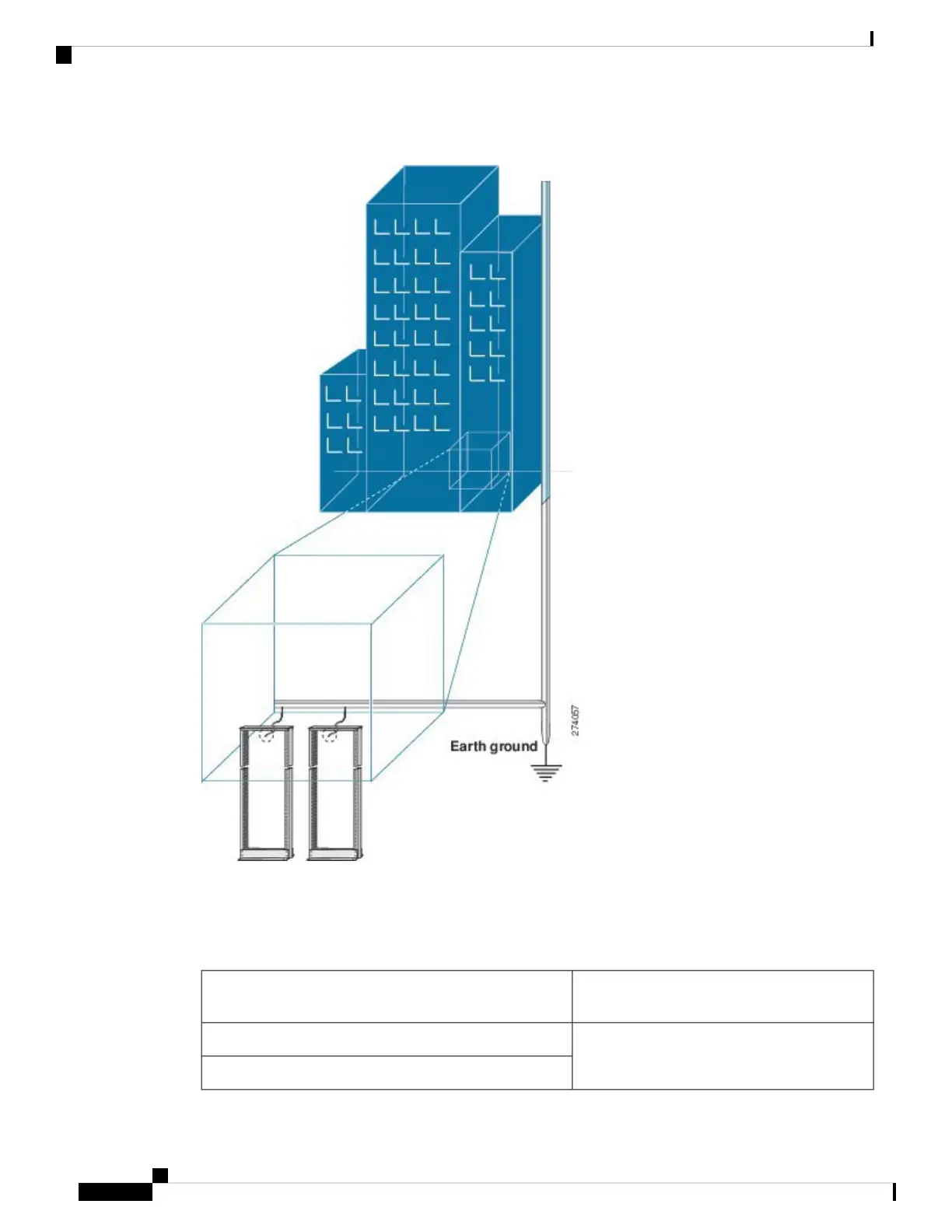

Figure 17: Building with Rack Room Connected to Earth Ground

Airflow for Site Planning

Table 5: Cisco NCS 5700 Airflow

Maximum System Airflow (CFM) at Maximum

System Temperature

Device

150NCS-57B1-5DSE-SYS

NCS-57B1-6D24-SYS

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

Prepare for Installation

Airflow for Site Planning

Table of Contents3
Cisco NCS 5700 Router Overview7
NCS 5700 Router Overview7
Field Replaceable Units8
Route Processor Card13
Modular Port Adapters13
Network Interfaces17
Specification20
Network Timing Interfaces20
Gnss21
GNSS Module RF Input Requirements22
Transceiver and Cable Specifications23
Console23
Online Insertion and Removal23
Prepare for Installation25
Review Installation Roadmap25
Review Safety Guidelines26
Cautions and Regulatory Compliance Statements for NEBS26
Review Installation Guidelines27
Clearance Requirements28
Airflow Directions29
Procure Tools and Equipment30
Prepare Your Location31
Accessory Kits for Fixed Port Routers31
Airflow for Site Planning32
Prepare Yourself33
Prepare Rack for Chassis Installation35
Install the Chassis37
Rack Types37
Rack Mount the Chassis39
Rack Mount the NCS-57B1 Chassis in a 2-Post Rack40
Rack Mount the NCS-57C3-MOD Chassis in a 2-Post Rack42
Rack-Mount the NCS-57B1 Chassis in a 4-Post Rack44
Rack Mount the NCS-57C3-MOD Chassis in a 4-Post Rack Using Sliders47
Ground the Chassis59
Connect AC Power to the Chassis61
Connect DC Power to the Chassis63
Power Supply Unit Input and Output Ranges65
Connect Router to the Network67
Port Connection Guidelines67
Connect to the Console Port68
Create the Initial Router Configuration71
Connect to the Management Ethernet Port73
Accessing RJ-45 Cable74
Install and Remove Transceiver Modules76
Install and Remove SFP28 and SFP+ Modules76
Bale Clasp SFP+ Module78
Install a Bale Clasp SFP+ Module78
Remove a Bale Clasp SFP+ Module79
Install and Remove QSFP-DD Transceiver Modules81
Install and Remove QSFP+/QSFP28 Transceiver Modules83
Overview83
Required Tools and Equipment84
Installing the 40-Gigabit QSFP+ or 100-Gigabit Transceiver Module84
Attach the Optical Network Cable86
Removing the 40-Gigabit QSFP+ or 100-Gigabit QSFP28 Transceiver Module87
Disconnect Optical Ports from the Network88
Connect a Fiber-Optic Port to the Network88
Connect Interface Ports88
Connecting a Cable to the GNSS Antenna Interface89
Maintain Transceivers and Optical Cables91
Replace Chassis Components93
Replace Fan Modules and Fan Trays93
Replace Power Supply95
Remove the DC Power Supply Module96
Install the DC Power Supply Module97
Remove the AC Power Supply Module97
Install the AC Power Supply Module98
Replace a Route Processor Card99
Handling Modular Port Adapters101
Installing and Removing Modular Port Adapters101
Online Insertion and Removal102
Modular Port Adapter Installation and Removal103
Verify Chassis Installation105
Verify Device Installation105
Leds107
Chassis Leds107
Route Processor Card Leds109
Port Status Leds111
Port Status LED Display111
MPA Leds112
Management Port Leds113
Fan Module and Fan Tray LED114
Power Supply LED115
System Specification117
Weight and Power Consumption117
Environmental Specifications117
RJ-45 Connectors117
Management Pinouts118
Time-Of-Day Port Pinouts118
USB Flash or MEM Port Pinouts119
Console Port Pinouts119
Power Supply Power Cord Specifications120
