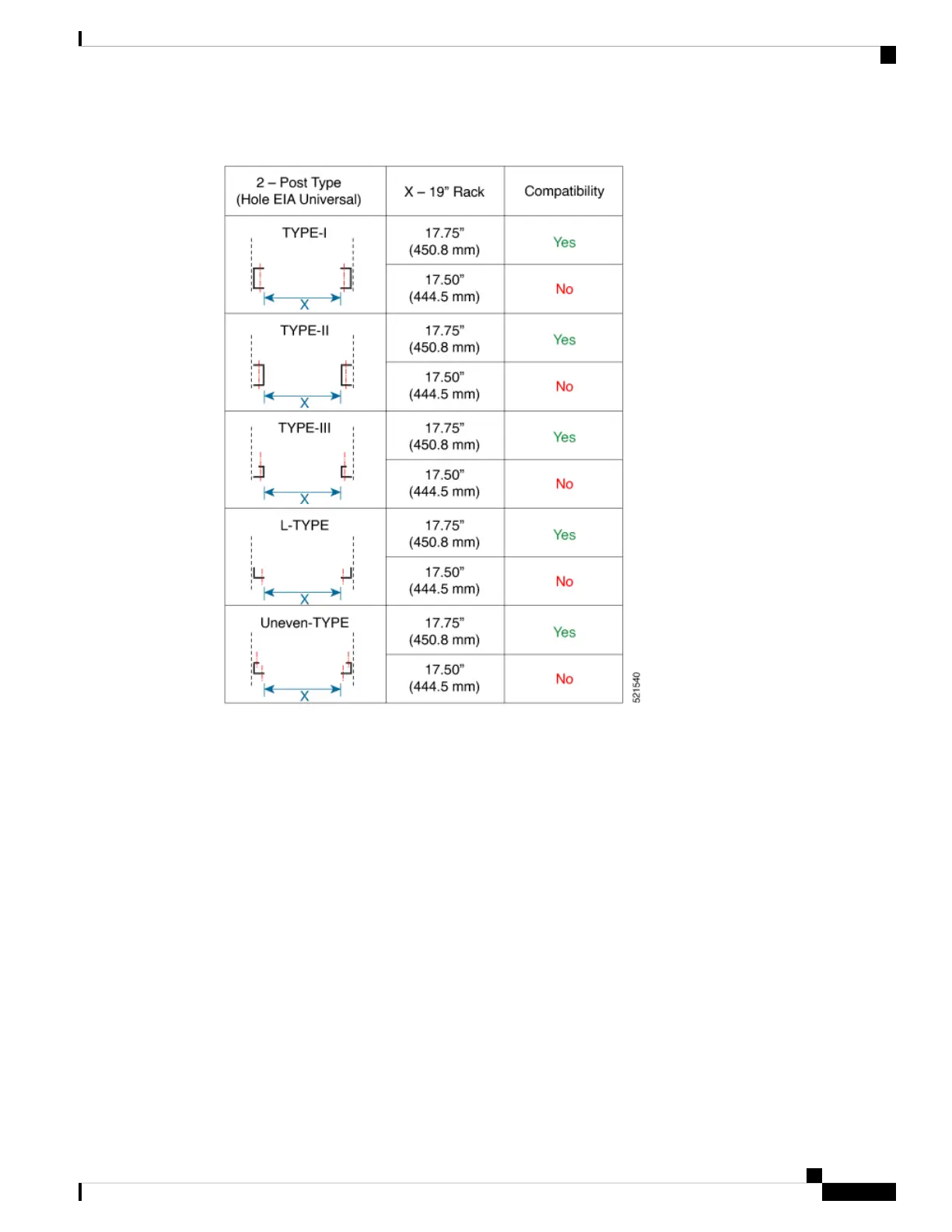

Figure 22: Two Post Rack Type
Rack Mount the Chassis
The chassis can be mounted on a 2-post or a 4-post rack.
• Rack Mount the NCS-57B1 Chassis in a 2-Post Rack, on page 34 — Contains the procedure for mounting
the NCS-57B1-6D24-SYS and NCS-57B1-5DSE-SYS chassis in a 2-post rack.
• Rack Mount the NCS-57C3-MOD Chassis in a 2-Post Rack, on page 36 — Contains the procedure for
mounting the NCS-57C3-MOD-S and NCS-57C3-MOD-SE-S chassis in a 2-post rack.
• Rack-Mount the NCS-57B1 Chassis in a 4-Post Rack, on page 38 — Contains the procedure for mounting
the NCS-57B1-6D24-SYS and NCS-57B1-5DSE-SYS chassis in a 4-post rack.
• Rack Mount the NCS-57C3-MOD Chassis in a 4-Post Rack using Sliders, on page 41 — Contains the
procedure for mounting the NCS-57C3-MOD-S and NCS-57C3-MOD-SE-S chassis in a 4-post rack
using a sliders.
