Cisco NCS 5700 Series User Manual

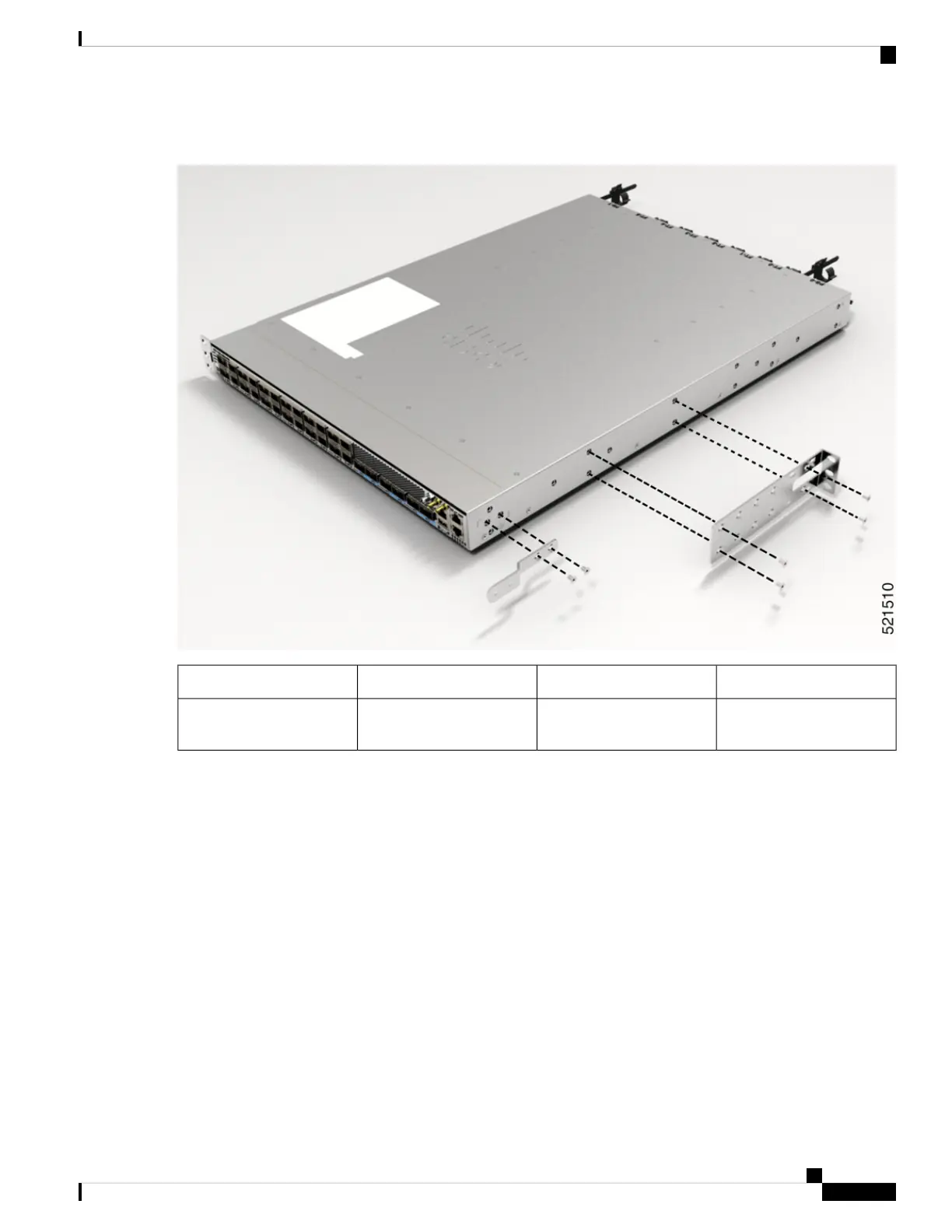

Figure 23: Rack-Mount Brackets
Cable guide2Rack-mount brackets1
M4 x 6 Phillips counter sink
screws
3
Step 2 Install the router onto the 2-post rack as follows:
a) With two people, lift the router into position between the two rack posts.
b) Move the router until the rack-mount brackets come in contact with two rack posts.
c) Hold the chassis level while the second person inserts two screws (12-24 or 10-32, depending on the rack type) in
each of the two rack-mount brackets (using a total of four screws) and into the cage nuts or threaded holes in the
vertical rack-mounting rails.
d) Tighten the 10-32 screws to 20 in-lb (2.26 N.m) or tighten the 12-24 screws to 30 in-lb (3.39 N.m).
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
35
Install the Chassis
Rack Mount the NCS-57B1 Chassis in a 2-Post Rack
