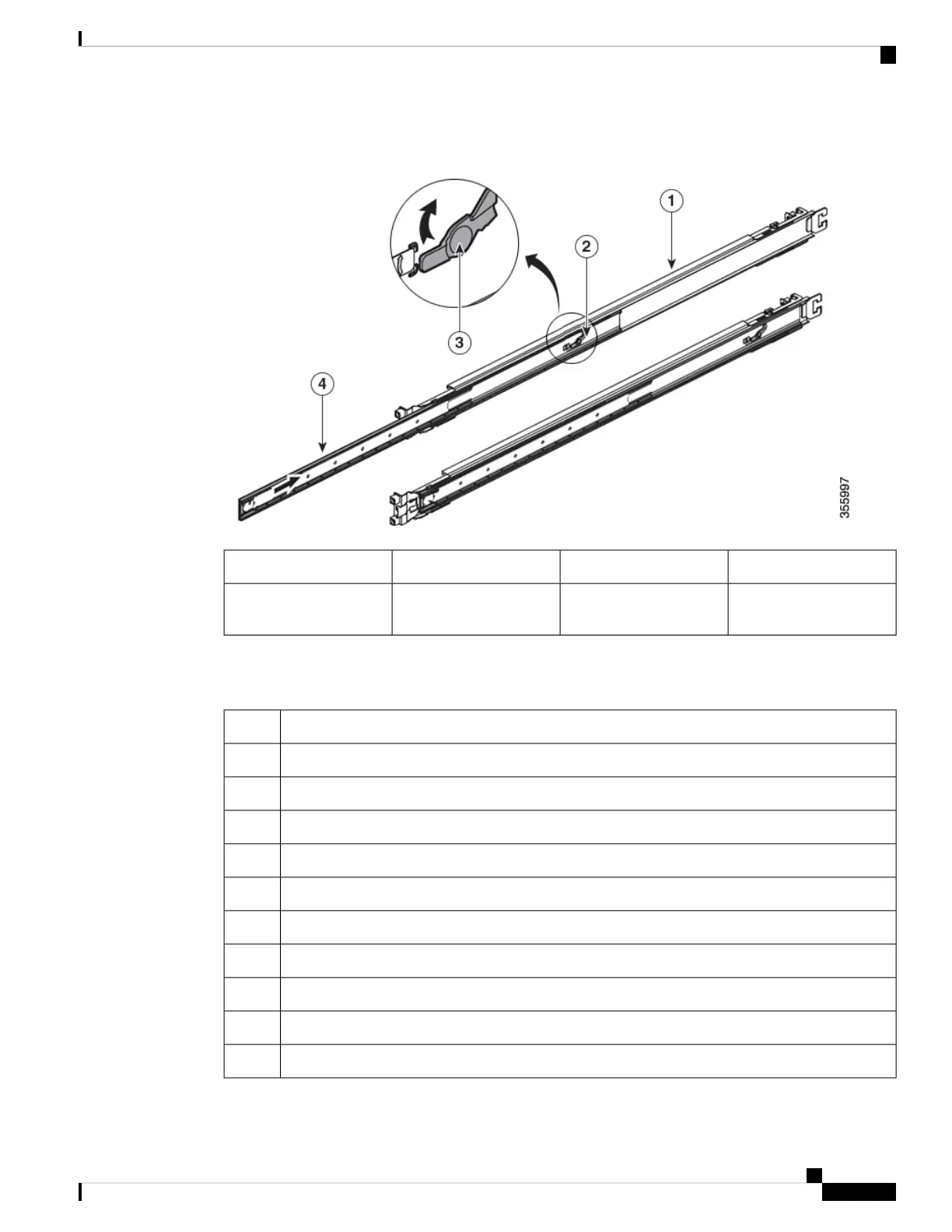

Figure 29: Slider Assembly
Middle Slider Member2Outer Slider Member1
Inner Slider Member4Unlock Feature on the
Middle Slider Member
3
The following table lists the items that are contained in the Cisco NCS 57C3-MOD Router rack-mount kit.
Table 10: Router Rack-Mount Kit
Part DescriptionQuantity
Rack-mount brackets2
Rack-mount slider rails2
M4 x 8-mm Phillips counter sink screws8
M4 x 8-mm Phillips pan-head screws2
Grounding lug1
(Only NC55-2RU-ACC-SL1) M4 x 10-mm Phillips pan-head screws6
(Only NC55-2RU-ACC-SL2) M4 x 8-mm Phillips flat-head screws6
(Only NC55-2RU-ACC-SL2) washers4
(Only NC55-2RU-ACC-SL2) 10-32 counter sink screws4
(Only NC55-2RU-ACC-SL2) 9.1 mm rack mount pins4
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
43
Install the Chassis
Rack Mount the NCS-57C3-MOD Chassis in a 4-Post Rack using Sliders
