Cisco NCS 5700 Series

Step 3 Place the cable through the opening in the cable clamp.
Step 4 Slide the cable clamp toward the plug.
Step 5 Close the cable clamp on the shoulder of the power cable to secure the power cable.

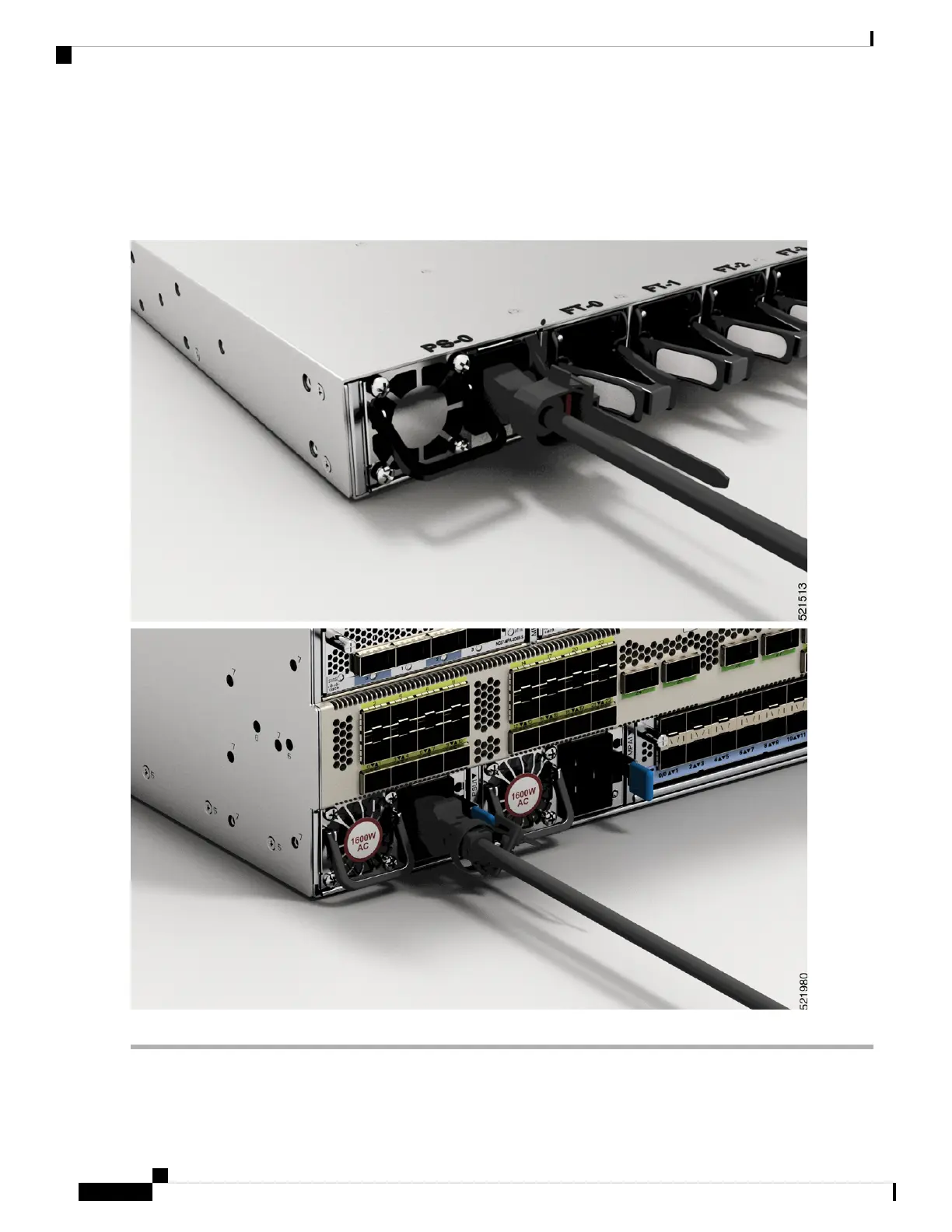

Figure 44: Cable Clamp: Examples
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
56
Install the Chassis
Connect AC Power to the Chassis
