StatusColorLED
The port is active.
GreenLink (for
each port)
The port is disabled by the operator or is not initializing.Orange
The port is faulty and disabled.Flashing orange
The port is not active or the link is not connected.Off
Management Port LEDs
The Management Port LEDs are located at the right-side on the front panel of the chassis.

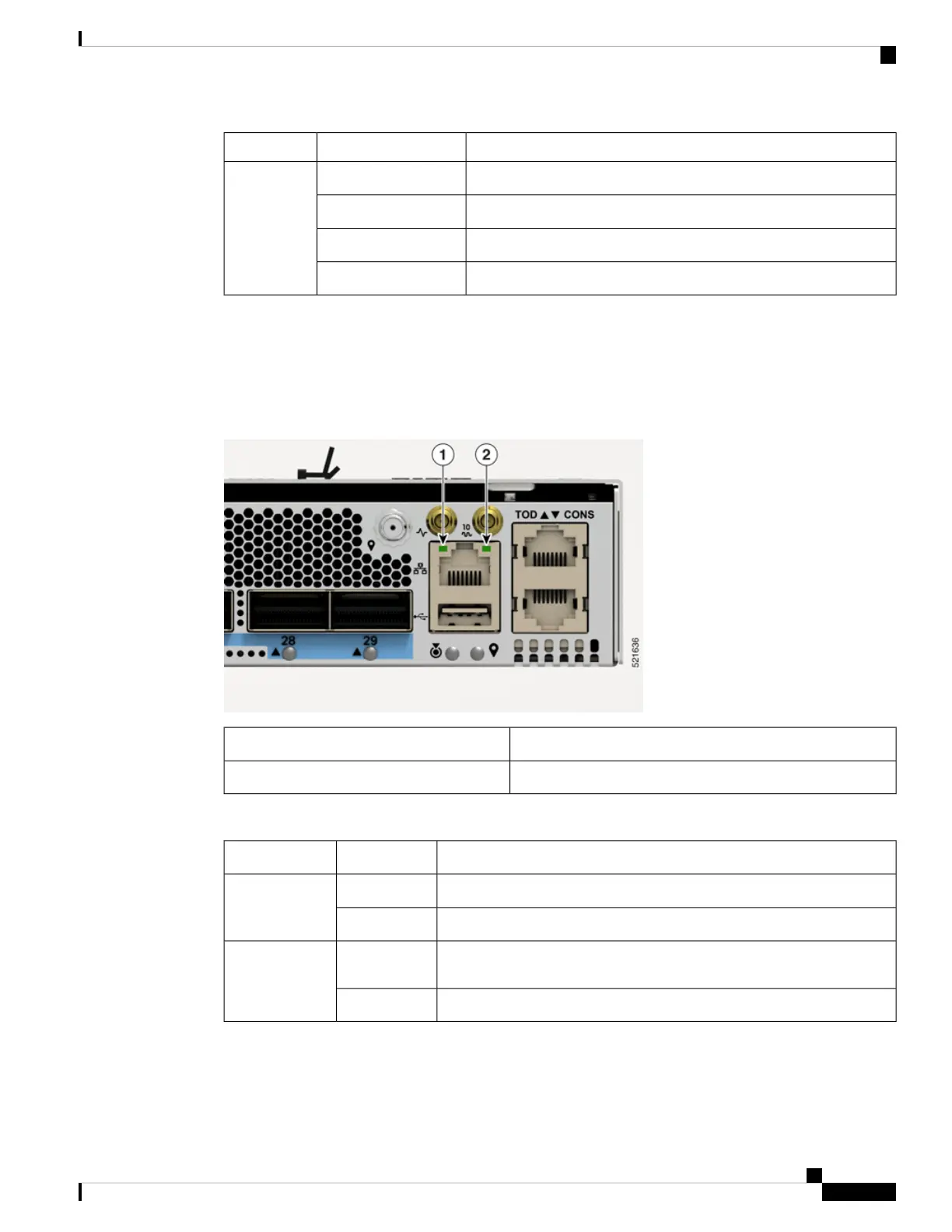

Figure 80: Management Port LEDs
Port Activity1
Port Link2
Table 18: Management Port LEDs Description
StatusColorLED
The ethernet link is up and operational.GreenPort Activity
The ethernet link is down.Off
The port is either receiving or transmitting packets.
Green
Blinking
Port Link
No packets are being received or transmitted.Off
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
107
LEDs
Management Port LEDs
