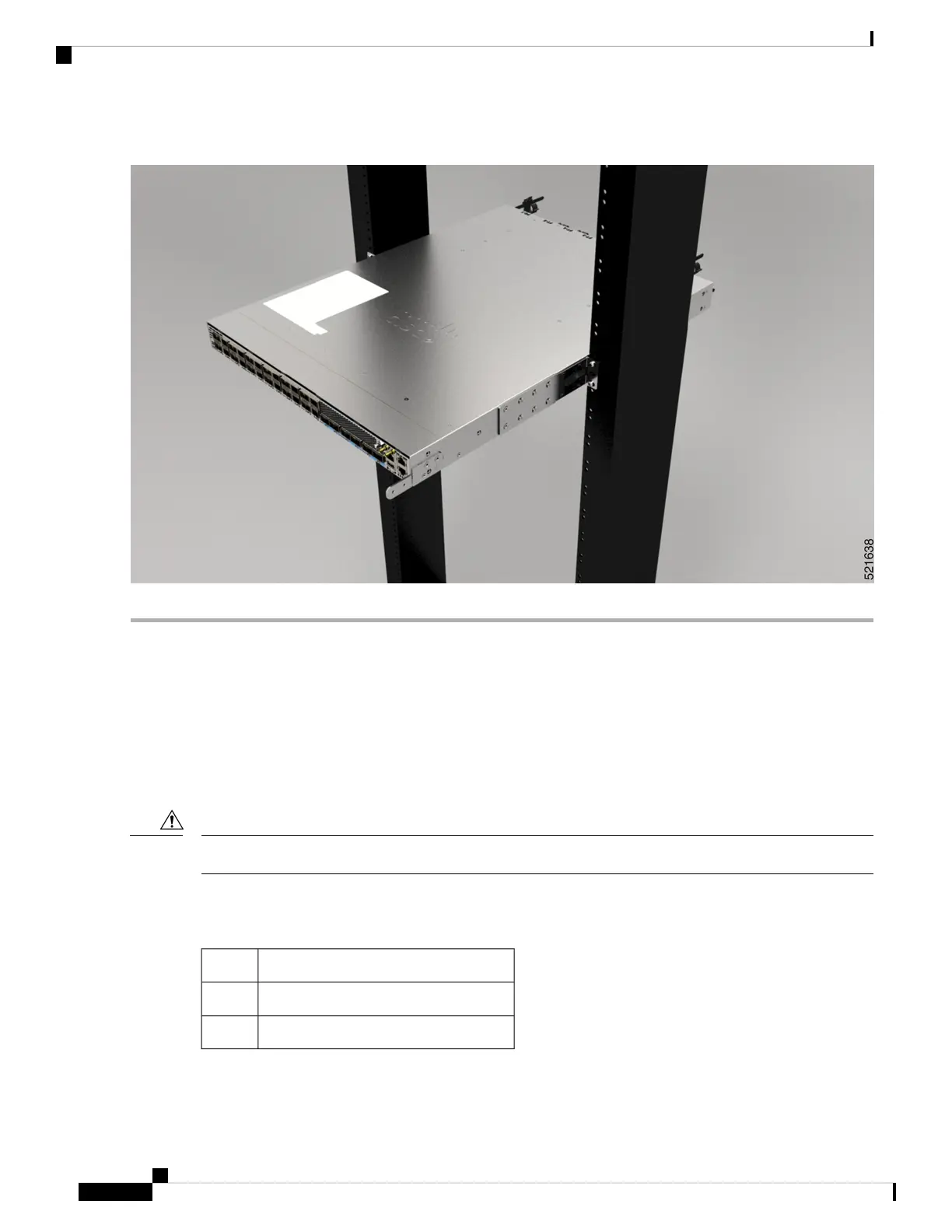

Figure 24: 2-Post Rack Mount
Rack Mount the NCS-57C3-MOD Chassis in a 2-Post Rack
This section describes how to use the rack-mount kit provided with the chassis, to install the following chassis
into a cabinet or a 2-post rack:
• NCS-57C3-MOD-S
• NCS-57C3-MOD-SE-S
If the rack is on wheels, ensure that the brakes are engaged or that the rack is otherwise stabilized.
Caution
The following table lists the items contained in the rack-mount kit provided with the routers.
Table 8: Router Rack-Mount Kit
Part DescriptionQuantity
Rack-mount brackets2
M4 x 6-mm Phillips counter sink screws14
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
36
Install the Chassis
Rack Mount the NCS-57C3-MOD Chassis in a 2-Post Rack
