Fan Module and Fan Tray LED

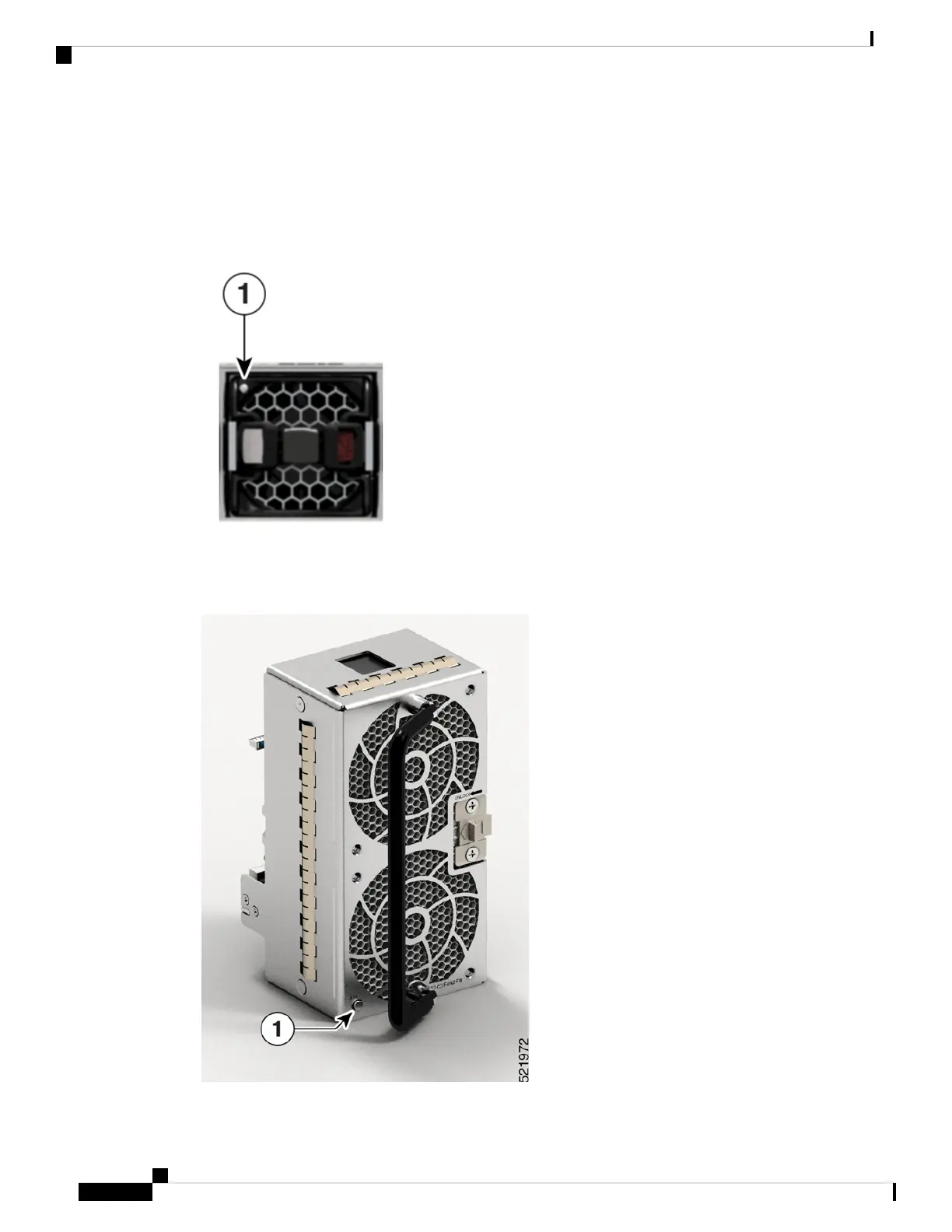

The NCS-57B1 fan module LED is located on the top-left corner of the module.
Figure 81: NCS-57B1 Fan Module LED
The NCS-57C3-MOD fan tray LED is located on the bottom-left corner of the module.
Figure 82: NCS-57C3-MOD Fan Tray LED
