Chapter 2 Installing the Cisco Nexus 6000 Series Switches
Removing Fan Shutters
Removing Fan Shutters
The Cisco Nexus 6004 systems do not need the fan shutter assembly in the chassis. To remove a fan
shutter from the system, follow these steps:
Step 1 Loosen the thumb screws and then remove all the fan trays.
Step 2 Hold the cross bar in the middle and pull out all the shutters. See Figure 2-4

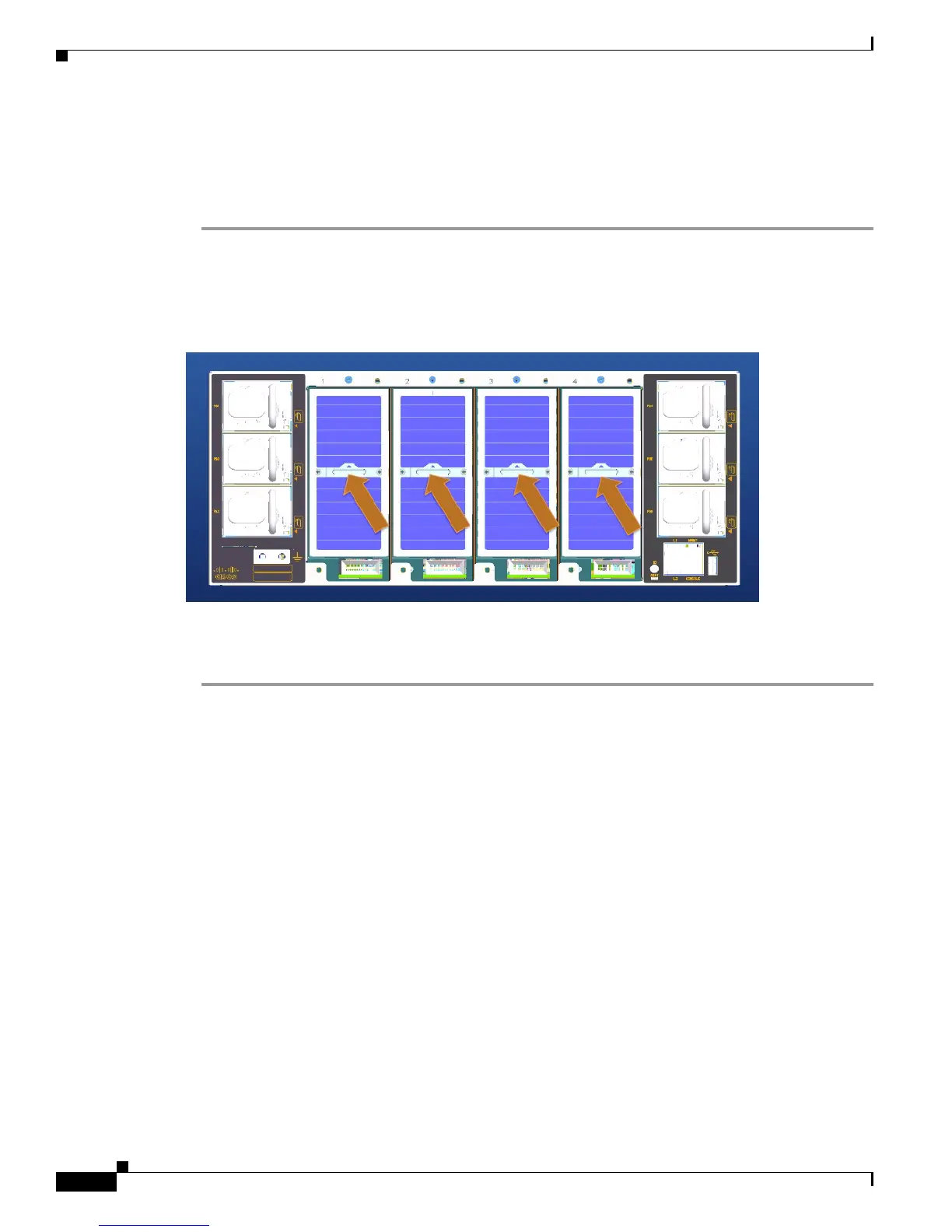

Figure 2-4 Fan Shutter Removal
Step 3 Put the fan trays back in and tighten the thumbscrews.
