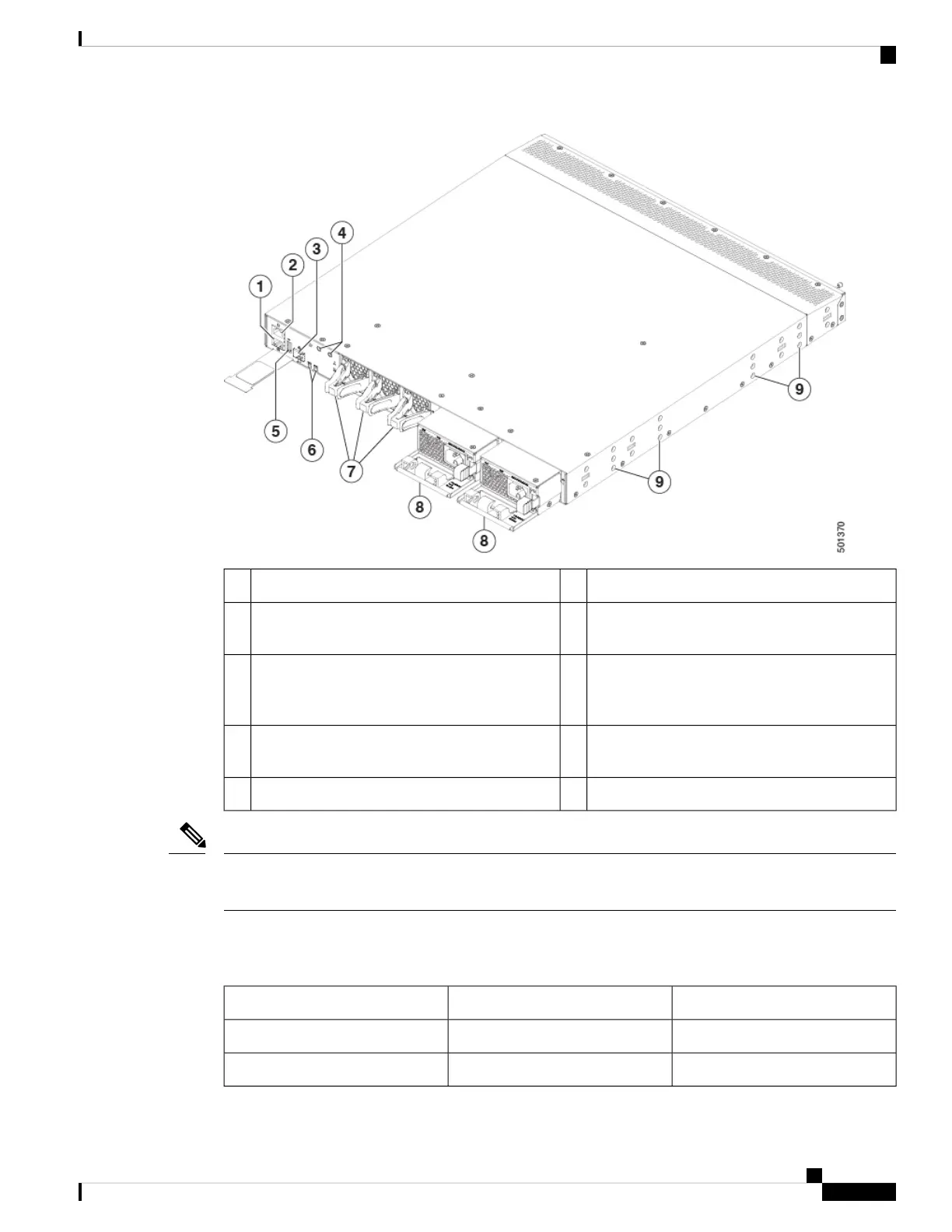

Chassis LEDs (Beacon [BCN] and Status [STS])6Management port (RJ-45 port)1
Fan module (3) with fan slot 1 on the left and fan
slot 3 on the right
7Console port (RS-232 port)2
Power supply (2) one used for operations and one
used for redundancy, with power supply slot 1
on the left and slot 2 on the right
8Management port (SFP port)3
Screw holes (6) for attaching rack mounting
brackets
9Grounding pad4
USB port5
USB support is limited to USB 2.0 devices that use less than 2.5 W (less than 0.5 A inclusive of surge current).
Devices, such as external hard drives, that instantaneously draw more than 0.5 A are not supported.
Note
Depending on whether you plan to position the ports in a hot or cold aisle, you can order the fan and power
supply modules with port-side intake or port-side exhaust airflow. To determine the airflow direction of the
modules installed in your switch, see the following table.
Port-Side Exhaust Airflow ColoringPort-Side Intake Airflow ColoringReplaceable Modules
BlueBurgundyFans
BlueBurgundyAC power supplies
Cisco Nexus 9348GC-FXP ACI Mode Hardware Installation Guide
3
Overview
